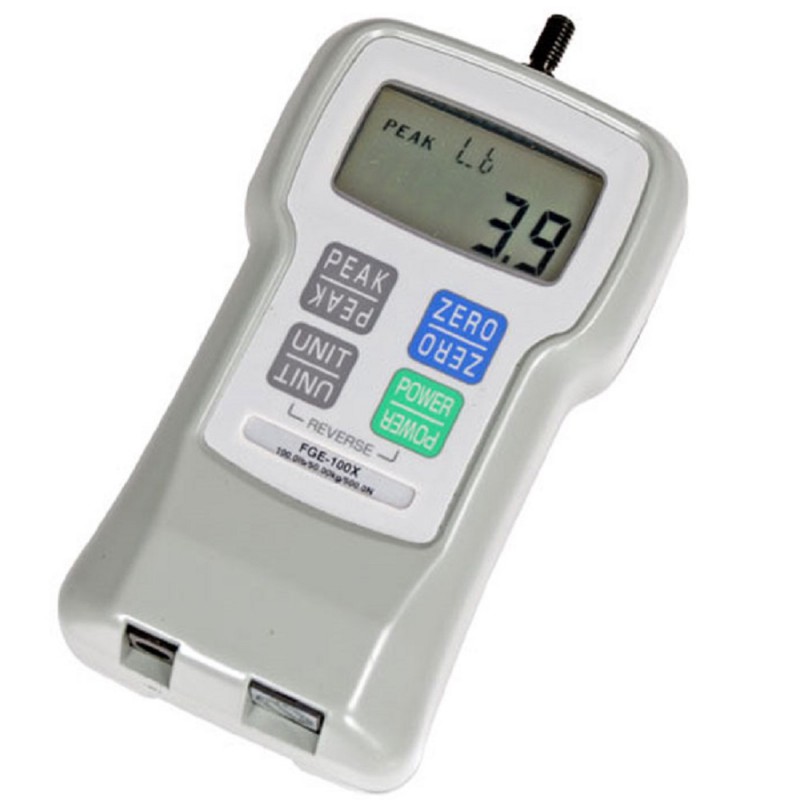

FGE Hand-held Digital Force Gauge


8 Ranges up to 100lbs
Measures Push / Pull Force


The microprocessor-controlled, digital FGE Digital Force Gauges precisely measure push/pull forces up to 100 pounds with an accuracy of ± 0.2%.

They are extremely compact for convenient hand-held use and include provisions for mounting on a test stand for bench top use.

Optional Handle for FGE Force Gauge. FG-HANDLE


Features
  • Includes Traceable Calibration Certificate
  • Accuracy ± 0.2%
  • Display can be reversed for inverted use
  • 1 Year Warranty
  • Display "real-time" or "peak" force
  • 200% overload protection
  • User-selected units of Pounds, Kilograms or Newtons

Tension Ranges
ModelRanges Resolution
FGE-0.5XY 8.00 oz
200.0 g
2 N
0.01 oz
0.1 g
0.001 N

FGE-1XY 16.00 oz
500.0 g
5 N
0.01 oz
0.1 g
0.001 N

FGE-2XY 2.000 lb
1000 g
10 N
0.001 lb
1 g
0.01 N

FGE-5XY 5.000 lb
2.000 Kg
20 N
0.001 lb
0.001 kg
0.01 N

FGE-10XY 10.00 lb
5.000 Kg
50N
0.01 lb
0.001 kg
0.01 N

FGE-20XY 20.00 lb
10.00 Kg
100 N
0.01 lb
0.01 kg
0.1 N

FGE-50XY 50.00 lb
20.00 Kg
200 N
0.01 lb
0.01 kg
0.1 N

FGE-100XY 100.0 lb
50.00 Kg
500 N
0.1 lb
0.01 kg
0.1 N


Dimensions
Dimensions Digital Force Gauges FGE

Note:
FGE / FGV-0.5X & FGE / FGV-1X - Shaft thread is M4
FGE / FGV-2X & Over - Shaft thread is M6

Complete Kit
Includes
  • Force Gauge,
  • AC Adapter/Charger,
  • 6 Attachments;Hook, Flat Head, Notched Head, Hanger, Cone head & Extension rod
  • In a foam fitted carrying case


Standard Attachments

Related Products

Cic-Force Calibration Force Gauge


  • Short turnaround
  • Exclusively in accordance with Deutscher Kalibrierdienst (DKD) working standards, class F1; calibration-no: 19026 - 07
  • Possibility to adjust and repair

More details

Cic-Force Calibration Force Gauge

Specifications
Accuracy
±0.2% full scale
Display
4-Digit LCD, 12mm high. Reversible by the push of a button. Minus sign for tension
Display Update
0.05, 0.1, 0.2, 0.3, 0.5, 1 sec
Sampling Rate
1000 times per second
Overload Protection
200% of full scale
Power
Rechargeable Ni-Cad battery or AC through adapter/charger
Auto Power Shut-Off
Yes (not active if adapter/charge is in use)
Battery Life
12 hours (when fully charged)
Recharge Time
Approximately 18 hours when fully discharged
Dimensions
5.1" L x 2.9" W x 1.5" H (130 mm x 75 mm x 38 mm)
Weight
1 lb (450 g)
Approvals
CE approved
Warranty
1 Year

Buy Now
Products

Product name
Price
Quantity
FGE-0.5XY - FGE Digital Force Gauge Complete Kit
€ 623,00
FGE-1XY - FGE Digital Force Gauge Complete Kit
€ 623,00
FGE-2XY - FGE Digital Force Gauge Complete Kit
€ 623,00
FGE-5XY - FGE Digital Force Gauge Complete Kit
€ 623,00
FGE-10XY - FGE Digital Force Gauge Complete Kit
€ 623,00
FGE-20XY - FGE Digital Force Gauge Complete Kit
€ 623,00
FGE-50XY - FGE Digital Force Gauge Complete Kit
€ 623,00
FGE-100XY - FGE Digital Force Gauge Complete Kit
€ 623,00

Accessories

Product name
Price
Quantity
FG-HANDLE - Handle for FGE-XY and FGV-XY Gauges
€ 141,00
FG-09V120UC - Spare / Replacement Power Adapter for FG Force Gauges
€ 36,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request
