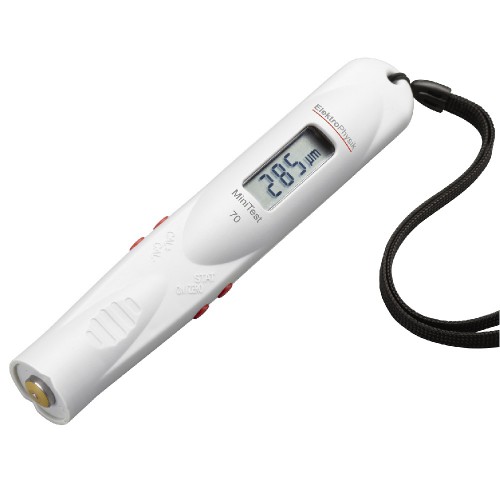

The MiniTest 70 is a pocket sized, versatile and accurate thickness gauge with built-in sensor. Especially designed for easy operation, this gauge is the ideal tool to measure any non-magnetic coatings on steel and/or any insulating layers on non-ferrous metals.
Coating thickness gauges designed for measurement on non-ferrous metals can measure insulating coatings such as paint, enamels, anodic films, etc, on non-ferrous metal bases such as aluminum, copper, brass, etc.
The spring-mounted sensors are equipped with wear-resistant sensor poles and ensure durability even when used for measurements on rough and abrasive substrates.
With coating thickness gauges designed for measurement on ferrous metals, non-magnetic coatings such as paint, enamels, chrome, etc., can be measured on ferromagnetic bases such as constructional steel, car bodies, etc.
The MiniTest 70 Series provides accurate, non-destructive coating measurements on steel and non-ferrous metals (FN model). Also, the FN model is equipped with a dual sensor for automatic identification of the substrate. According to the substrate, it adjusts to the appropriate measuring principle: magnetic induction or eddy currents principle.
Both models are provided with a quick statistics mode to calculate the number of readings, average, standard deviation and min./ max. value which makes the MiniTest 70 ideal for on-site operations.
2 Available Models:
MiniTest 70F - Ferrous Only Model
MiniTest 70FN - Combination Ferrous & Non-Ferrous Model
± (1.5 μm + 3 % of reading) with 1-point calibration / ± (1.5 μm + 2% of reading) with 2-point calibration
|Measuring Range||MiniTest 70F|
0 … 3 mm/120 mils
F: 0 … 3 mm/120 mils / N: 0 … 2.5 mm/100 mils
|Measuring Principle||MiniTest 70F|
magnetic induction/ eddy currents
|Signal Processing||Sensor integrated 32-bit signal processing (SIDSP®)|
|Accuracy||± (1.5 μm + 3 % of reading) with 1-point calibration / ± (1.5 μm + 2% of reading) with 2-point calibration|
|Repeatability||± (1 μm + 1 % of reading) / ± (0.04 mils + 1% of reading)|
|Low range resolution||0.5 μm; 0.02 mils|
|Minimum curvature radius convex||5 mm; 0.2”|
|Minimum curvature radius concave||40 mm; 1.60”|
|Minimum measuring area||Ø 30 mm ; 1.20”|
|Minimum substrate thickness||F: 0.5 mm; 0.02” / N: 0.04 mm; 0.0016”|
|Measuring units||Metric/Imperial switchable|
|Calibration modes||1-point calibration, 2-point calibration|
|Statistics||n, x—, s, Min, Max|
|Operating temperature range||-10°C … +60°C, 14°F…140°F|
|Storage temperature range||-20°C … +70°C, -4°F…158°F|
|Power supply||1 x AA (Mignon)-battery|
|International standards||DIN EN ISO 1461, 2064, 2178, 2360, 2808, 3882, ASTM B 244, B 499, D7091, E 376|
|Dimensions||approx. 157 mm length, Ø 27 mm; 5.2” length, Ø 1.06”|
|Weight incl. battery||approx. 80 g, 2.8 oz|
The MiniTest 70 Coating Thickness Gauge is delivered as a complete kit with:
