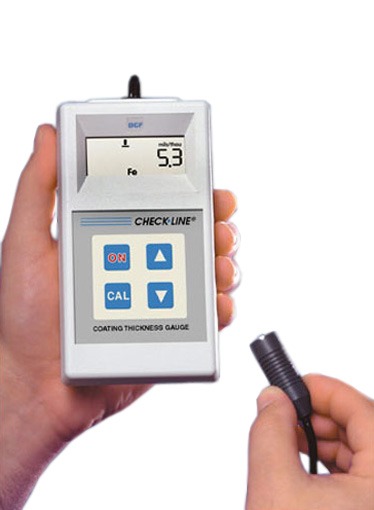

DCF-900 Low Cost Coating Thickness Gauge - Measures Coatings On Steel

The DCF-900 Low Cost Coating Thickness Gauge - Measures Coatings On Steel is no longer available and has been replaced by MiniTest 650.
Click here to see the MiniTest 650.

Measuring Range 0.1-40.0 mils (1-999 µm)

DCF-900 measures the thickness of plating,paint, coatings and galvanizing on iron or steel...more accurately, dependably and economically!

  • Measures to 0.01 mil (0.1 µm), automatically rounding off to the nearest 0.1 mil (1 µm).
  • Dependable accuracy over the entire range of the gauge, not just at "calibration check" points.
  • Calibration to ISO standards is available upon request.
  • Continuous reading update detects soft coatings as probe tip "sinks" into them.
  • Keypad-selectable English or metric units.
  • The DCF-900 and include the gauge and probe, a bare test plate, two precision calibrations shims & instructions, all in a foam-fitted carrying case.
  • Remote probe permits easy access for difficult, hard-to-reach places.
  • Longer lasting, driftless calibration Set it and forget it for long periods of time and from job to job
  • Very reliable operation Consistent, repeatable measurements


NIST Certified Test Plates

  • Ferrous (Fe) & Non-Ferrous (NFe) versions are offered
  • Set includes three (3) coated plates of certified thickness plus one (1) uncoated zero plate in a durable vinyl folder.
  • Each plate is marked in both mils and microns
  • Each plate measures 1.375" x 1.375"

More details

 NIST Certified Test Plates 125808

3000-IRP Portable infra-red thermal data printer

  • Archivable up to 5 years, if dryly stored without UV exposure
  • Integrated IrDA infrared interface
  • Speed of printing: 16 lines/sec

More details

3000-IRP Portable infra-red thermal data printer 126034

Commercial Grade Shim Set

    More details

     Commercial Grade Shim Set 126857

    Cps Certified Shim Set

    • Calibration Foils for Coating Thickness Gauges

    More details

    Cps Certified Shim Set 126033

    Range: 0.1-40.0 mils (0-999 µm)
    Resolution: 0.1 mil (1 µm)
    Accuracy: 0-10 mils: ±0.1 mil
    10-40 mils: ±1% of reading
    Probe: Monopolar, magnetic induction, 0.4" (10 mm) dia., spring-loaded, with V-notched shell and 28" (70 cm) cable
    Battery/Life: 9 V alkaline/approx. 6 months normal use, with auto shutoff after 90 seconds of non-use
    Dimensions: 5.7" x 3.1" x 1.5"
    (145 x 79 x 38 mm)
    Weight: 9 oz. (250 g)
    Temperature Limits: Material: 15 to 140° F (-10 to 60° C)
    Ambient: 32 to 125° F (0 to 50° C)
    Warranty: One (1) year

    Measuring Limits
    Minimum Radius for Convex Surfaces Minimum Radius for Convex Surfaces 0.375" (9.5 mm)
    Minimum Radius for Concave Surfaces 2.5" (63.5 mm)
    Minimum Radius for Concave Surfaces Minimum Headroom 2.5" (63.5mm)
    Minimum Sample Diameter Minimum Sample Diameter 0.5" (13 mm)
    Minimum Substrate Thickness - F Minimum Substrate Thickness - F 0.020"
    Minimum Substrate Thickness - NFe NA

    Complete Kit
    The DCF-900 is supplied as a complete kit including gauge, ferrous zero plate, 2 plastic test shims and instruction manual in a foam fitted, hard plastic carrying case.
