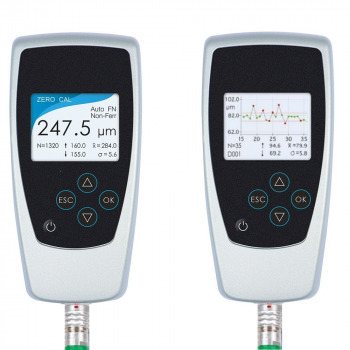

3000PRO Series Professional Coating Thickness Gauge


Made in GermanyInterchangeable Probe!

3 Models
DCF-3000PRO
- Ferrous Only Model
DCN-3000PRO - Non-Ferrous Only Model
DCFN-3000PRO - Combination Ferrous & Non-Ferrous Model

Measuring Range: 0-1500µm (0-60 mils)

The new Check-Line 3000PRO Series coating thickness gauge is a multifunctional fully menu driven gauge for fast, professional and precise coating thickness measurement for:

  • paint and electroplated coatings on iron and steel
  • paint and anodising coatings on non-ferrous metals and on austenitic stainless steels

The recording and further processing of stored measurement data are just as easy to carry out as the measurement itself. The file names can be alphanumerically assigned via an input panel and managed in a data memory.

Eight (6) separate probes are offered for a wide variety of applications.



Features
  • Automatic identification of the substrate
  • Calibration-free measurements (calibration only in exceptional cases)
  • Highly wear-resistant measuring poles made of carbide metal
  • Special probes for unusual measurement tasks
  • Precise measurements on different geometries thanks to simple calibration methods
  • Safe use even for special applications such as sand-blasted surfaces, small parts and curved surfaces
  • Scan mode for the quick recognition of coating thickness variations on large surfaces, including display of minimum and maximum readings
  • Display backlight for bad ambient lighting conditions
  • Online statistics with all statistical parameters
  • Easy to operate, well-known from mobile phones
  • Free choice of language – German, English, French
  • Extensive data memory for the management of different measurement series
  • Alphanumerical file names can be individually stored for every measurement task
  • Infrared interface for wireless data transfer to printer and PC
  • Includes FREE software for transferring data to a PC including histogram function
  • NIST Certificate Included at no additional cost

Accessories

Cps Certified Shim Set


  • Calibration Foils for Coating Thickness Gauges

More details

Cps Certified Shim Set 126033

3000-IR Infrared Adapter - 3000-IR - USB or Serial (RS232)


  • For data transfer to a standard PC (RS232) or printer (RS232).
  • The 3000-IR is self-powered by the RS-232 (serial) or USB port
  • Meets IrDA 1.0 physical specifications

More details

3000-IR Infrared Adapter - 3000-IR - USB or Serial (RS232) 126035

3000-IRP Portable infra-red thermal data printer


  • Archivable up to 5 years, if dryly stored without UV exposure
  • Integrated IrDA infrared interface
  • Speed of printing: 16 lines/sec

More details

3000-IRP Portable infra-red thermal data printer 126034

3000-PTS Coating Thickness Gauge Test Stand


  • Spring loaded lever for fast & precise travel
  • It's Compact size and light weight make it an Ideal test stand for all workplaces

More details

3000-PTS Coating Thickness Gauge Test Stand 126212

Special Models





The DCFN-3000PRO-90 is a special puprose model coating thickness gauge. It is specially designed for tube ID measurements on iron/steel and non-ferrous metals with a minimum tube thickness of 12 mm.


The DCF-3000PRO-10 is a special puprose model coating thickness gauge. It is specially designed for ID measurements on iron/steel
up to a thickness of 10 mm.


Measuring Limits
Minimum Radius for Convex Surfaces Minimum Radius for Convex Surfaces 0,08" (2 mm)
Minimum Radius for Concave Surfaces 0,2 " (5 mm)
Minimum Radius for Concave Surfaces Minimum Headroom 3,5 "(90 mm)
Minimum Sample Diameter Minimum Sample Diameter 5mm x 5mm
Minimum Substrate Thickness - F Minimum Substrate Thickness - F 8 mils (0,2 mm)
Minimum Substrate Thickness - NFe 2 mils (50 µm)

Resolution Table
Standard probe & and PRO-90° probe
Mils
0.00 - 9.99 mils 0.01 mils
10.00 - 24.98 mils 0.02 mils
25.00 - 49.95 mils 0.05 mils
50.0 - 99.9 mils 0.1 mils

Microns (µm)
0.0 - 99.9 µm 0.1 µm
100.0 - 249.8 µm 0.2 µm
250.0 - 499.5 µm 0.5 µm
500 - 999 µm 1 µm
1.000 - 1.998 mm 0.002 mm

Specifications
Gauge versions: DCF-3000PRO:
for measurements on iron/steel
DCN-3000PRO:
for measurements on non-ferrous metals
DCFN-3000PRO:
for measurements on iron/steel and non-ferrous metals
DCFN-3000PRO-90:
for tube ID measurements on iron/steel and non-ferrous metals
DCF-3000PRO-F10:
for measurements on iron/steel up to 10mm
Measuring principle: Magnetic induction (F version);
Eddy current principle (N version)
Measuring range: 3000PRO & 3000PRO-FN90: 0 - 1500 µm
3000PRO-F10: 0 - 10.000 µm
Tolerance: ± (0.7 µm/0.04 mils + 1% of reading)
Resolution: Refer To Table Above
Display: High-resolution color display backlight
Minimum measurement area: 5 mm x 5mm (0.2” x 0.2”)
Minimum curvature radius: convex 2mm (0.08”)
concave 5mm (0.2”)
Minimum substrate thickness: 0.2mm (8 mils) for F-version
50 µm (2 mils) for N-version
Calibration methods: - Factory calibration: no calibration required for standard applications
- Zeroing (1-point calibration): measurements on small areas
- Zeroing and foil calibration (2-point calibration): increased measurement precision
- Two-foil calibration: especially for rough, sandblasted surfaces
- CTC: calibration on object with a layer, if zeroing is not possible
- Zero compensation: addition or reduction with a constant value on or off the measurement
Limit values: Selectable; optical and acoustic signal if limit value is exceeded
Scan mode: For continuous measurements; for the quick recognition of coating thickness variations;
with permanent display of minimum and maximum reading
Statistics: Single value statistics: n, mean x, s, kvar, min, max, cp, cpk of max. 10,000 measurements
Block value statistics: n, mean x, mean s, mean kvar , min, max, cp, cpk; block size 3 to 100 measurements
Data memory: 100,000 measurements in max. 500 selectable files; alphanumeric file names; saved measurements and statistical values ​​can be viewed individually
Interfaces: Bluetooth 4.0 USB 2.0
Menu: Multi-language menu-stucture (German, English, French (other languages ​​optional)
Protection class: IP 52 (protection against dust and dripping water)
Operating temperature: 0 °C tot 60 °C (storagetemperature -20 °C to +60 °C)
Surface temperature: –15 °C up to + 60 °C (standard) –15 °C up to + 150 °C or 300 °C (with optional high temperature foot)
Power supply: 2 batteries AA 2 NiMH rechargeable batteries AA (quick-charge-compatible) USB connection (USB2.0)
Housing/keypad: Protection class IP52 (protection against dust and dripping water)
Dimensions: 137 mm x 66 mm x 23 mm (HxBxD)
Probe: diameter 14 mm x 83mm
Weight: 223 g (incl. FN probe 1.5 and batteries), 148 g (gauge only)
Standards: DIN EN ISO, ASTM, BS
Warranty: 2 years

Complete Kit

The 3000PRO is supplied as a complete kit that includes:
- coating thickness gauge
- probe
- manufacturer's certificate
- zero plate
- 2 calibration foils
- 2 AA batteries
- soft pouch
- instruction manual
- basic statistics software
- rugged plastic carrying case

The DCF-3000PRO is supplied with a ferrous zero-plate
The DCN-3000PRO is supplied with a non-ferrous zero-plate
The DCFN-3000PRO is supplied with a ferrous and a non-ferrous zero-plate



Related Products

Cic-Coating Calibration Coating Thickness Gauge


  • Easy planning of calibration
  • Short turnaround
  • Possibility to adjust and repair
  • In accordance with DIN EN ISO 2178, 2360, 2808 and meets or exceeds the indicated accuracy.

More details

Cic-Coating Calibration Coating Thickness Gauge

Downloads

Buy Now
Products

Product
Price
Quantity
DCF-3000PRO Coating Thickness Gauge
€ 1.295,00
DCN-3000PRO Coating Thickness Gauge
€ 1.295,00
DCFN-3000PRO Coating Thickness Gauge
€ 1.595,00
DCFN-3000PRO-90 Coating Thickness Gauge
€ 2.195,00
DCF-3000PRO-F10 Coating Thickness Gauge
€ 1.975,00

Accessories

Product
Price
Quantity
3000-HTF High Temp. Ring for FX & Pro Probe (max 150 Celsius)
€ 35,00
3000-HTF-EXT High Temp. Ring for FX & Pro Probe (max 300 Celsius)
€ 240,00
3000-IR-RS232 IrDA Adapter RS232

3000-IR-USB IrDA Adapter USB
€ 119,00
3000-IRP Portable infra-red thermal data printer
€ 515,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1-3 days , Delivery time: 1-3 weeks , special order, request
