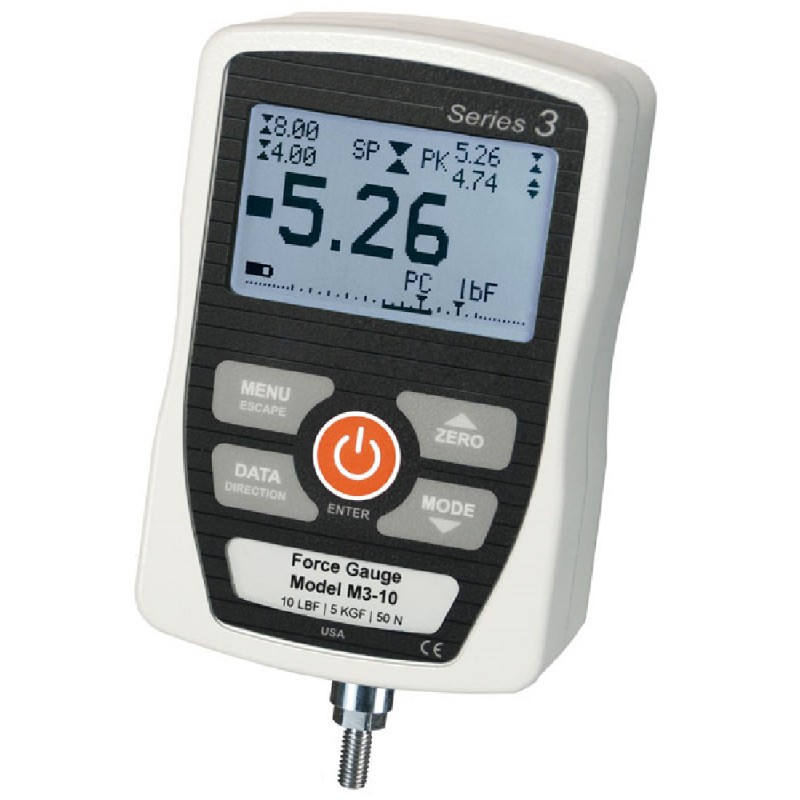

Series-3 Digital Force Gauge


Made in the USA

The Basic Series-3 Digital Force Gauges are developed for a wide range of applications.
With its compact design the Series-3 features a sampling rate of 2.000 Hz, supports 3 units of measurement (depending on the version) and can be connected to a PC via a USB connection.

The Series-3 Digital Force Gauges come in a 0,5 N to 2500 N range divided in 11 steps.

The backlit LCD display shows all the setting and current measurement information.
Series-3 Force Gauges can be used in combination with a wide range of test stands and gripping fixtures.

The Digital Mark-10 Series Force Gauge range is available in a variation of 5 gauges with each gauge type available in a scale of force ranges. Each type of gauge has its own specifications, the table below shows the main specifications of each gauge type.
All gauges types are equipped with a rechargeable battery, a back lit display and reversible aluminum housing.
The Series-# Digital Force Gauges are designed to be used for measuring tension and compression forces.

All gauges except for the Series-2 come with MESUR® Lite data acquisition software.
MESUR® Lite tabulates continuous or single point data. One-click export to Excel allows for further data manipulation.

Mark-10 Digital Force Gauges are versatile instruments, in general they are combined with additional equipment to a purposely build system to perform the required tasks.

We are happy to assist you in finding the most suitable configuration for your needs. Please contact us for more information.


Features
  • High-speed 2.000 Hz sampling rate
  • USB data output of continuous or individual data points
  • Ultra compact size
  • Large backlit graphic display
  • Programmable set points with pass/fail indicators
  • Live load bar graph with set point markers
  • Peak readings and set points always displayed
  • 3 selectable units of measurement
  • Configurable audio alarms and key tones
  • Includes NIST Traceable Calibration Certificate
  • 3 Year Warranty

Force Ranges, Capacity & Resolutions
ModellbFkgFgFN
M3-0120,12 x 0,0001-50 x 0,050,5 x 0,0005
M3-0250,25 x 0,0002-100 x 0,11 x 0,002
M3-050,5 x 0,0005-250 x 0,210 x 0,01
M3-22 x 0,0021 x 0,001-10 x 0,01
M3-55 x 0,0052,5 x 0,002-25 x 0,02
M3-1010 x 0,015 x 0,005-50 x 0,05
M3-2020 x 0,0210 x 0,01-100 x 0,1
M3-5050 x 0,0525 x 0,02-250 x 0,5
M3-100100 x 0,150 x 0,05-500 x 0,5
M3-200200 x 0,2100 x 0,1-1000 x 1
M3-500500 x 0,5250 x 0,2-2500 x 2

Load Cell Thread Specifications
ModelM3-012 – M3-100M3-200 - M3-500
Load Cell Thread #10-32 UNF5/16-18 UNC

LCD Display

Display


Reversible Housing

Reversible


Complete Kit

The Series-3 is supplied as a complete kit including:

  • force gauge
  • extension rod
  • hook
  • cone
  • chisel
  • V-Groove
  • flat
  • coupling (from M3-50 and up)
  • carrying case
  • USB cable
  • AC adapter
  • battery
  • resource CD (USB driver (MESUR Lite software, MESURgauge DEMO software, user's guide)
  • NIST-traceable certificate of calibration (data is available for an additional charge)


Included accessories
PictureAccessoryM3-012 - M3-20M3-50 - M3-100M3-200 - M3-500
Extension RodExtension RodG1024G1024G1031
ConeConeG1026G1026G1033
ChiselChiselG1025G1025G1032
V-GrooveV-GrooveG1027G1027G1034
FlatFlatG1029G1029G1036
HookHookG1028G1038G1035
CouplingCoupling-G1039G1037

Dimensions
Dimensions-Series-3


Series-3 force gauge models M3-012 tot M3-500 all have the same dimensions

All dimensions are noted in Inches with metric sizes in (mm) behind.


Accessories

Category Mark-10 Attachments


More details

Category  Mark-10 Attachments 0

Cic-Force Calibration Force Gauge


  • Easy planning of calibration
  • Short turnaround
  • Exclusively in accordance with Deutscher Kalibrierdienst (DKD) working standards, class F1; calibration-no: 19026 - 07

More details

Cic-Force Calibration Force Gauge 127037

Mesurgauge / Mesurgauge plus Load & Travel Analysis Software


  • Sends data from a force or torque gauge and travel display to a PC for further analysis

More details

Mesurgauge / Mesurgauge plus Load & Travel Analysis Software 126514

Double Handle Grip Double Handle Grips for Force Gauges


  • Double Handle Grips for Force Gauges

More details

Double Handle Grip Double Handle Grips for Force Gauges 126084

Single Handle Grips For Force Gauges


  • Single Handle Grips For Force Gauges

More details

Single Handle Grips For Force Gauges 126085

Video


Specifications
Accuracy±0,3% of full scale ±1 digit
Sampling rate2.000 Hz
PowerAC or rechargeable battery.
Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low.
Battery LifeBacklight on: up to 7 hours of continuous use
Backlight off: up to 24 hours of continuous use
Measurement unitslbF, gF, kgF, N (depending on model)
USB OutputConfigurable up to 115.200 baud.
Configurable SettingsDigital filters, USB output settings, backlight, automatic shutoff, key tones, audio alarms, default settings, calibration
Safe overload200% of full scale (display shows “OVER” at 110% and above)
WeightM3-012 – M3-100: 0,3 kg [0,7 lb]
M3-200 – M3-500: 0,4 kg [0,9 lb]
Shipping weightM3-012 – M3-100: 1,4 kg [3 lb]
M3-200 – M3-500: 1,5 kg [3,2 lb]
Environmental requirements:0 - 40°C [40 – 100°F], max. 96% humidity, non-condensing
Warranty3 years

Force Gauge comparison table
 Series-7 ProfessionalSeries-5 AdvancedSeries-4 PerformanceSeries-3 BasicSeries-2 Economical
Accuracy±0,1%±0,1%±0,2%±0,3%±0,5%
Sampling rate14.000 Hz7.000 Hz3.000 Hz2.000 Hz500 Hz
Resolution1/5.0001/5.0001/2.0001/1.0001/1.000
Units of measurementlbF, ozF, gF, kgF, N, kN, mN (depending on model)lbF, ozF, gF, kgF, N, kN, mN (depending on model)lbF, ozF, gF, kgF, N, kN, mN (depending on model)lbF, gF, kgF, N (depending on model)lbF, kgF, N
OutputsUSB, RS-232, Mitutoyo, AnalogUSB, RS-232, Mitutoyo, AnalogUSB, RS-232, Mitutoyo, AnalogUSBNo
- RS-232Configurable up to 230.400 baudConfigurable up to 115.200 baudConfigurable up to 115.200 baudNoN/A
- USBConfigurable up to 230.400 baudConfigurable up to 115.200 baudConfigurable up to 115.200 baudConfigurable up to 115.200 baudN/A
- Mitutoyo (Digimatic)Serial BCD suitable for all Mitutoyo SPC-compatible devicesSerial BCD suitable for all Mitutoyo SPC-compatible devicesSerial BCD suitable for all Mitutoyo SPC-compatible devicesNoN/A
- Analog±1 VDC, ±0,25% FS at capacity. Positive for compression, negative for tension±1 VDC, ±0,25% FS at capacity. Positive for compression, negative for tension±1 VDC, ±0,25% FS at capacity. Positive for compression, negative for tensionN/ANo
- General purpose I/OThree open drain outputs, one inputThree open drain outputs, one inputThree open drain outputs, one inputN/ANo
- Set pointThree open drain linesThree open drain linesThree open drain linesN/ANo
Mesur-Lite software includedYesYesYesYesNo
Data output functionalityAutomatic output or by pressing DATA button, or requesting from a PC or other device.Automatic output or by pressing DATA button, or requesting from a PC or other device.By pressing DATA button, or requesting from a PC or other device (currently displayed reading only).By pressing DATA button, or requesting from a PC or other device (currently displayed reading only).N/A
ASCII command set for external controlFull command setFull command set“?” only (request current reading)“?” only (request current reading)N/A
Interface w/MESUR® gauge and MESUR® LiteFull communicationFull communicationSingle point or continuous data output onlySingle point or continuous data output onlyN/A
Interface with ESM303 / 750 / 1500 test standsFull communication, including PC controlFull communication, including PC controlLimited to force data, overload protection, and force set pointsN/ANo
Data memory5.000 readings, with output1.000 readings, with output50 readings, with outputNoNo
Data memory deletionAny individual data point, or clear allAny individual data point, or clear allAny individual data point, or clear allN/AN/A
Statistic calculations and output to PCMax, min, mean, std. dev., number of readings, with outputMax, min, mean, std. dev., number of readings, with outputMax, min, mean, std. dev., number of readings, with outputN/AN/A
Break detectionYesNoNoNoNo
1st / 2nd peak detectionYesNoNoNoNo
Programmable footswitch command stringYesNoNoNoNo
Averaging modeYesYesNoNoN/A
External trigger modeYesYesNoNoNo
Analog load bar graph shown on displayYesYesYesYesNo
Set points (for pass / fail indication)Yes with high / low indicators, markers on analog bar graph, and outputsYes with high / low indicators, markers on analog bar graph, and outputsYes with high / low indicators, markers on analog bar graph, and outputsYes with high / low indicators, markers on analog bar graph, and outputsNo
Password protectionYes, for calibration and individual keysYes, for calibration and individual keysNoNoNo
Peak readings always displayedYesYesYesYesNo (Peak mode must be selected)
Programmable audible tonesYesYesYesYesNo
Calibration procedureConfigurable number of data points (up to 10 in each direction)Configurable number of data points (up to 10 in each direction)Configurable number of data points (up to 10 in each direction)Configurable number of data points (up to 10 in each direction)Configurable number of data points (up to 10 in each direction)
Overload outputsDedicated pins for tension and compressionDedicated pins for tension and compressionDedicated pins for tension and compressionNoN/A
Safe overloads200% of full scale (display shows warning at 110% and above)200% of full scale (display shows warning at 110% and above)200% of full scale (display shows warning at 110% and above)200% of full scale (display shows warning at 110% and above)200% of full scale (display shows warning at 110% and above)
