Series-TT03 Digital Torque Meter for torque testing applications


Made in the USA

The TT03 Torque tester is a versatile device suitable for torque testing in a laboratory environment as for field testing applications. With its compact aluminum housing the TT03 can be used in a test stand setup or as handheld device depending on the circumstances and requirements. It can measure in clockwise and counter-clockwise torque testing applications.

The TT03 consists of a digital indicator connected to a dedicated remote torque sensor that is available in a 6 type capacity range from 7 Ncm to 1150 Ncm. The device features a 2000 Hz sampling rate and has an accuracy of ±0.5% of full scale with a backlit display that shows current and peak torque readings for each direction, set points, pass/fail indicators, rotation direction, units of measurements and an analog load bar with setpoint markers.

MESUR® Lite data acquisition software is included to exported the data through a USB connection with the included USB data cable for tabulation of continuous or individual data points. One-click export to Excel allows for further data manipulation.







Features
  • Peak memory for clockwise and counter clockwise readings saved and displayed
  • High-speed 2,000 Hz sampling rate
  • Single Reading USB data output
  • Programmable set points with pass/fail indicators
  • Configurable audio alarms and key tones
  • Live load bar graphs with set point markers
  • CE mark
  • Made in the USA
  • Battery or AC operation

Capacity x Resolution
ModelNcmkgFmm lbFinozFin
MTT03-10Z7 x 0, 0057 x 0,005-10 x 0.01
MTT03-20Z14 x 0,0114 x 0,01-20 x 0.02
MTT03-50Z36 x 0,0536 x 0,05-50 x 0.05
MTT03-12135 x 0,1-12 x 0.01192 x 0.2
MTT03-50570 x 0,5-50 x 0.05800 x 0.5
MTT03-1001150 x 1-100 x 0.11600 x 1

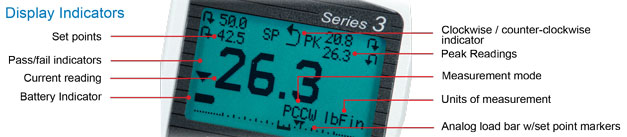

Display

WT3-201 Display


Complete Kit

Series TT03 torque gauges include the following accessories:

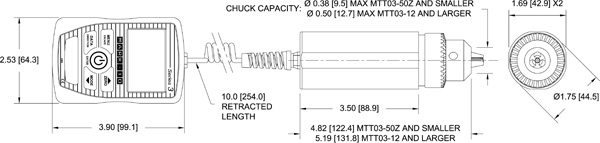

Dimensions
TT03 Torque gauge
Dimensions-TT03 Torque gauge


Dimensions of the TT03 Torque Tester ,

All dimensions are noted in Inches with metric sizes in [mm] behind.


Accessories

Mesurgauge / Mesurgauge plus Load & Travel Analysis Software


  • Sends data from a force or torque gauge and travel display to a PC for further analysis

More details

Mesurgauge / Mesurgauge plus Load & Travel Analysis Software 126514

AC1008 Table Top Stand for 5I, 3I or TT03


  • For mounting the 5I, 3I or TT03 Series displays on a table

More details

AC1008 Table Top Stand for 5I, 3I or TT03 126928

AC1004 Mounting Kit for 5I, 3I or TT03 to TS-Series Test Stands


  • Mounting Kit for 5I, 3I or TT03 to TS-Series Test Stands

More details

AC1004 Mounting Kit for 5I, 3I or TT03 to TS-Series Test Stands 126115

Cic-Torque Torque Instrument Calibration


  • Short turnaround
  • Easy planning of calibration

More details

Cic-Torque Torque Instrument Calibration 127043

Category Force Gauge Accessories


Large assortment of grips, attachments and other accessories for analog and digital force gauges.

More details

Category  Force Gauge Accessories 0

Specifications
Accuracy:±0.5% of full scale ±1 digit
Calibrated range10 - 100%
Sampling rate:2,000 Hz
Power:AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low.
Battery Life:Backlight on: up to 7 hours of continuous use
Backlight off: up to 24 hours of continuous use
Measurement units:lbFin, ozFin, kgFmm, Ncm (depending on model)
USB Output:Individual data point output by pressing DATA key. Configurable up to 115,200 baud.
Configurable Settings:Digital filters, USB output settings, backlight, automatic shutoff, key tones, audio alarms, default settings, calibration
Safe overload:150% of full scale (display shows “OVER” at 110% and above)
Weight:1.8 lb [0.8 kg]
Environmental requirements:40°F - 100°F [5°C - 45°C], < 96% humidity (non-condensating)
Warranty:3 Years

Related Products

Series-TT02 Series-TT02 Torque Tool Tester for (Electric) Screw Drivers


  • First / second peak capture for CW and CCW directions
  • 3/8” square receptacle accommodates common bits and attachments
  • High-speed 7000 Hz sampling rate accurately captures peak torque values

More details

Series-TT02 Series-TT02 Torque Tool Tester for (Electric) Screw Drivers

CAP-TT03 Hand-held Cap Torque Meter


  • For cap diameters of 16,5 - 39,0 mm
  • High-speed 2000 Hz sampling rate
  • Single Reading USB data output

More details

CAP-TT03 Hand-held Cap Torque Meter

R50 Series Universal Torque Sensor


  • Rugged aluminum housing
  • Unique Plug & TestTM connector holds all calibration and configuration data

More details

R50 Series Universal Torque Sensor

R51 Series Universal Torque Sensors


  • Compatible with the Series 7i, 5i and 3i digital indicators
  • Unique Plug & TestTM connector holds all calibration and configuration data
  • Outstanding overload protection

More details

R51 Series Universal Torque Sensors

Series-3I Force/Torque Indicator


  • Interchangeable force and torque sensors through Plug & Test® technology (sensors are sold separately)
  • High-speed 2.000 Hz sampling rate
  • Ultra-compact size

More details

Series-3I Force/Torque Indicator

Series-5I Advanced Digital Force/Torque Indicator


  • Interchangeable force and torque sensors through, separately sold, Plug & Test® technology
  • High-speed 7.000 Hz sampling rate
  • USB, RS-232, Mitutoyo, and analog outputs

More details

Series-5I Advanced Digital Force/Torque Indicator

Series-7I Advanced Force/Torque Indicator


  • Interchangeable force and torque sensors through Plug & Test® technology (sensors are sold separately)
  • High-speed 14.000 Hz sampling rate
  • Continous data capture of up to 5.000 data points, at up to 14.000 Hz, downloadable to a PC
  • 5 units of measurement, plus Coefficient of Friction and user-defined unit with configurable name

More details

Series-7I Advanced Force/Torque Indicator

Downloads

Buy Now
Products

Product
Price
Quantity
133312
MTT03-10ZE Digital Torque Gauge - 7 Ncm
€ 1.554,00
133313
MTT03-20ZE Digital Torque Gauge - 14 Ncm
€ 1.554,00
133314
MTT03-50ZE Digital Torque Gauge - 36 Ncm
€ 1.554,00
133315
MTT03-12E Digital Torque Gauge - 135 Ncm
€ 1.364,00
133316
MTT03-50E Digital Torque Gauge - 570 Ncm
€ 1.364,00
133317
MTT03-100E Digital Torque Gauge - 1150 Ncm
€ 1.364,00

Accessories

Product
Price
Quantity
133953
Long Form NIST certificate with data (ordered with a new gauge)
€ 83,00
130524
15-1004 MESUR gauge, single license

132876
09-1165 Cable, USB, Series 7/5/4/3 to PC
€ 29,00
132826
08-1026 Replacement battery, 8.4V NiMH
€ 19,00
131954
AC1030 AC adapter/charger, 110V US
€ 44,00
131955
AC1031 AC adapter/charger, 220V Europe
€ 44,00
132878
AC1032 AC adapter/charger, 220V UK
€ 44,00
132879
AC1035 AC adapter/charger, 220V Australia
€ 44,00
136807
20-1025 Chuck key, for 1/2” Jacobs chucks, size KK
€ 9,00
136808
20-1025-1 Chuck key, for 1/4” & 3/8” Jacobs chucks, size KGA
€ 9,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
