G1009 Compression Plates

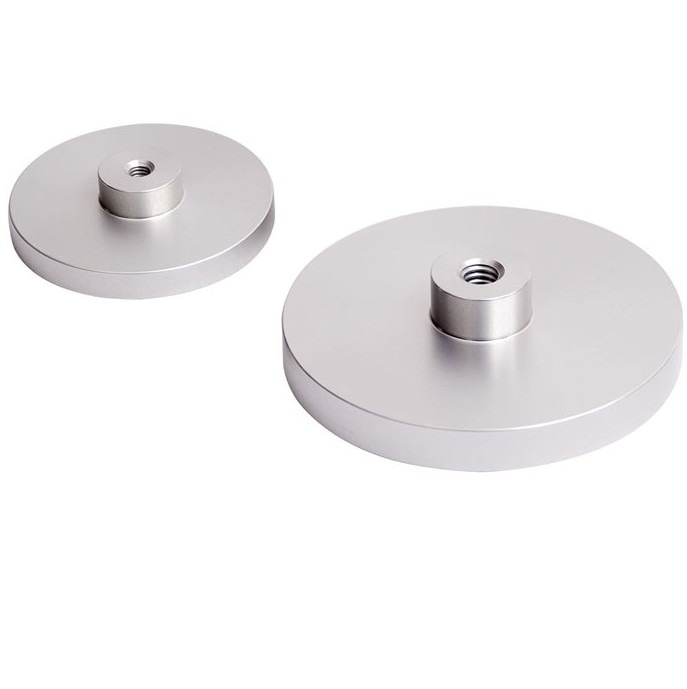

Made in the USAG1009 aluminum compression plates are available in two versions, one flat and one with vented channels, each come in two sizes, 51 and 76,2 mm.

These aluminum compression plates are ideal for testing springs, foams, cartons, aerosol cans and other materials like pressure testing sealed packages.

G1009 and G1009-2have a maximum compression capacity of 1000 N, G1009-1 and G1009-3 have a maximum compression capacity of 2500 N.
There are several options for connecting the pressure plates, directly to a force gauge or test stand, with thread adapter if required, a swivel adapter or by using an eye end adapter.

G1009 and G1009-2 include a #10-32 M/M stud with jam nuts.
G1009-1 and -3 include a 5/16-18M/M stud with jam nuts.


Features
  • Available in two sizes, 51 mm and 76,8 mm,
  • Available with and without vented channels
  • G1009 and G1009-2 include a #10-32 M/M stud with jam nuts G1009-1 and -3 include a 5/16-18M/M stud with jam nuts
  • Compatible with a variety of force gauges, sensors, and test stands

Dimensions
Dimensions-G1009


Specifications
G1009 & G1009-2:Compression plate, 50 mm (2") dia, include a #10-32 M/M stud with jam nuts
G1009-2 is with vented channels
Capacity:1000 N (200 lb)
Size (D x H):50 mm x 12.7 mm (2" x 0.5")
Weight:0,04 kg (0.08 lb)
Thread:#10-32F
G1009-1 & G1009-3:Compression plate, 75 mm (3") dia, include a 5/16-18 M/M stud with jam nuts
G1009-3 is with vented channels
Capacity:2500 N (500 lb)
Size (D x H):76.2 mm x 19 mm (3" x 0.75")
Weight:0,12 kg (0.27 lb)
Thread:5/16-18F
