G1023 Universal Bottle Grip For TST


Made in the USAThe G1023 Universal Bottle Grip is designed to hold round, square or odd shapes during torque or force tests.

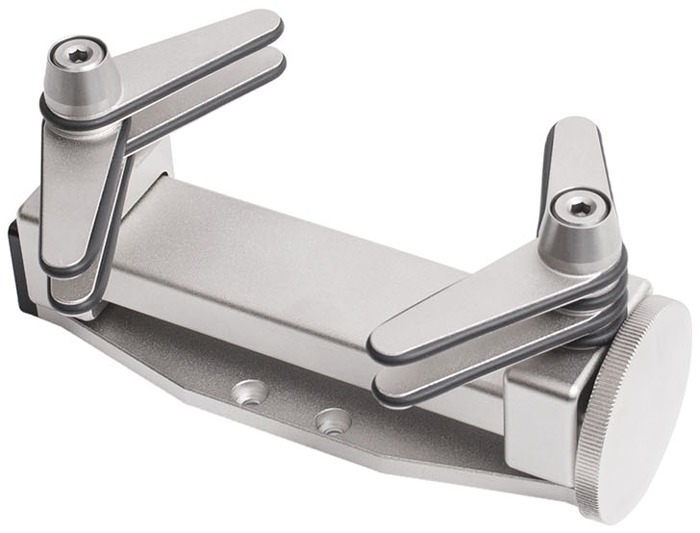

It has a unique design with 8 steel fingers, with rubber edges for gripping purposes, that is flexible to hold a variety of shapes during torque and tensile tests. Items like bottles, jars, containers or other odd shaped objects can be clamped for a variation of tests.

In combination with the G1109 90° peel fixture, AC1080 required, peel tests can be performed, a wide range of shapes can be individually positioned at angles of up to 180°.

The G1023 has a maximum clamping circle of 122 mm, a torque capacity of 11,3 Nm and a force capacity of up to 250 N.
The angle of each finger is set first after which the two segments are clamped against the test sample.

The G1023 bottle grip comes with mounting hardware to connect it to a TSTM test stand


Features
  • Individually adjustable rubber-edged gripping arms
  • May be used in torque and force measurement applications
  • Adapts to a variety of shapes

Dimensions
G1023 Bottle Grip
Dimensions-G1023 Bottle Grip


ModelØA
 4.80 [122.0] MAX
Sizes are noted in inch with metric sizes in [mm] behind them.

Related Products

G1058 Universal Cap Grip


  • Adjustable posts and vise-action mechanism accommodate a wide range of sample shapes and sizes
  • May be used in torque and force measurement applications
  • Works manualy and in combination with torque and force test stands

More details

G1058 Universal Cap Grip

G1053 Universal V-Jaw Grip


  • Reversible serrated jaws secure bottle caps and other round objects
  • Precision Acme screws provides durability and longevity
  • May be used for force and torque measurements

More details

G1053 Universal V-Jaw Grip

TSTM-DC Advanced Motorized Vertical Torque Test Stand


  • No speed variation with load
  • Maximum load: 11.5 Nm / Upgrade to 22.0 Nm is optional
  • Speed range: 0.01 - 15.00 RPM (0.05-90°/s)

More details

TSTM-DC Advanced Motorized Vertical Torque Test Stand

TST Manual Torque Test Stand


  • Adjustable travel stops
  • Smooth hand wheel operation

More details

TST Manual Torque Test Stand

TSTH Manual Horizontal Torque Test Stand


  • Smooth hand wheel operation

More details

TSTH Manual Horizontal Torque Test Stand

G1109 90° Peel Test Fixture


  • Maintains 90° angle between the table and the direction of pull.
  • Optional adjustable angle mount tilts the fixture up to ±30°.
  • 0° to 90° optional adjustable angle adapter with pulley, while preserving horizontal table orientation. (max. force: 150N).

More details

G1109 90° Peel Test Fixture

Specifications
Capacity:Toque-11.3 Nm (100 lbin) Force-250 N (50 lbF)
Size:89.2 mm x 84.1mm x 35.1 mm (7.45" x 3.31" x 4.50") with arms extended at 180°
Weight:0.18 kg (0.39 lb)
Sample size:Up to 122 mm (4.8") dia
