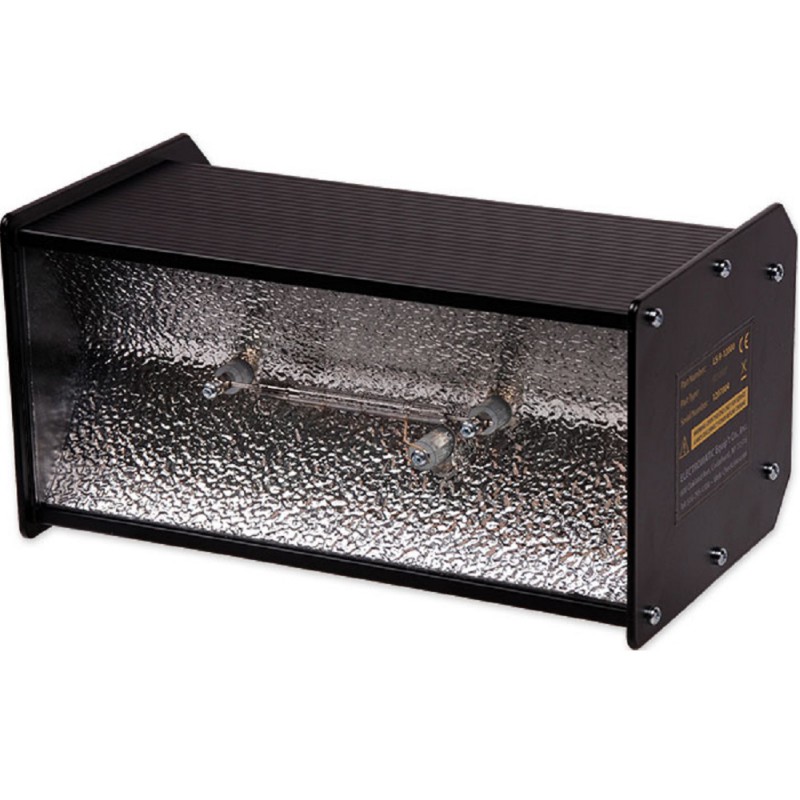

LS-9-12000 Linear Xenon Stroboscope


Made in GermanyThe new Checkline LS-9-12000 Linear Strobe is designed for fixed mounting on all machinery that utilize a strobe for visual inspection including, rewinders, slitters and similar process equipment in the label printing and process market as well as many others markets including vibration analyzers, balancers, metal producing equipment and much more.

The LS-9's flash rate can be externally triggered by an external sensor/controller on the process machine or the following optional accessories; the LS-FCM Flash Control Module or the LS-SCU Remote Strobe Controller. Refer to separate webpage on these accessories by clicking the links in RELATED PRODUCTS section. The strobe operates using 24V DC (18 - 28V DC) using power already available on the machine or by using the our worldwide AC-DC power adapter available as an option.

The LS-9 produces an extremely bright, sharp image employing a quartz glass xenon tube with extremely short flash duration of less than 10µs allowing detailed visual inspection of fast-moving targets. While under observation, when the flash rate is synchronized with the "repeat rate" of the web material, the image will appear "frozen" allowing for convenient inspection.

The brightness, sharpness and uniform light output provided by the LS-9 makes this model an excellent choice for fixed applications. It is especially well-suited for use on narrow web equipment up to 24 inches in width (600 mm width) and even wider. 2 or more strobes can be combined in a Master/Slave arrangement when wider web widths must be covered.



Features
  • Unmatched image brightness (2500 Lux) along with best sharpness and light uniformity from any strobe in its class
  • Uses long-life Quartz Glass Xenon linear tube with lifetime of over 200 Million flashes
  • Extremely short flash duration of less than 10 microseconds (µs) provides for a super-sharp image for easy observation
  • Can be powered using 24V DC already available on the machine or using option AC-DC power adapter.
  • Externally triggered using industry standard TTL-type square-wave signal at rates up to 208Hz and even higher
  • 9 inch wide (230 mm) aluminum enclosure efficiently dissipates heat eliminating need for bulky heat sinks
  • Two (2) or more LS-9 Strobes can be connected to each other for wider web coverage
  • CE-certified with safety and EMV approvals suitable for use worldwide
  • Threading holes provided for fixed-mounting on machine frame or articulating arm
  • Adjustable light intensity 30-100% to optimize brightness for any application
  • Optional UV-KIT provides for illumination of UV Inks and adhesives allowing for visual inspection by operators

Light Output (LUX) vs Distance


Related Products

LS-SCU Remote Control Unit



More details

LS-SCU Remote Control Unit

LS-5-UVKIT UV Strobe Conversion Kit for LS-5-12000 Stroboscope



More details

LS-5-UVKIT UV Strobe Conversion Kit for LS-5-12000 Stroboscope

LS-FCM Flash Control Module



More details

LS-FCM Flash Control Module

SAS-DT300 Articulating Stroboscope Swing Arm


  • 41" when fully extended
  • Heavy duty construction with internal springs

More details

SAS-DT300 Articulating Stroboscope Swing Arm

LS-GAPSENSOR Label Sensor for Triggering On Label Gaps


  • The LS-GAPSENSOR is supplied with a DIN connector for direct connection from CHECK-LINE LS-10 & LS-15 linear strobes.
  • IP66/Nema 4 rating provides excellent physical protection and is waterproof.

More details

LS-GAPSENSOR Label Sensor for Triggering On Label Gaps

LS-REGSENSOR Registration Mark Sensor


  • Color Mark registration detection on transparent and translucent, including many metalized films and paper

More details

LS-REGSENSOR Registration Mark Sensor

DT-TRI-HD Tripod for Tachometers and Stroboscopes


  • Expands from 10 1/2" to 40"
  • Steel leg construction, non-slip rubber feet & 2-way panhead

More details

DT-TRI-HD Tripod for Tachometers and Stroboscopes

LS-9-LED LED Fixed-Mount Linear Stroboscope


  • Extremely bright and uniform light distribution over an area of 300 x 500mm (12" x 20")

More details

LS-9-LED LED Fixed-Mount Linear Stroboscope

Leica TRI100 Large Tripod


  • Aluminium tripod with easy fine adjustment
  • ¼” fixing screw on removable head plate
  • Working height from 0.70m to 1.72m

More details

Leica TRI100 Large Tripod

Accessories

Category Stroboscope Accessories


More details

Category  Stroboscope Accessories 327

Specifications
Flash range0 - 12,500 FPM (flashes per minute)
Power Supply18 - 28 V DC / 40 Watts
DIN 41525 5-pin standard plug
Universal power supply unit available
External Trigger Input3 - 30 V / max 5 mA
(voltage-free optocoupler)
DIN 41524 5-pin standard plug
Uout = Uin, max 200 mA
Life Cycle> 200,000,000 flashes (@6000 FPM)
Flash Duration< 10 usec (microseconds)
Flash BrightnessSingle flash 20 megalux @ 30cm (12 inches)
Flash Brightness2500 lux @ 30cm (12 inches), 6000 FPM
Flash Energy2 Joules (2000 mJ @ 900 FPM)
Brightness Adjustment30 - 100% via knob on backside panel
Illumination Areaapprox. 12" x 20" (300 x 500 mm)
Light Colour6000 - 6500 K
Housing MaterialAluminum
Dimensions9.1" x 5.1" x 4.4" (230 x 130 x 112 mm)
Weight1400 g (3 lbs.)
Ambient Temperature0 - 40 °C (32-114 °F)
Storage Temperature-25 - 70 °C (-10 - 125 °F)
Air HumidityMax 95%, non-condensing
Mounting HolesThreaded 1/4 x 20 unc and 2x M5 holes on bottom side of strobe housing
