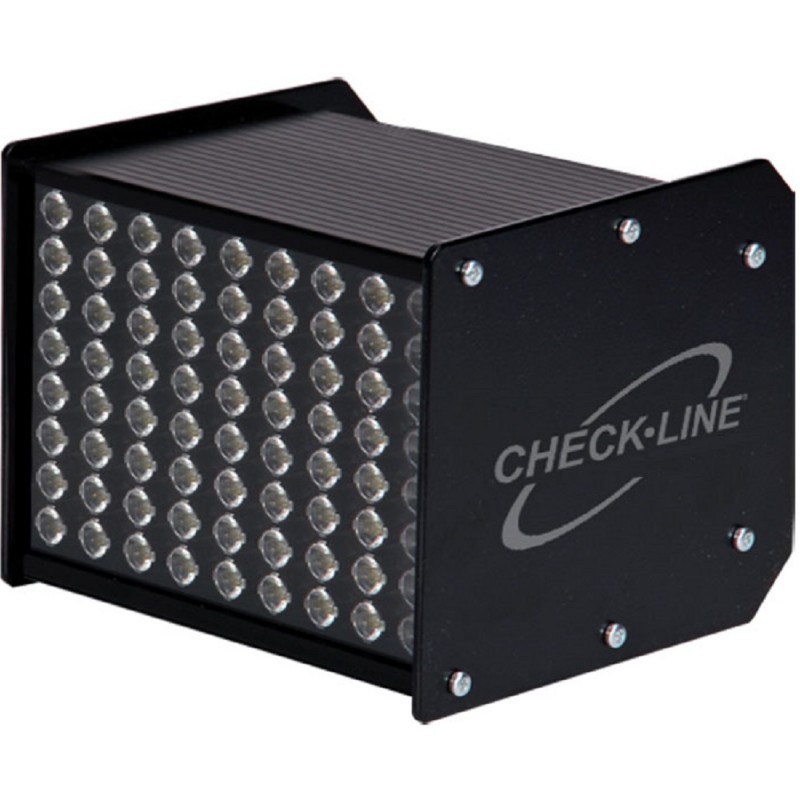

LS-5-LED LED Fixed-Mount Linear Stroboscope


Made in GermanyThe new LS-5-LED is a high-performance LEDs produce a bright/sharp image and uniform light distribution for web widths up to 12" (300mm) and wider.



High Light Output: 80 high-performance LEDs provide powerful light intensity. The large, homogeneous illumination surface delivers superb results in difficult light conditions, making the LS-5-LED suitable for a wide range of measurement, observation and inspection functions, especially for demanding applications, such as those in the printing industry.



Superb image sharpness: Adjustable flash duration from 1 to 1000 microseconds, allows you to easily find the best combination between light intensity and sharp images for every application.



Flexible adjustments for all applications: Alternatively, the stroboscope can be controlled directly by the trigger signal of your system without the need for additional control units or by various strobe control devices. When using these trigger options simultaneously, you can easily alternate between the signal inputs.



Additional control options: LS-5-FCM: A simple and inexpensive unit for controlling flash frequency. You simply insert this small control unit into one of the sockets on the reverse side of the device.



LS-5-RCU: For adjusting the flash frequency, phase shift, delay time and trigger divider. This unit is connected to the stroboscope by cable and provides the convenience of remote control even if the stroboscope within your machine is difficult to access.




Features
  • Light intensity of 6000 Lux peak
  • Extremely bright and uniform light distribution for web widths up to 12" (300mm) and wider.
  • Connections include two trigger inputs and one trigger output. Power can be connected in either of these three locations.
  • LEDs provide lifetime use and never require replacement.
  • Powered by 24 VDC, An optional universal AC-DC power supply is available.
  • For web widths greater than 12" (300mm), two or more strobes can be connected in parallel.

Light Output (LUX) vs Distance

Overview of LED Strobe Models
Model LEDs Array Size Brightness (peak) Housing Width
LS-5-LED 80 10 x 8 6000 Lux 150 mm
(6 inch)
LS-9-LED 120 15 x 8 7500 Lux 230 mm
(9 inch)
LS-9-LED-WB 120 5 x 8 (3x) 7500 Lux 440 mm
(17 inch)
LS-18-LED 200 25 x 8 9000 Lux 440 mm
(17 inch)

Specifications
LEDs200 in a 25 x 8 array
Frequency Range0...120000 FPM (flashes per minute)
Power Required24 VDC (+/-10%) / 40 W
DIN 41524 5-pin standard plug
universal power supply optionally available (LS-5-AC-WORLD)
External Trigger Input3…30 V / max. 5 mA
Potential-free optocoupler
DIN 41524 5-pin standard plug
Uout = Uin, max. 200 mA
switchable trigger input
Trigger Outputfor connection to 2nd Strobe (Slave)
Illumination Intensity9,000 Lux / 12" / 30cm
Light intensity/sharpnessAdjustable with turning knob
Illumination intensity single flash1.2 Mega-Lux / 12" / 30cm
Illumination area12 x >20" (30 x >50cm)
Flash colorca. 5000...8.300 K
MaterialAluminum
Dimensions6.0" x 5.1" x 4.4" (150 x 130 x 112mm)
Weight2.09 lbs
Ambient temperature0°...40°C (32°...114°F)
Storage temperature-25°C...70°C (-10°...125°F)
Humiditymax. 95% not condensing
CertificationsCertificate of CE conformity

Related Products

LS-SCU Remote Control Unit



More details

LS-SCU Remote Control Unit

LS-FCM Flash Control Module



More details

LS-FCM Flash Control Module

SAS-DT300 Articulating Stroboscope Swing Arm


  • 41" when fully extended
  • Heavy duty construction with internal springs

More details

SAS-DT300 Articulating Stroboscope Swing Arm

LS-GAPSENSOR Label Sensor for Triggering On Label Gaps


  • The LS-GAPSENSOR is supplied with a DIN connector for direct connection from CHECK-LINE LS-10 & LS-15 linear strobes.
  • IP66/Nema 4 rating provides excellent physical protection and is waterproof.

More details

LS-GAPSENSOR Label Sensor for Triggering On Label Gaps

LS-REGSENSOR Registration Mark Sensor


  • Color Mark registration detection on transparent and translucent, including many metalized films and paper

More details

LS-REGSENSOR Registration Mark Sensor

DT-TRI-HD Tripod for Tachometers and Stroboscopes


  • Expands from 10 1/2" to 40"
  • Steel leg construction, non-slip rubber feet & 2-way panhead

More details

DT-TRI-HD Tripod for Tachometers and Stroboscopes

Leica TRI100 Large Tripod


  • Aluminium tripod with easy fine adjustment
  • ¼” fixing screw on removable head plate
  • Working height from 0.70m to 1.72m

More details

Leica TRI100 Large Tripod

Accessories

Category Stroboscope Accessories


More details

Category  Stroboscope Accessories 0

Buy Now
Product

Product
Price
Quantity
133150
LS-5-LED Linear LED Stroboscope with 80 LEDS (without power supply)
€ 1.260,00

Accessories

Product
Price
Quantity
130699
LS-CABLE-PT Cable for connection to 2nd Strobe transferring both power and trigger signal
€ 91,00
134042
LS-CABLE-T Cable for connection to 2nd Strobe transferring ONLY trigger signal from primary to slave
€ 91,00
130700
LS-DIN 5-pin DIN Connector
€ 5,00
130698
LS-AC-WORLD Universal Power Supply for LS-RCU or LS-5-12000 Strobes
€ 112,50
133170
LS-FCM Flash Control Module for manual adjustment of flash rate
€ 108,00
130268
SAS-DT300 Flexible swing arm for DT-311A/315A stroboscope
€ 235,00
131143
LS-GAPSENSOR for triggering strobe on gaps between labels
€ 191,00
132205
LS-REGSENSOR for triggering strobe on registration marks on printed piece
€ 214,00
131288
DT-TRI-HD Mini Tripod
€ 39,00
130231
Leica Tripod TRI 100
€ 78,00
130696
LS-SCU Remote Control Unit & Connection cable with LS-DIN at both ends (1,5 mtr)
€ 340,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
