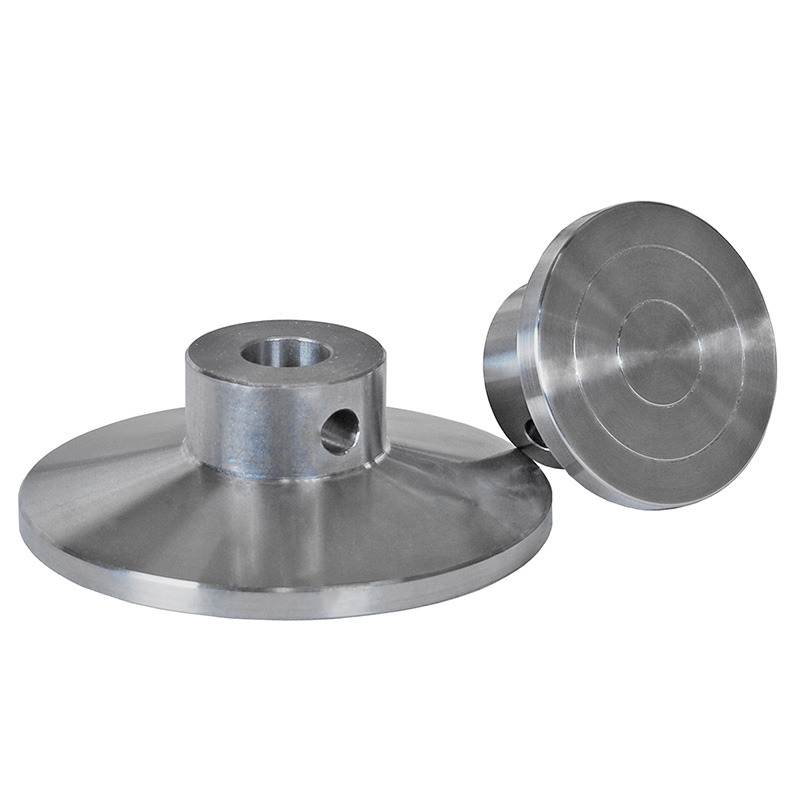

G1087 Compression Plates, High Capacity


High capacity G1087 compression plates are ideal for springs, foams, top load, and other compression tests. The plates include an integrated eye end mount, and can attach to force gauges, load cells, and test stands. Concentric circular grooves aid in centering the sample.


Features
  • Concentric grooves aid in sample positioning
  • Select from two sizes
  • Integrated eye end mounting

Specifications
Capacity:9 kN (2000 lbF)
Weight:G1087: 0.68kg (1.50 lb)
G1087-1: 0.54kg (1.18lb)
Material:303 SS

Dimensions
Dimensions-G1087


IN [MM]

Model ØA B
G1087 3.78" [96.0mm] 1.28" [32.5mm]
G1087-1 2.20" [55.9mm] 1.18" [30.0mm]

Downloads
