G1061 Series Wedge Grip

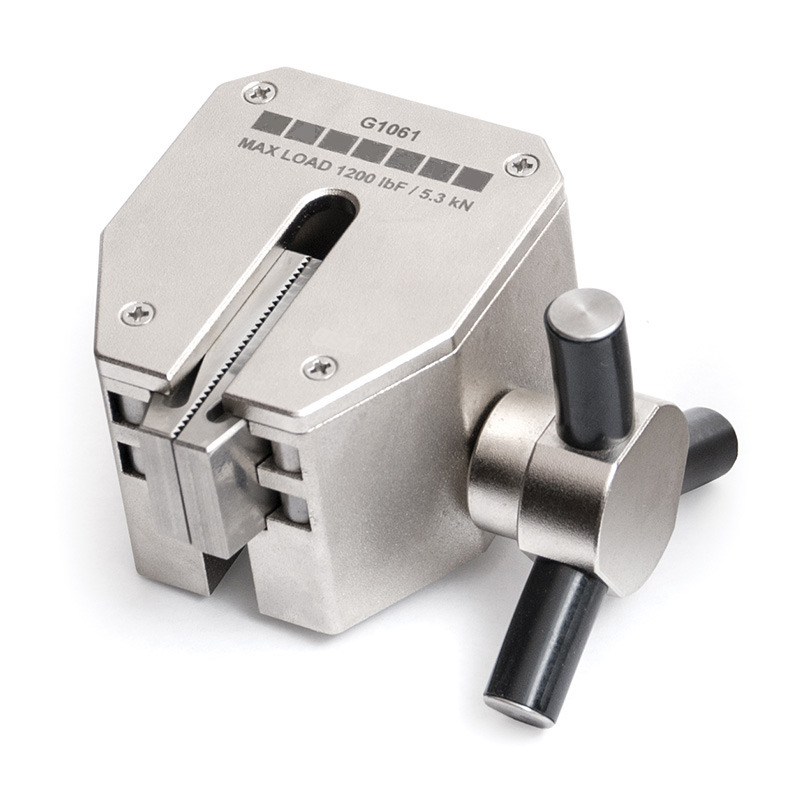

Made in the USAThe G1061 Series Wedge Grips are designed as fully closed heavy duty self-tightening grips.
These easy to use grips come in 4 different versions for various applications with a capacity range from 250 N up to 9 kN.
The serrated hardened steel or rubber jaw faces ride on rollers instead of sliding along the surface of the housing, this unique design prevents jamming and improves gripping characteristics.

The jaws are spring loaded open and move with a very smooth rack and pinion lever mechanism for easy operation.
This makes the G1061 grips in combination with force gauges or test stands ideal for tensile testing of a wide range of materials.

The G1061 series grips each come with an assortment of adapters with jam nuts.


Features
  • Unique jam-free design
  • 4 versions available
  • Ergonomic rack and pinion lever mechanism
  • Fully enclosed design
  • Hardened, serrated steel jaws or rubber jaw for film and paper tensile testing applications
  • Thru slot for samples of unlimited width

Dimensions
G1061 Series Wedge Grip
Dimensions-G1061 Series Wedge Grip


ModelA mmB mmC (mm)D (mm)E F (mm)G (mm)
G106149.562.219.138.11/2-20 UNF0 - 6.425.4
G1061-149.562.29.524.15/16-18 UNC0 - 6.415.7
G1061-249.562.225.444.51/2-20 UNF0 - 6.428.7
G1061-349.562.225.444.51/2-20 UNF0 - 5.128.7

Specifications

Related Products

Eye End Adapter For Mounting of Grips to Force Gauges / Sensors and Test Stands



More details

Eye End Adapter For Mounting of Grips to Force Gauges / Sensors and Test Stands

G Series Thread Adapters & Couplings



More details

G Series Thread Adapters & Couplings

G1062 Miniature Wedge Grip


  • Serrated steel jaws
  • Spring-loaded lever
  • Thru slot for samples of unlimited width

More details

G1062 Miniature Wedge Grip

G1018 Swivel Adapters


  • Swiveling adapter, for use between certain grips and force gauges.
  • Capacity G1018-1: 1000 N
    Capacity G1018-2: 2500 N
  • Designed for tensile (pull) testing applications only.

More details

G1018 Swivel Adapters

Downloads

Buy Now
Products

Product
Price
Quantity
130850
G1061 Wedge grip, 0.75” jaw width, 5/16-18F
€ 665,00
132873
G1061-1 Wedge grip, 0.375” jaw width, 5/16-18F
€ 597,00
132874
G1061-2 Wedge grip, 1” jaw width, 1/2-20F
€ 862,00
136113
G1061-3 Wedge grip, 1" jaw width, rubber jaw faces, 1/2-20F
€ 727,00

Accessories

Product
Price
Quantity
130808
G1018-2 Swivel adapter, 5/16-18M to 5/16-18F
€ 67,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
