G1019-G1020-G1021-G1112 Ergonomic Padded Attachments
This series of padded attachment is designed for ergonomic testing, job task requirements like open and closing doors and drawers and pushing carts by using ergo or myometers.
Physiotherapist can use these when testing muscle strength and document actual increase of strength, padding is added for user comfort.
In combination with a force gauge they can also be used for safety checks like measuring the force required to open a fire door.

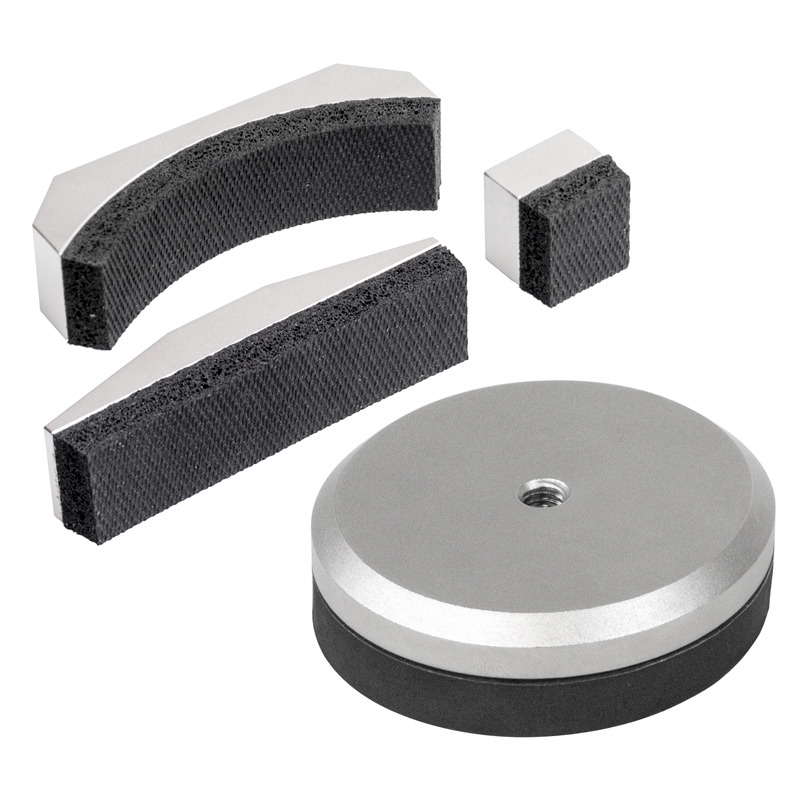

This series consists of 4 different padded attachments each with their own shape and purpose, padding thickness is 11,5 mm.
- G1019 is a square padded attachment of 25,4 mm
- G1020 is a flat padded rectangle attachment of 101,6 and 25,4 mm
- G1021 is a curved shape rectangle attachment with a radius of 81,3 and 25,4 mm
- G1112 is a round attachment with a diameter of 75,7 mm
Each attachment will mount directly to Mark-10 Force or ergonomic gauges and are included in several ergonomic kits.
The attachments Include a 5/16-18M to #10-32F thread adapter, 5/16-18 jam nut, and #10-32 jam nut.
Features
- Padded surface for user comfort
- Select from four shapes
- The attachments Include a 5/16-18M to #10-32F thread adapter, 5/16-18 jam nut, and #10-32 jam nut.
Dimensions
Related Products
EK3 Ergonomic Testing Kit
- High-speed 2,000 Hz sampling rate
- USB data output of continuous or individual data points
- Ultra compact size
More details
Series E - Ergonomics Force Gauge for Compression and Traction
- Data memory for 5000 measured values - measured values can be stored manually or continuously with up to 7000 Hz
- Measures compressive and tensile force peak values
- Statistical functions for stored measured values
More details
Series-3 Digital Force Gauge
- High-speed 2.000 Hz sampling rate
- USB data output of continuous or individual data points
More details
Series-5 Advanced Digital Force Gauge
- ±0,1% accuracy
- High-speed 7.000 Hz peak sampling rate
- 1.000-point data memory with statistics and outputs
More details
G1009 Compression Plates
- Available in two sizes, 51 mm and 76,8 mm,
- Available with and without vented channels
- G1009 and G1009-2 include a #10-32 M/M stud with jam nuts G1009-1 and -3 include a 5/16-18M/M stud with jam nuts
More details
Specifications
| Capacity: | 2500 N (500 lb) |
| Size (W x D x H): | G1019: 25.4 x 25.4 x 25.4 mm (1" x 1" x 1") G1020: 10.16 x 25.4 x 25.4 mm (4" x 1" x 1") G1021:10.16 x 25.4 x 35.6 mm (4" x 1" x 1.4") G1112(D x H) : 21.3 x 75.7mm (0.84" x 2.98") |
| Weight: | G1019:10 g (0.03 lb) G1020: 60 g (0.13 lb) G1021: 110 g (0.25 lb) G1112: 130g (0.28lb) |
| Thread: | 5/16-18 UNC |
Buy Now
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
