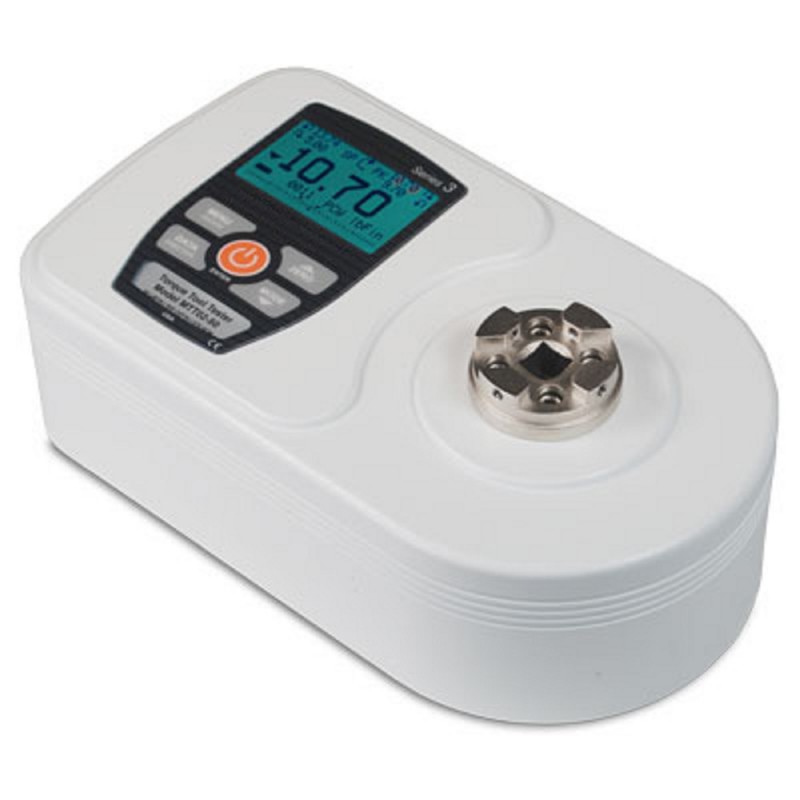

The Series TT02 torque tool testers provide a solution for testing smaller powered and manual torque tools like screwdrivers and wrenches.
This compact torque tester is equipped with a universal 3/8”square and comes standard with a 1/4” hex to 3/8” adapter, measures torque in both directions and calculates 1st and 2nd peaks for click type tools.
The TT02 provides reliable and consistent results with its accuracy of 0,3% and 7000 Hz sampling rate. An internal memory storage of 1000 measurements combined with USB, RS-232, Mitutoyo, and analog outputs assure all data is saved and can be processed. Password protection saves the data from an accidental delete or unauthorized changes to setup or calibration.
Data is transferred to a computer through the standard USB cable and MESUR® Lite data acquisition software. Downloaded data can be exported to Excel for further processing
An optional rundown fixture, AC1066-1 and/or -2, can be used to simulate soft and hard joints.
The TT02 is not suited for use with impact tools.
| Model | Ncm | Nm | kgFcm | ozFin | new collbFin |
|---|---|---|---|---|---|
| TT02-12 | 135 x 0,1 | 1,35 x 0,001 | 14 x 0,01 | 192 x 0.1 | 12 x 0.005 |
| TT02-25 | 290 x 0,2 | 2,9 x 0,002 | 28 x 0,02 | 400 x 0.2 | 25 x 0.01 |
| TT02-50 | 570 x 0,5 | 5,7 x 0,005 | 58 x 0,05 | 800 x 0.5 | 50 x 0.02 |
| TT02-100 | 1150 x 0,5 | 11,5 x 0,005 | 116 x 0,1 | 1600 x 1 | 100 x 0.05 |
The Series TT02 is delivered including the following items:
Dimensions of the TT02 Torque Tester,
All dimensions are noted in Inches with metric sizes in [mm] behind.
| Accuracy | ±0.3% of full scale |
| Sampling rate | 7000 Hz |
| Power | AC or rechargeable battery. Multi-step low battery indicator is displayed, tester shuts off automatically when power is too low |
| Battery Life | Backlight on: up to 7 hours of continuous use Backlight off: up to 24 hours of continuous use |
| Measurement units | Nm, Ncm, ozFin, lbFin, lbFft |
| Outputs | USB / RS-232: Configurable up to 115,200 baud. Mitutoyo: Serial BCD suitable for all Mitutoyo SPC-compatible devices Analog: ±1 VCD, ±0.25% of full scale at capacity General purpose: Three open drain outputs, one input Set points: Three open drain lines |
| Configurable Settings | 1st/2nd peak, digital filters, outputs, automatic shutoff, default settings, key tones, backlight, audio alarms, passwords, calibration |
| Safe overload | 150% of full scale (display shows “OVER” at 110% and above) |
| Weight | 2.6 kg (5.8 lb) |
| Environmental Requirements | 5°C - 45°C (40°F - 100°F) <96% humidity (non-condensating) |
| Warranty | 3 years (see individual statement for further details) |
