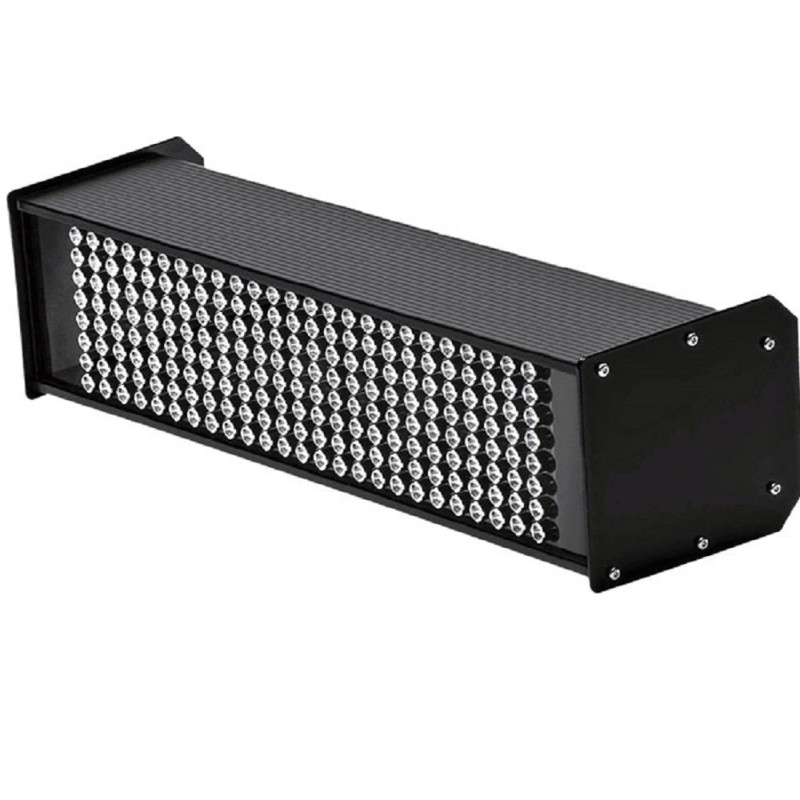

LS-18-LED LED Fixed-Mount Linear Stroboscope


Made in GermanyThe new CHECK-LINE model LS-18-LED Linear Strobe is designed for fixed-mounting on a wide variety of machinery and for various visual inspection tasks. It utilizes 200 high-performance LEDs arranged in a 25 x 8 array to produce a bright/sharp image with a uniform light distribution for web widths up to 20" (500mm) and wider. For wider coverage, two (2) or more Strobes can be combined in a Master/Slave arrangements using an interconnect cable to transfer the trigger signal from one to the other for perfect synchronization.

The LS-18-LED uses the industries latest high performance LEDs to provide lifetime use, never requiring replacement. Their whisper-quiet operation and superb light intensity and uniformity make this linear stroboscope suitable for use in the toughest production environments and for a wide range of measurement, observation and inspection functions. Typical applications include those in the printing, steel processing and label-printing industries.

Adjustable brightness and image sharpness allows the user to optimize the strobe based on ambient lighting conditions, flash rate, image size and other operating parameters, allowing the user to find the best balance between light intensity and image sharpness for every application.

The LS-18-LED is fitted with the ability to be controlled from two separate inputs with a toggle switch to select between the two. Flash rate can be controlled externally from a sensor or from a machine controller, or from a variety of optional control accessories that are detailed below.

LS-FCM Flash Control Module: A simple and inexpensive unit for controlling flash frequency. You simply insert this small control unit into one of the two inputs on the reverse side of the strobe.

LS-SCU Strobe Controller: For adjusting the flash frequency, phase shift, delay time and trigger divider. This unit is connected to the stroboscope by cable and provides the convenience of remote control if the stroboscope out of the line of sight or reach of the operators.


Features
  • Extremely bright and uniform light distribution for web widths up to 20" (500mm) and wider.
  • Light intensity of 9000 Lux peak from 200 LEDs
  • Connections include two trigger inputs and one trigger output. Power can be connected in either of these three locations.
  • LEDs provide lifetime use and never require replacement.
  • Powered by 24 VDC, An optional universal AC-DC power supply is available.
  • For web widths greater than 20" (500mm), two or more strobes can be connected in parallel using the LS-CABLE-T. Each strobe would require it's own power supply.

Light Output (LUX) vs Distance

Light Output (LUX) vs Distance


Overview of LED Strobe Models
Model LEDs Array Size Brightness (peak) Housing Width
LS-5-LED 80 10 x 8 6000 Lux 150 mm
(6 inch)
LS-9-LED 120 15 x 8 7500 Lux 230 mm
(9 inch)
LS-9-LED-WB 120 5 x 8 (3x) 7500 Lux 440 mm
(17 inch)
LS-18-LED 200 25 x 8 9000 Lux 440 mm
(17 inch)

Specifications
LEDs200 in a 25 x 8 array
Frequency Range0...120.000 FPM (flashes per minute) (LS-5-AC-WORLD)
External Trigger Input3…30 V / max. 5 mA
Potential-free optocoupler
DIN 41524 5-pin standard plug
Out = Uin, max. 200 mA
switchable trigger input
Power Required24 VDC (+/-10%) / 40 W
DIN 41524 5-pin standard plug
universal power supply optionally available
(LS-5-AC-WORLD)
Trigger Outputfor connection to 2nd Strobe (Slave)
Illumination Intensity9,000 Lux (at 12"/30cm)
Light intensity/sharpnessAdjustable with turning knob
Illumination intensity single flash1.2 Mega-Lux / 12" / 30cm
Illumination area12 x >20" (30 x >50cm)
Flash color5000...8.300 K, approx.
MaterialAluminum
Dimensions230 x 130 x 112 mm / 9.1 x 5.1 x 4.4
Weight2.1 kg
Ambient temperature0°...40°C (32°...114°F)
Storage temperature-25°C...70°C (-10°...125°F)
Humiditymax. 95% not condensing
CertificationsCE conformity

Related Products

LS-SCU Remote Control Unit



More details

LS-SCU Remote Control Unit

LS-FCM Flash Control Module



More details

LS-FCM Flash Control Module

LS-GAPSENSOR Label Sensor for Triggering On Label Gaps


  • The LS-GAPSENSOR is supplied with a DIN connector for direct connection from CHECK-LINE LS-10 & LS-15 linear strobes.
  • IP66/Nema 4 rating provides excellent physical protection and is waterproof.

More details

LS-GAPSENSOR Label Sensor for Triggering On Label Gaps

LS-REGSENSOR Registration Mark Sensor


  • Color Mark registration detection on transparent and translucent, including many metalized films and paper

More details

LS-REGSENSOR Registration Mark Sensor

SAS-DT300 Articulating Stroboscope Swing Arm


  • 41" when fully extended
  • Heavy duty construction with internal springs

More details

SAS-DT300 Articulating Stroboscope Swing Arm

DT-TRI-HD Tripod for Tachometers and Stroboscopes


  • Expands from 10 1/2" to 40"
  • Steel leg construction, non-slip rubber feet & 2-way panhead

More details

DT-TRI-HD Tripod for Tachometers and Stroboscopes

Leica TRI100 Large Tripod


  • Aluminium tripod with easy fine adjustment
  • ¼” fixing screw on removable head plate
  • Working height from 0.70m to 1.72m

More details

Leica TRI100 Large Tripod

Accessories

Category Stroboscope Accessories


More details

Category  Stroboscope Accessories 327

Buy Now
Products

Product
Price
Quantity
LS-18-LED Linear LED Stroboscope (without power supply)
€ 3.347,00
LS-SCU - Remote Control Unit and connection cable
€ 398,00

Accessories

Product
Price
Quantity
LS-CABLE-PT Cable for connection to 2nd Strobe transferring both power and trigg
€ 85,00
LS-CABLE-T Cable for connection to 2nd Strobe transferring ONLY trigger signal
€ 1,00
LS-DIN - 5-pin DIN Connector for use with LS or LS-RCU
€ 1,00
LS-AC-WORLD-90VA Universal Power Supply for LS-18-LED or LS-9-12000
€ 147,00
LS-FCM Flash Control Module
€ 147,00
SAS-DT300 - Articulating Swing Arm
€ 163,00
LS-GAPSENSOR - Label Sensor for Triggering On Label Gaps
€ 141,00
LS-REGSENSOR Registration Mark Sensor
€ 169,00
DT-TRI-HD - Tripod for Tachometers and Stroboscopes
€ 41,00
Tripod TRI 100
€ 69,00
All mentioned prices are excluding VAT & excluding shipment costs.
