HV-110 Manual Test Stand


HV-110 - Standard Model
HV-110S - with Distance Meter
HV-110L - Long Stroke, 16.8" Clearance

Model HV-110 is a compact test stand with a maximum capacity of 110 lbs. The handwheel offers precise movement that is ideal for applications requiring relatively consistent speed and maximum gauge control. The gauge remains in position when the wheel is released which allows the user to easily change samples between tests. Hand wheel operation provides repeatable test results from sample to sample.

*Force Gauge Not Included

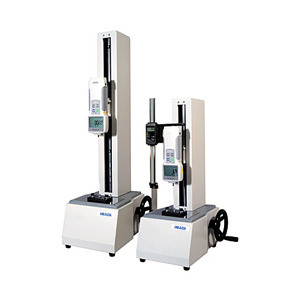

Shown with Z2 Series Force Gauge


Features
  • Hand wheel design provides a high degree of precise control
  • Gauge remains in place when hand wheel is released
  • One stand for both compression (push) and tension (pull) tests
  • Optional digital distance meter
  • 228mm (9") Maximum Travel
  • 5" extension plate, optional

Related Products

DS2 Digital Force Gauge


  • Real time and peak mode (selectable)
  • lb, kg, and Newton units are push-button selectable

More details

DS2 Digital Force Gauge

MX-110 Motorized Vertical Test Stand


  • One stand for both compression (push) and tension (pull) tests
  • Jog, Single Cycle, Continuous Cycle, Force Control

More details

MX-110 Motorized Vertical Test Stand

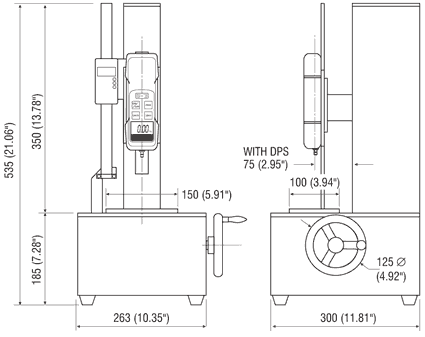

Dimensions
Dimensions-HV-110


Specifications
Capacity:50kg / 500N / 110lb
Stroke:228mm (9")
Travel Rate:2 mm (0.8") per revolution of hand wheel
DimensionsRefer to dimensions above
Weight:Approx 10 Kg (25 lbs)
Compatible Force Gauges:Z2, DPS, PS and FB series
Warranty2 years
*NoteOptional Distance Meter Max Sampling Rate Output - 2 Samples Per Second

Buy Now
Products

Product
Price
Quantity
131810
HV-110 Mechanical Test Stand - 500 N
€ 1.156,00
132307
HV-110S Manual Test Stand with Distance Meter
€ 1.920,00
132308
HV-110L Manual Test Stand
€ 1.978,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
