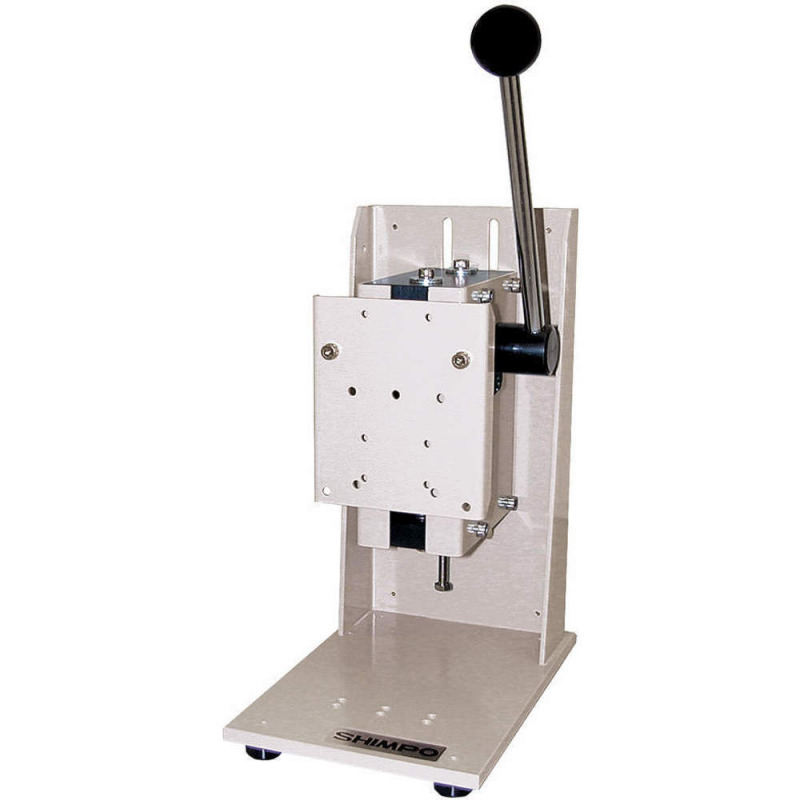

FGS-50S Manual Lever Test Stand


The FGS-50S Manual Hand-lever Force Test Stand offer the ability to obtain accurate, consistent results without the high cost of a motorized system. This manual hand-lever operated test stand is ideal for rapid testing applications.

The FGS-50S manual hand-lever test stand has a 22 kg / 220 N capacity and can ensure accurate, consistent test results with the addition of a digital or mechanical force gauge.

Nearly all manufacturers’ gauges are compatible with this test stand for incredible versatility. This stand is designed for precision, balance, and durability. Therefore they are perfectly suited for measuring a limitless range of materials such as, wire, spring, plastic, paper cord, tubing, glass and composites.

*Force Gauge Not Included
Shown with FGE

Features
  • Manual lever operation for compression (push) measurements
  • Adjustable stroke with stop screws: max. 50 mm
  • Large platform base accepts special attachments
  • Fixed position (clearance)in 3 steps: 40, 70, 100 mm
  • Max. capacity 22kg
  • Dimensions 150 x 240 x 320 mm (L x W x H)

Specifications
Capacitymax. 200 N (20 kg)
Stroke50 mm
Vertical Clearance40, 70, 100 mm
Dimensions150 x 240 x 320 mm (L x W x H)
Weight10 kg
Warranty2 year

Dimensions
Dimensions-FGS-50S


Downloads

Complete Kit

Included Items:

  • Mounting Bracket
  • Cable Holder
  • 5mm Allen wrench
  • 4x Philips head screw M4x8
  • 3x Philips head screw M5x6
  • 2 Year Warranty
  • User Manual


Related Products

FGS-100L Manual Lever Test Stand


  • Manual lever operation for compression (push) measurements
  • Precision gear movement provides a consistent linear motion that produces repetitively accurate results

More details

FGS-100L Manual Lever Test Stand

FGS-100H Manual Hand Wheel Operated Test Stand


  • Sturdy, all steel construction

More details

FGS-100H Manual Hand Wheel Operated Test Stand

Buy Now
Product

Product
Price
Quantity
130189
FGS-50S Manual Lever Test Stand
€ 702,00

Accessories

Product
Price
Quantity
131385
UNI-PLATE (Competitors gauges & MF-JAVELIN)
€ 146,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
