G1103 Wire / Rope Grip
Click on an image for a larger image
G1103, A vertical wire pull test with two G1103 Wire / Rope Grips and an F305 Advanced Test Frame.

Call us for more information
+31 (0)53 8200245
Request Information / Quotation
Show similar products
View pricing

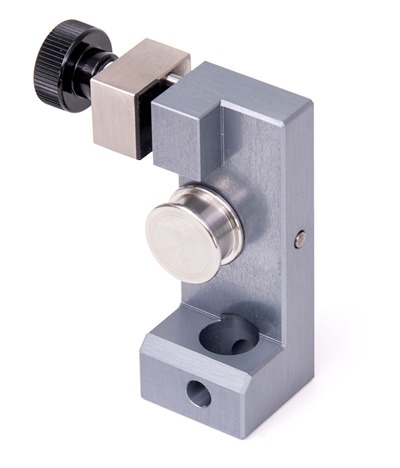

G1103 Wire / Rope Grip


This medium sized grip has been designed for wire, rope and yarn pull testing applications, secures the free end of the sample by a bollard and vise with rubber - faced jaw. Accommodates sample sizes up to Ø6.6 mm and includes an integrated eye end mounting. An eye end adapter is required to mount to force gauges and test stands.




Dimensions
IN[MM]
Dimensions-IN[MM]


Features
  • Effectively secures wire, rope, and other samples with bollard / capstan design.
  • Integrated eye end mounting - eye end adapter required.

Specifications
Capacity:1 kN (200 lbf)
Maximum Sample Diameter:6.6 mm
Weight:0.3 kg (200 lb)

Downloads
G1103 Solid Models
Data Sheet for All Grips
