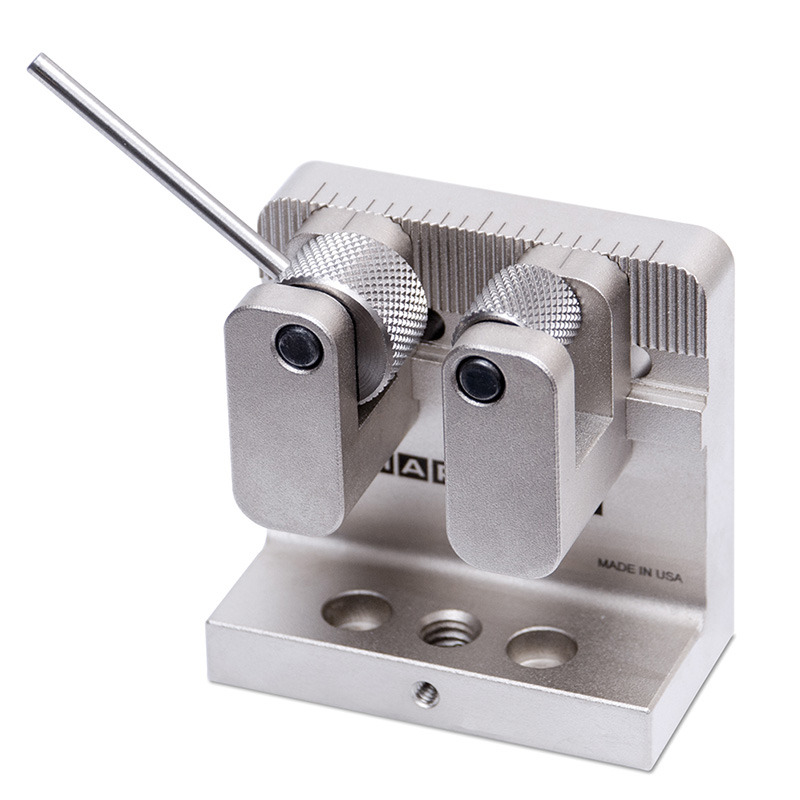

G1085 Adjustable Dual Roller Grip


Made in the USAThe G1085 Adjustable Dual Roller Grip is designed for accuracy and versatility in pull testing.
Its a robust cam grip mechanism, expertly secures the ends of tubing, cables, and even those irregularly shaped samples with a load capacity of up to 2.5 kN and a maximum width of 25 mm.

A special feature of the G1085 is its innovative roller cam adjustments. Every roller can be individually adjusted sideways, allowing for effortless expansion or contracting the total width of the sample opening to suit your precise requirements.

The quality of this grip ensures not only the precision of the test results but also their reliability over time.

The G1085 includes accessories a 5/16-18M to #10-32F thread adapter, a 5/16-18 M/M stud with jam nuts, and a #10-32 M/M stud with jam nuts.


Features
  • Self-tightening cam mechanism effectively grips wires and tubing
  • Adjustable cam spacing accommodates a wide range of sample sizes
  • Easy engagement / disengagement of samples
  • Accepts samples of up to 25 mm wide

Dimensions
G1085 Adj. Dual Roller Grip
Dimensions-G1085 Adj. Dual Roller Grip


Specifications
Maximum capacity2,5 kN
Weight230 g

Related Products

G1103 Wire / Rope Grip


  • Effectively secures wire, rope, and other samples with bollard / capstan design.
  • Integrated eye end mounting - eye end adapter required.
  • Features rubber jaw faces

More details

G1103 Wire / Rope Grip

G1001 Wire Terminal Grips


  • Capacity: 1000 N (200 lb)
  • Thread: 5/16-18 UNC (Includes 5/16-18M to #10-32F adapter and #10-32M/M stud with jam nuts)
  • Sample size: 0-9.5 mm

More details

G1001 Wire Terminal Grips

G1002 Dual Roller Cam Grip


  • Capacity: 2500 N (500 lb)
  • Thread: #10-32 UNF
  • Sample size: 0-8.6 mm

More details

G1002 Dual Roller Cam Grip

Eye End Adapter For Mounting of Grips to Force Gauges / Sensors and Test Stands



More details

Eye End Adapter For Mounting of Grips to Force Gauges / Sensors and Test Stands

Thread Adapters Thread Adapters & Couplings


  • Different capacities available from 100 N to 9000 N
  • Connect gauges and load cells to fixtures with different thread
  • Connect male/male or female/female threads

More details

Thread Adapters Thread Adapters & Couplings

Downloads

Buy Now
Product

Product
Price
Quantity
135002
G1085 Dual roller grip, adjustable, 5/16-18F
€ 472,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
