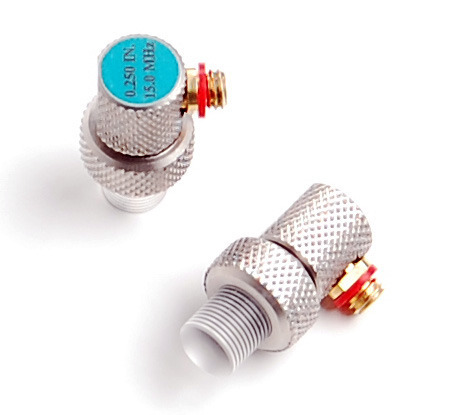

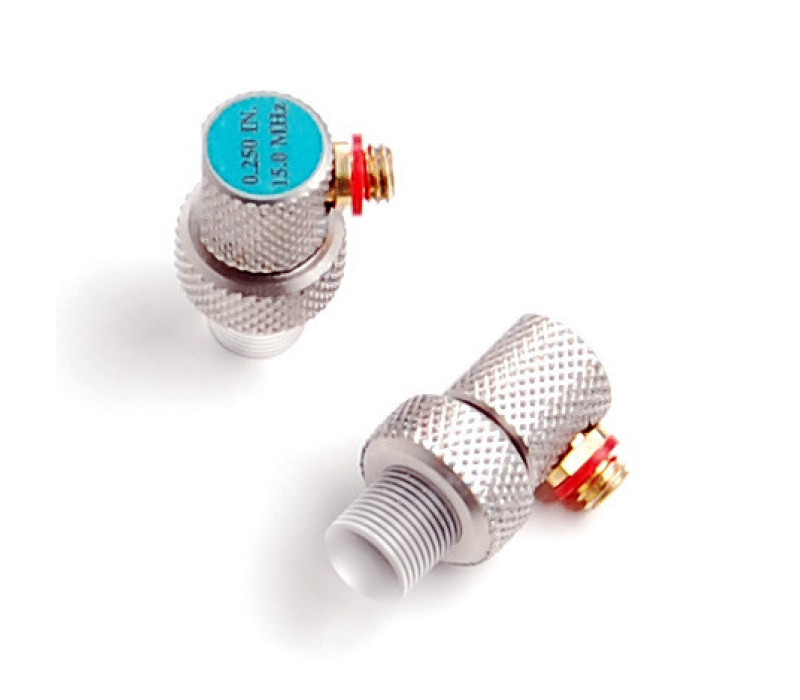

T-402 series delay-line transducers

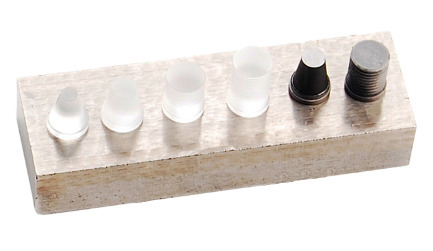

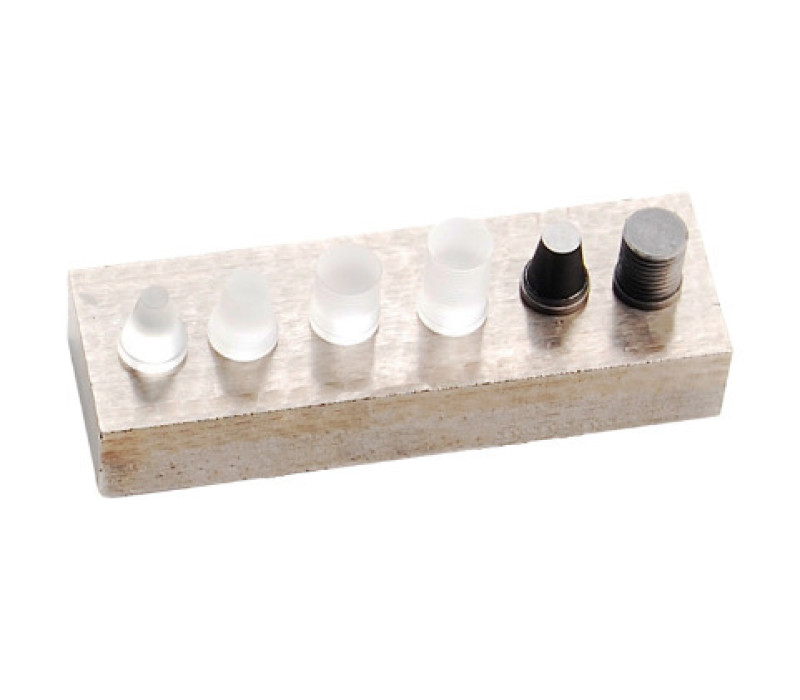

Available delay-line tips for T-402-X507 transducers

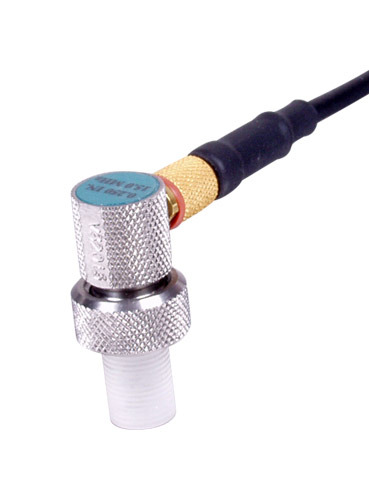

SINGLE ELEMENT DELAY-LINE TRANSDUCERS

High Precision in Thickness Measurement and Surface Defect Detection

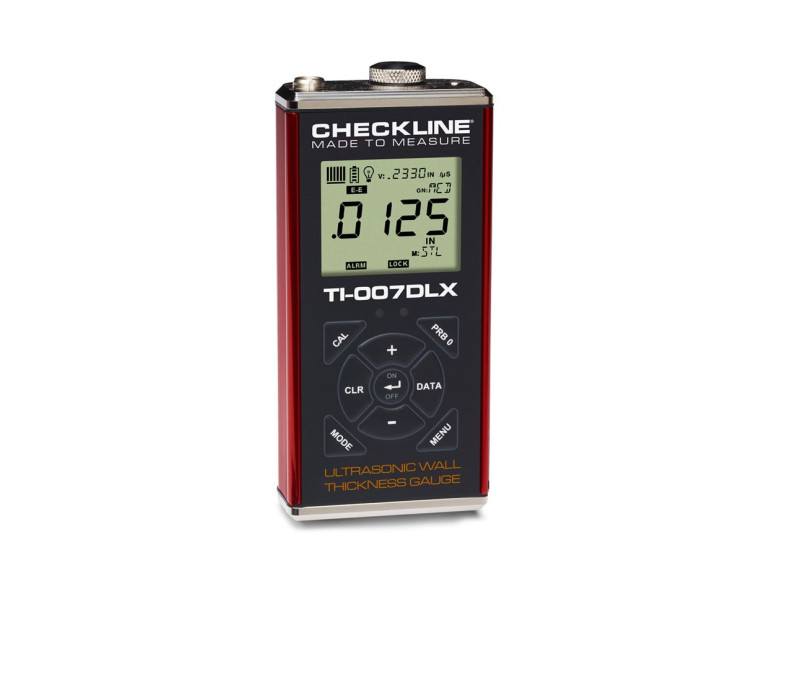

Checkline’s single-element delay-line transducers provide exceptional accuracy in ultrasonic thickness measurement and surface flaw detection. Capable of measuring wall thicknesses from as little as 0.15 mm, they are engineered for seamless integration with the TI-PVX and TI-007X Series ultrasonic thickness gauges.

Available in 15 MHz and 20 MHz versions, each probe features a 1/4" crystal and a side-mounted microdot connector. These high-resolution transducers are optimised for use on steel, aluminium, plastics and other non-metallic materials, offering versatility across multiple inspection modes.

Key Features:

Compact 3/16” Diameter: Designed for precision measurements on thin walls, restricted access points and small-radius curved surfaces.
Frequency Options: Available in 15 MHz (model T-402-5507) and 20 MHz (model T-402-6507) versions for enhanced resolution and adaptability.
Microdot Connector: Side-mounted microdot connection ensures a secure, reliable and easy-to-use interface with detachable cables.

Key Benefits:

Specialised Applications: Ideal for inspecting plastic and other non-metallic surfaces requiring high-resolution thickness measurement.
Adaptability: Replaceable delay-line tips extend probe service life and allow tailoring to project-specific applications.
Ergonomic Design: Compact form with side cable connection and interchangeable delay lines for easy use on small or tight-radius curved areas.
Reliable Performance: Superior near-surface resolution enables accurate defect detection and consistent quality assurance.
All transducers come with a Certificate of Conformity.

Contact us for more details or to place an order. Our specialists are ready to help you select the most suitable delay-line transducer for your application, ensuring precision, efficiency and reliability in your ultrasonic inspections.

€ 784,00

Shop now

Delay-Line Tips for T-402 Series probes

P/N	Diameter x length	Description	Standard/Option
F-000-7102 (old number X-231-0000)	7,35 x 9 mm	For all metals, short	Standard
F-000-7103 (old number X-241-0000)	7,35 x 12 mm	For all metals, long	Standard
X-633-0000	7,35 x 9 mm	Graphite for thin plastics, short (Use in PLAS mode)	Option
X-532-0000	4,5 x 9 mm	Conical tip for steel	Option
X-132-0000	3,175 x 9 mm	Conical tip for steel	Option
X-533-0000	4,5 x 9 mm	Graphite for thin plastics, short (Use in PLAS mode)	Option

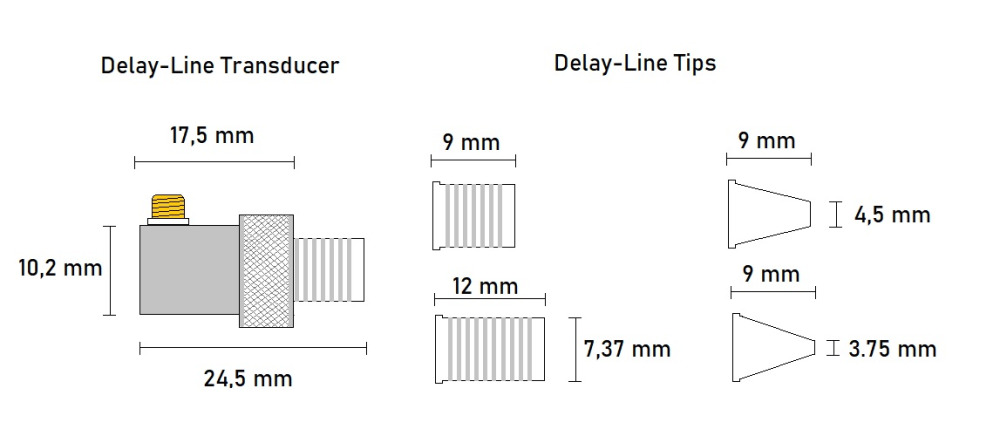

Delay-Line Transducer with Tips

The delay-line transducer is designed with a compact housing measuring 24.5 mm in total length, 17.5 mm body depth and 10.2 mm height. It is equipped with a microdot connector for secure attachment and reliable performance in precision ultrasonic applications.

Interchangeable delay-line tips are available in multiple sizes to suit different materials and inspection needs:

Cylindrical tips: 9 mm and 12 mm lengths, with a diameter of 7.37 mm.
Conical tips: 9 mm base diameter with end diameters of 4.5 mm or 3.75 mm for improved focus in narrow areas.

All dimensions are shown in millimetres.

Products

Item	Product	Price	Quantity	Action
126716	T-402-5507 Spare / Replacement 15 mHz Probe for TI-007X	€ 784,00
140358	T-402-6507 1/4" 20 mHz Probe for TI-007X	€ 784,00

Accessories

Item	Product	Price
126745	F-000-7102 Tip For TI-007X Standard Small	€ 26,00
126746	F-000-7103 Tip For TI-007X Standard Long	€ 26,00
126501	X-633-0000 Graphite Tip For TI-007X	€ 61,00
126311	X-532-0000 Cone Tip For TI-007 Probe	€ 26,00
126717	X-132-0000 Tip For TI-007 Small Cone	€ 26,00
126686	X-533-0000 Graphite Cone Tip Delay Line Probe	€ 67,00
126821	N-104-0020 Cable Lemo to Microdot (1.20 meter)	€ 91,00
139442	N-104-0020-KEV Transducer Cable with Kevlar Shield, Lemo to microdot Single ( 1.2 meter)	€ 132,00
135573	CF-AN-125ml Coupling Fluid 125ml Bottle	€ 9,95

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
