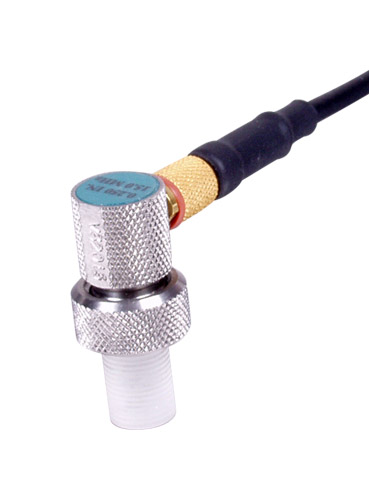

T-402-5507 Single Element Delay Line Transducer


Made in the USAThe 15MHz T-402-5507 Delay Line transducer is the most commonly used probe with a PX- and PVX gauges. The transducer is equipped with a 1/4" crystal and microdot connector with top entry.

When measuring in the E-E mode it can measure 0.006” to 0.400” in steel and aluminum.  Changing to I-E mode allows measurements to ~1.000”. In Plastics mode, measurements from 0.005” to 0.150”. Tapered delay lines are helpful for measuring on tubes and radiused corners. Graphite Delay lines can be helpful for measuring plastics that are similar in Impedance to Acrylic Delay Lines.

Acrylic delay tips will measure plastics if the material velocity is different from that of acrylic. If the velocities are similar, a graphite tip will need to be used. Measurement ranges in plastics will vary depending on the type of plastic measured.

NOTE: Standard delivery includes F-000-7102 and F-000-7103 delay line tips



Delay Line Tips
P/N Description Standard / Optional Image
F-000-7102 1/4" x 3/8"
for all metals
(Short)
Standard
F-000-7103 1/4" x 1/2"
for all metals
(Long)
Standard
X-633-0000 1/4" x 3/8"
Graphite Tip
for thin plastics
(Graphite Short)
Standard on "-GT" models
X-532-0000 3/16" x 3/8"
Conical Tip
for all metals
(Cone)
Optional
X-533-0000 3/16" x 3/8"
Graphite Tip
for thin plastics
(Graphite Cone)
Optional

Features
  • Spare / Replacement 15 MHz Probe for PX and PVX gauges

Related Products

Buy Now
Product

Product
Price
Quantity
126716
T-402-5507 Spare / Replacement 15 mHz Probe for TI-007
€ 696,00

Accessories

Product
Price
Quantity
126745
F-000-7102 Tip For TI-007X Standard Small
€ 21,00
126746
F-000-7103 Tip For TI-007X Standard Long
€ 21,00
126501
X-633-0000 Graphite Tip For TI-007X
€ 53,00
126311
X-532-0000 Cone Tip For TI-007 Probe
€ 21,00
126717
X-132-0000 Tip For TI-007 Small Cone
€ 21,00
126686
X-533-0000 Graphite Cone Tip Delay Line Probe
€ 59,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
