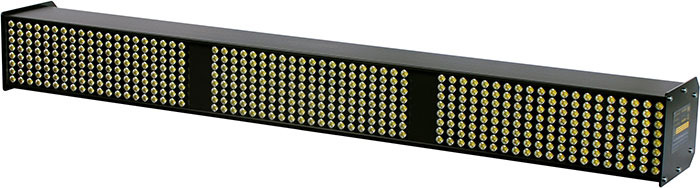

LS-36-LED LED stroboscope for inspection


Made in GermanyHigh-performance LED stroboscope for stationary attachment with powerful light output for uniform illumination of very large webs

The new Checkline LS-36-LED inspection stroboscope is designed for stationary attachment to machines and is suitable for various optical inspection works. This stroboscope has 480 high-performance LEDs, which are arranged in a 60 x 8 matrix to enable bright, sharp images with an even light distribution for web widths of up to 1200mm and wider. Additional tracks can be covered with a series connection of two or more stroboscopes in a master /slave arrangement. In this case, perfect synchronization is achieved by transmitting the trigger signal using a connecting cable.

The LS-36-LED comes with the latest industrially available high-performance LEDs, which will not have to be replaced over the entire product life. The particularly large illumination area, its excellent light intensity and inaudible operation make this stroboscope the perfect choice for even the most difficult industrial application with very unfavorable lighting conditions. It is particularly suitable for continuous use, such as in the printing industry, steel processing industry or in label printing plants.

Advantages of the LS-36-LED:

High light output: 480 high-performance LEDs enable uniform illumination during various inspection work.

High focus: With an adjustable flash duration of 1-1000 µseconds, you can easily find the perfect balance between light intensity and image sharpness.

Flexible adjustment for all applications: The stroboscope can be controlled directly by the trigger signal of your system without further adjustments or control units. If you use several trigger signals simultaneously, you can toggle by using the switch on the side.

LS-FCM flash control module: A simple and inexpensive way to control the flash frequency. This control module just simply has to be plugged into one of the two inputs on the back of the device.

LS-SCU stroboscope control: For setting the flash frequency, phase shift, delay time and the trigger divider. This device is connected to the strobe by a cable and works like a remote control when the strobe is out of range.


Features
  • Lightintensity 14.000 Lux
  • LEDs do not have to be replaced during the life of the product
  • Extra wide and even illumination area for web widths up to 1200mm and wider
  • Flash rates of up to 120,000 FPM (2000 Hz) for high speed applications
  • For webs over 1200mm, two or more stroboscopes can be connected in series
  • Adjustable light intensity and sharpness
  • Including universal power supply

Luminous intensity (lux) vs. distance

Lichtstärke (LUX) vs. Entfernung


Overview of the LED strobe models
Model LEDs Array size Brightness (peak)

Housing Width

LS-5-LED 80 10 x 8 6000 Lux 150 mm
(6 inch)
LS-9-LED 120 15 x 8 7500 Lux 230 mm
(9 inch)
LS-9-LED-WB 120 5 x 8 (3x) 7500 Lux 440 mm
(17 inch)
LS-18-LED 200 25 x 8 9000 Lux 440 mm
(17 inch)
LS-36-LED 480 60 x 8 14000 Lux 948 mm
(37 inch)

Accessories

LS-FCM Flash Control Module



More details

LS-FCM Flash Control Module 126811

LS-SCU Remote Control Unit



More details

LS-SCU Remote Control Unit  126476

LS-GAPSENSOR Label Sensor for Triggering On Label Gaps


  • The LS-GAPSENSOR is supplied with a DIN connector for direct connection from CHECK-LINE LS-10 & LS-15 linear strobes.
  • Only label sensor on the market that is immune to the interference caused by a strobe.
  • IP66/Nema 4 rating provides excellent physical protection and is waterproof.

More details

LS-GAPSENSOR Label Sensor for Triggering On Label Gaps 126810

LS-REGSENSOR Registration Mark Sensor


  • Includes remote Autoset™ and Selectable Pulse Stretcher
  • Single, one pushbutton set-up
  • Color Mark registration detection on transparent and translucent, including many metalized films and paper

More details

LS-REGSENSOR Registration Mark Sensor 126809

Related Products

LS-18-LED LED Fixed-Mount Linear Stroboscope


  • Extremely bright and uniform light distribution for web widths up to 20" (500mm) and wider.
  • Light intensity of 9000 Lux peak from 200 LEDs
  • Connections include two trigger inputs and one trigger output. Power can be connected in either of these three locations.

More details

LS-18-LED LED Fixed-Mount Linear Stroboscope

LS-9-LED LED Fixed-Mount Linear Stroboscope


  • Extremely bright and uniform light distribution over an area of 300 x 500mm (12" x 20")

More details

LS-9-LED LED Fixed-Mount Linear Stroboscope

LS-5-LED LED Fixed-Mount Linear Stroboscope


  • Extremely bright and uniform light distribution for web widths up to 12" (300mm) and wider.

More details

LS-5-LED LED Fixed-Mount Linear Stroboscope

Specifications
LEDs: 480
Frequency range: 0 - 120,000 FPM (flashes per minute)
Power supply: 24V DC (21.6….26.4VDC) / 3.0A (72 Watts) Universal AC power supply INCLUDED
External Trigger Input: 3 - 30 V / max. 5 mA Potential-free optocoupler
Trigger output: For parallel connection of several stroboscopes
Light Intensity: Adjustable
Light intensity Single Flash: 1.4 Mega-Lux / 30 cm / 12"
Illumination Area: 30 x > 100 cm / 12 x > 40"
Light spread: 2 meter width (78") at 60 cm (24") distance from web
Flash coulour: Approx. 5,000 - 8,300 K
Material housing: Aluminium
Dimension: 948 mm x 130 mm x 112 mm
Weight: 4.200 g
Ambient temperature: 0 - 40 °C (32 - 104 °F)
Storage temperature: -25 - 70 °C (-13 - 158 °F)
Humidity: max. 95% not condensing
Mounting Holes: Located on underside of housing: (1) 1/4 - 20UNC in center
Guarantee: 1 year

Buy Now
Product

Product
Price
Quantity
LS-36-LED Linear LED Stroboscope with 480 LEDs
