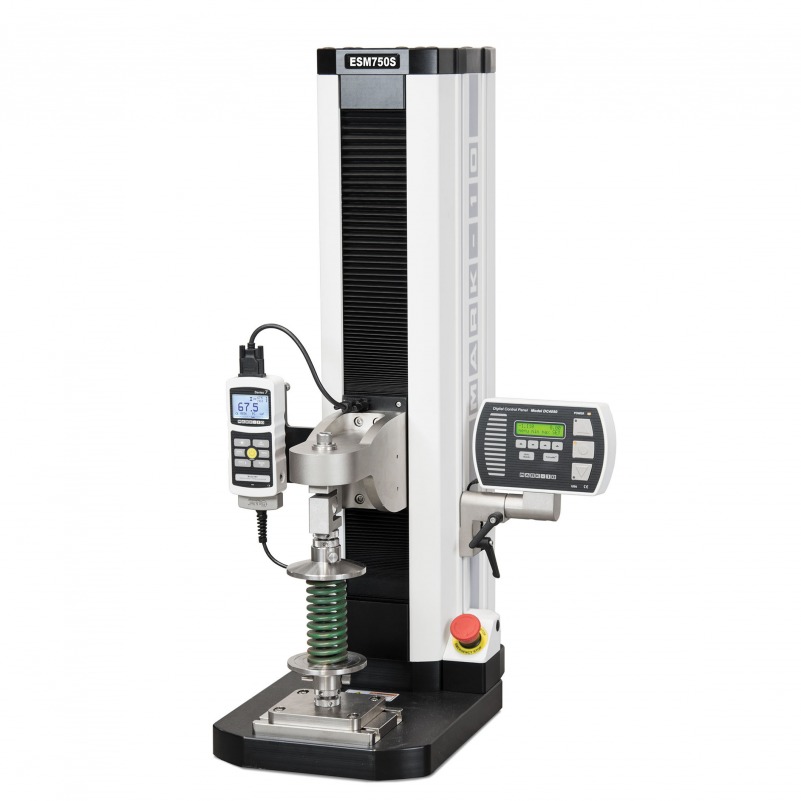

ESM750S Our latest motorized test stand with compact design and a generous load capacity of 3,4 kN


Made in  USAThe ESM750S is one of two brand new highly capacity single-column test stands we have added to our assortment. It is also made in the USA and represents the follow-up model for our TSFM500-DC test stand. With a maximum travel of 360 mm at a maximum load capacity of 3,4 kN it offers the possibility to do various compression and tension measurements.

Like the whole ESM series the ESM750S can be configurated with modularly controller functions to achieve the best possible testing environment. Topped off with a large assortment of grips & attachments as well as the choice between a force gauge or an external load cell mount it is suitable for production and laboratory use.

The motorized ESM750S provides clearance and depth dimensions as well as generous travel what qualifies it for a wide range of applications such as break detection, travel indication, cycling and much more. A detailed overview about the available configurations can be found in the table below.

The user friendly menu can be password protected to avoid unauthorized changements in the test settings. The test speed, force, distance limits, cycling any many other functions can be configurated directly over the control panel.

The force and travel data of the ESM750S force test stand can be transfered to a computer. There is a free version of the MESUR™ gauge software available at no extra costs. Advanced software for graphing and analysis of the retrieved data is available upon extra costs. Additionally the test stand can be fully controlled by a PC with a customer-written program in any language supporting ASCII communications.




Features

  • Ergonomic design, with smart, clean cable management
  • Compatible with indicators and load cells, as well as force gauges
  • Adjustable, removal controller with intuitive menu navigation
  • USB data output: force vs. time or force vs. distance
  • Motor-driven stepper, producing smooth and quiet operation with no speed variation under load
  • Warranty: 3 years
  • Conformity: CE mark

Functions

Control unit

The adjustable-angle control unit is comprised of a robust aluminum housing,  perfect for industrial production environments. It's easy to use with many optional additional functions such as the FollowMe function. Since the control unit is removable, it is also suitable for remote control or for table mounting with an optional mounting kit.





Travel limiters

The measuring path can be adjusted by upper and lower travel limiters and thus stops the test bench with a repeatability of 0.025 mm.






Adjustable mounting plate for attaching handles & accessories

The mounting plate can be repositioned for proper alignment on the X and Y axis. The mounting plate is provided with a matrix of threaded holes for mounting handles and accessories.







Modular construction

All the electronics are installed in a single panel, which is easy to remove for updates and maintenance.







FollowMe

The FollowMe ™ feature allows you to control the strength level manually. By applying pressure to the force gauge shaft or load cell, the crosshead positions itself at different rates of speed according to the applied pressure. Its high adaptability makes it suitable for quick positioning as well as for fine tuning.






Force gauge

To take advantage of the full range of features of your dynamometer, you need a Series 5 or 7 force gauge that is capable of both,  force versus time and force versus displacement measurements combined with a data interface.





Handles and pull-out handle adapter

A wide range of different holders, clamps and printing plates, etc. allowing the test bench to be adapted to almost any test situation.








Indicator / measuring cell adapter

To mount a series 5i or 7i display and to mount a R01 or R03 force sensor.







MESUR MESURgauge is a measuring and analysis software

Captures the data available via the USB port of the ESM750S, enabling display of the data in graphical and tabular formats, as well as offering conversion into statistics and other reporting and output tools.


Optional Controller Functions

Feature Part. No. Description Requirements
FollowMe SF008

Crosshead movement responds to manually pushing or pulling on the force gauge shaft or load cell. Increasing force produces greater speeds. Ideal for setups and quick positioning.

• Series 7 or 5 gauge or indicator

Travel indication SF009-1

Travel is indicated on the control unit display, with out via USB. An internal scale utilizing Renishaw technology produces significantly higher accuracy than with conventional rotary encoder-base designs. Backlash and nonlinearity are virtually eliminated.

• Series 7 or 5 gauge or indicator

• Can not be added in field

Computer control SF010

The ESM750S may be fully controlled by a PC through a custom-written program in any language supporting ASCII communications. Also responds to the legacy Chatillon TCD command set and legacy Nexygen TCD software (not available from Checkline Europe)

• Series 7 or 5 gauge or indicator

• SF009 Travel indication

Programmable travel limits SF011

The stand stops at or cycles between programmable upper and lower travel distances

• SF009 Travel indication
Overload protection SF012 Protects a force sensor or force gauge against overload. Set the desired percentage of full scale of the gauge. Adjustable analoge output voltage setting allows the stand to interface with virtually any gauge with analog output. • Series 7 or 5 gauge or indicator
Auto return SF013

The crosshead moves to a limit switch, force set point, travel position, or break, then stops and reverses direction at full speed to the other limit. Selectable reversing at force set point

• Reversing at force set point: Series 7 or 5 gauge or indicator

• Reversing at travel limit: SF011 programmable travel limits option

• Reversing at break: SF019 break detection option

Cycling / dwell time SF014

Same function as auto return but with the ability to program up to 100.000 cycles. Programmable dwell time for upper and lower limits (set independently) can be set up for up to 10.000 seconds.

•  Same as auto return, at the same speed in each direction. Add SF016 for independet up and down speeds
Independent Up and Down speeds SF016 Individually configure speeds for the up and down directions -
Low speed extension SF017 Extends the standard speed range down to 0,02 mm/min. -
High speed extension SF018-1 Extends the max speed to 1,525 mm/min. -
Break detection SF019

Crosshead stops at a programmable drop in force

•  Series 7 or 5 gauge or indicator
Load holding SF020

Dynamically adjusts the crosshead position to maintain a specified load for an indefinite or specified period of time.

•  Series 7 or 5 gauge or indicator
• For a specified dwell time SF014 is required
Preload / sample touch SF021 Stops the corsshead and/or zeroes the travel display at an initial preload. Useful in tensile, compression, spring, elongation, and other applications. Preload is progammable as a percentage of force gauge/load cell full scale. Three modes: (1) stop, (2) stop and zero and (3) zero without stopping. •  Series 7 or 5 gauge or indicator
Profiles SF022

Save and recall sets of test parameters, such as speeds, travel limits, preload, etc. Maximum of 50 profiles may be stored.

-
Complete options package SFCOMP-1 Includes all functions listed above. Requires a Series 7 or 5 gauge or indicator

Related Products

Series-5 Advanced Digital Force Gauge


  • High-speed 7,000 Hz peak sampling rate
  • Live load bar graph with set point markers
  • Averaging mode - calculates average readings over time
  • External trigger mode - for switch contact testing or remotely stopping display update
  • Programmable set points, with alarms and outputs
  • USB, RS-232, Mitutoyo, and analog outputs
  • Large backlit graphic display
  • Peak readings always displayed
  • 1,000-point data memory with statistics and outputs
  • Password protection, configurable for individual keys
  • Configurable audio alarms and key tones
  • Aluminum construction
  • Includes NIST Traceable Calibration Certificate

More details

Series-7 Professional Digital Force Gauge


  • High-speed sampling rate: 14,000 Hz
  • Individual data point memory for up to 5,000 data points, downloadable to PC
  • 5 measurement units plus Coefficient of Friction, and user-defined unit with configurable name
  • Continuous data capture of up to 5,000 data points, at up to 14,000 Hz, downloadable to a PC
  • USB, RS-232, Mitutoyo, and analog outputs
  • Programmable set points, with indicators and outputs
  • Averaging mode - calculates average readings over time
  • External trigger mode - for switch contact testing or remotely stopping display update
  • Password protection, configurable for individual keys and calibration
  • 1st / 2nd peak detection
  • Automatic output / data storage / zeroing upon various event completions
  • Sample break detection with auto functions, including stopping movement on the ESM301 test stand
  • Programmable footswitch command string

More details

Category Mark-10 Attachments


More details

Series 5I Advanced Digital Force/Torque Indicator


  • Interchangeable force and torque sensors through Plug & Test technology
  • Password protection for individual keys and calibration
  • USB, RS-232, Mitutoyo, and analog outputs
  • 1,000-point data memory with statistics (min, max, mean, standard deviation) and outputs
  • Programmable set points, with alarms and outputs
  • Averaging mode - calculates average readings over time
  • Automatic data output via USB/RS-232
  • Sensor password protection, for preventing use of an unauthorized sensor
  • High-speed 7,000 Hz sampling rate
  • Large backlit graphic display
  • Live load bar graph with set point markers
  • Peak readings and set points always displayed
  • External trigger mode - for switch contact testing or remotely stopping display update
  • 5 selectable units of measurement
  • Configurable audio alarms and key tones
  • CE mark

More details

Series 7I Advanced Force/Torque Indicator


  • Interchangeable force and torque sensors through Plug & TestTM technology (sensors are sold separately)
  • Password protection for individual keys and calibration
  • Continous data capture of up to 5,000 data points, at up to 14,000 Hz, downloadable to a PC
  • USB, RS-232, Mitutoyo, and analog outputs
  • Automatic output / data storage / zeroing upon various event completions
  • 5 units of measurement, plus Coefficient of Friction and user-defined unit with configurable name
  • Programmable set points, with indicators and outputs
  • External trigger mode - for switch contact testing or remotely stopping display update
  • Sensor password protection, for preventing use of an unauthorized sensor
  • High-speed 14,000 Hz sampling rate
  • Individual data point memory for up to 5,000 readings
  • Sample break detection with auto functions, including stopping movement of a Mark-10 motorized test stand
  • 1st / 2nd peak detection
  • Programmable footswitch command string
  • Averaging mode - calculates average readings over time
  • CE mark

More details

MESURgauge Mesurgauge Load & Travel Analysis Software


  • Real time tabular and graphical data displaying load vs. time or load vs. travel
  • Sends data from a force or torque gauge and travel display to a PC for further analysis
  • Configurable start and stop test triggers (time, load, number of samples, or travel)
  • Statistical calculations (minimum, maximum, average, area under curve) for a user-selectable data range
  • Graph manipulation tools, including zooming, rescaling, panning, titles, and more
  • One-button export to Excel
  • Create customizable reports and report templates
  • Compatible with all Mark-10, Imada, Shimpo and all other force and torque measuring instruments
  • Save and recall test setups and test data
  • View real time test data through an enlarged instrument display

More details


Specifications

Load capacity:
3.4 kN < 900 mm/min
2.3 kN > 900 mm/min
Maximum travel distance:
360 mm
Speed range:
Standard: 10-600 mm/min
Optional: 0.02 - 1,525 mm/min
Speed setting accuracy:
±0.2% of setting
Speed variation with load:
±0% [stepper motor driven]
Travel accuracy:
±0,05 mm per 250 mm
Travel resolution:
0,02 mm
Limit switch repeatability:
0,03 mm
Power:
Universal input 80-240 VAC, 50/60 Hz
Weight:
Test stand: 68kg
Shipping weight: 88kg
Conformance:
CE mark
Warranty:
3 years

Buy Now

Products


Product name
Price
Quantity
ESM-750SFG-E Test stand with force gauge mount, motorized, 3,4 kN
€ 4.986,00

ESM-750SLC-E Test stand with load cell mount, motorized, 3.4 kN
€ 4.986,00



Accessories


Product name
Price
Quantity
SF-008 FollowMeTM force-based manual positioning
€ 425,00

SF-009-1 Travel indication with USB output
€ 1.130,00

SF-010 Computer control via USB
€ 895,00

SF-011 Programmable travel set points
€ 707,00

SF-012 Integrated overload protection
€ 613,00

SF-013 Auto return
€ 425,00

SF-014 Cycling / dwell time
€ 613,00

SF-016 Independent up and down speeds
€ 378,00

SF-017 Extended speed range, low
€ 425,00

SF-018-1 Extended speed range, high
€ 425,00

SF-019 Break detection
€ 425,00

SF-020 Loadholding
€ 613,00

SF-021 Preload / sample touch
€ 519,00

SF-022 Profiles
€ 707,00

SF-COMP-1 Complete options package for ESM1500S / ESM750S
€ 4.845,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request
