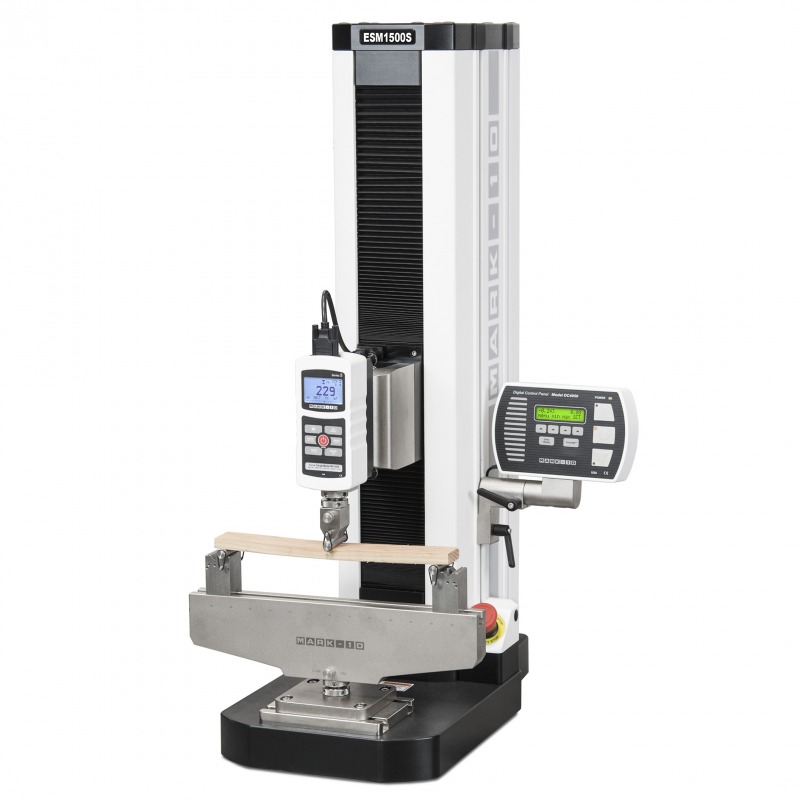

ESM1500S New motorized force test stand with high capacity


Made in  USAThe ESM1500S force test stand is new in the ESM Serie and is the smaller equivalent of our  renowned ESM1500. It combines the maximum capicty of 6.7 kN (1500 lbF) of the ESM1500 with the compact size of the also new ESM750S. The ESM 1500S offers you a 360 mm travel combined with a maximal capacity of 6.7 kN.

Due to its generous travel and clearance, the ESM1500S is suitable for a variety of applications such as break testing, cycling, limit testing to a load or distance, loadholding, elongation testing, tensile testing, compression testing, and more in both Quality Management as well as laboratory test environments. The test stand can be used with a mount for force gauges or with a separate load cell and a corresponding force indicator.

Thanks to the the optional FollowMe™ option, the test stand allows for an easy, hassle free setup,  just simply using your hand as a guide: the test stand follows your hand movement through push and pull pressure on the load to move the crosshead at a dynamically variable speed. The ESM1500S stand can alternatively also be set up with the help of the side-mounted, angle-adjustable control panel.

With the right grips and accessories, the force stand is suitable for a wide variety of test applications, such as fracture tests, determination of maximum load or distance, elongation tests and all pressure and tensile tests. The extensive configuration menu can be protected with a password and offers different setting options depending on the ordered functionality such as, for example, the definition of measuring cycles, measuring speed and force and distance limits. When the device is delivered, all modular options are activated free of charge for the first 160 operating hours and can, if necessary, also be added afterwards.

The ESM1500S is delivered with MESUR™Gauge Lite Software and allows for exportation of measuring data to a PC or Excel file. The optional MESUR™Gauge or MESUR™Gauge Plus Software offer further functions and data analysis tools. In addition to the free available MESUR™Gauge Lite, the MESUR™Gauge Plus Software can be tested CE for 90 days.


Features

  • 2 versions: mount for force gauge and external load cell
  • MESUR™ Gauge software allows for data processing via an USB interface
  • Compact design combined with high capacity 6.7 kN
  • Modular design with an easy to remove control unit
  • Low-noise stepper motor
  • Adjustment of speed made easy by the control unit
  • The display is removable and includes an inuitive menu navigation
  • CE mark
  • Warranty: 3 years
  • Pass word protected options menu

Functions

Control unit

The adjustable-angle control unit is comprised of a robust aluminum housing,  perfect for industrial production environments. It's easy to use with many optional additional functions such as the FollowMe function. Since the control unit is removable, it is also suitable for remote control or for table mounting with an optional mounting kit.





Travel limiters

The measuring path can be adjusted by upper and lower travel limiters and thus stops the test bench with a repeatability of 0.025 mm.








Adjustable mounting plate for attaching handles & accessories

The mounting plate can be repositioned for proper alignment on the X and Y axis. The mounting plate is provided with a matrix of threaded holes for mounting handles and accessories.







Modular construction

All the electronics are installed in a single panel, which is easy to remove for updates and maintenance.









FollowMe

The FollowMe ™ feature allows you to control the strength level manually. By applying pressure to the force gauge shaft or load cell, the crosshead positions itself at different rates of speed according to the applied pressure. Its high adaptability makes it suitable for quick positioning as well as for fine tuning.






Force gauge

To take advantage of the full range of features of your dynamometer, you need a Series 5 or 7 force gauge that is capable of both,  force versus time and force versus displacement measurements combined with a data interface.







Handles and pull-out handle adapter

A wide range of different holders, clamps and printing plates, etc. allowing the test bench to be adapted to almost any test situation.






Indicator / measuring cell adapter

To mount a series 5i or 7i display and to mount a R01 or R03 force sensor.







MESUR MESURgauge is a measuring and analysis software

Captures the data available via the USB port of the ESM1500S, enabling display of the data in graphical and tabular formats, as well as offering conversion into statistics and other reporting and output tools.


Additional features

Feature Part. No. Description Requirements
FollowMe SF008

Crosshead movement responds to manually pushing or pulling on the force gauge shaft or load cell. Increasing force produces greater speeds. Ideal for setups and quick positioning.

• Series 7 or 5 gauge or indicator

Travel indication SF009-1

Travel is indicated on the control unit display, with out via USB. An internal scale utilizing Renishaw technology produces significantly higher accuracy than with conventional rotary encoder-base designs. Backlash and nonlinearity are virtually eliminated.

• Series 7 or 5 gauge or indicator

• Can not be added in field

Computer control SF010

The ESM1500S may be fully controlled by a PC through a custom-written program in any language supporting ASCII communications.

• Series 7 or 5 gauge or indicator

• SF009 Travel indication

Programmable travel limits SF011

The stand stops at or cycles between programmable upper and lower travel distances.

• SF009 Travel indication
Overload protection SF012 Protects a force sensor or force gauge against overload. Set the desired percentage of full scale of the gauge. Adjustable analoge output voltage setting allows the stand to interface with virtually any gauge with analog output. • Series 7 or 5 gauge or indicator
Auto return SF013

The crosshead moves to a limit switch, force set point, travel position, or break, then stops and reverses direction at full speed to the other limit. Selectable reversing at force set point

• Reversing at force set point: Series 7 or 5 gauge or indicator

• Reversing at travel limit: SF011 programmable travel limits option

• Reversing at break: SF019 break detection option

Cycling / dwell time SF014

Same function as auto return but with the ability to program up to 100.000 cycles. Programmable dwell time for upper and lower limits (set independently) can be set up for up to 10.000 seconds.

•  Same as auto return, at the same speed in each direction. Add SF016 for independet up and down speeds
Independent Up and Down speeds SF016 Individually configure speeds for the up and down directions -
Low speed extension SF017 Extends the standard speed range down to 0,02 mm/min. -
High speed extension SF018-1 Extends the max speed to 1,525 mm/min. -
Break detection SF019

Crosshead stops at a programmable drop in force

•  Series 7 or 5 gauge or indicator
Load holding SF020

Dynamically adjusts the crosshead position to maintain a specified load for an indefinite or specified period of time.

•  Series 7 or 5 gauge or indicator
• For a specified dwell time SF014 is required
Preload / sample touch SF021 Stops the corsshead and/or zeroes the travel display at an initial preload. Useful in tensile, compression, spring, elongation, and other applications. Preload is progammable as a percentage of force gauge/load cell full scale. Three modes: (1) stop, (2) stop and zero and (3) zero without stopping. •  Series 7 or 5 gauge or indicator
Profiles SF022

Save and recall sets of test parameters, such as speeds, travel limits, preload, etc. Maximum of 50 profiles may be stored.

-
Complete options package SFCOMP-1 Includes all functions listed above. Requires a Series 7 or 5 gauge or indicator

Related Products

Series-5 Advanced Digital Force Gauge


  • High-speed 7,000 Hz peak sampling rate
  • Live load bar graph with set point markers
  • Averaging mode - calculates average readings over time
  • External trigger mode - for switch contact testing or remotely stopping display update
  • Programmable set points, with alarms and outputs
  • USB, RS-232, Mitutoyo, and analog outputs
  • Large backlit graphic display
  • Peak readings always displayed
  • 1,000-point data memory with statistics and outputs
  • Password protection, configurable for individual keys
  • Configurable audio alarms and key tones
  • Aluminum construction
  • Includes NIST Traceable Calibration Certificate

More details

Series-7 Professional Digital Force Gauge


  • High-speed sampling rate: 14,000 Hz
  • Individual data point memory for up to 5,000 data points, downloadable to PC
  • 5 measurement units plus Coefficient of Friction, and user-defined unit with configurable name
  • Continuous data capture of up to 5,000 data points, at up to 14,000 Hz, downloadable to a PC
  • USB, RS-232, Mitutoyo, and analog outputs
  • Programmable set points, with indicators and outputs
  • Averaging mode - calculates average readings over time
  • External trigger mode - for switch contact testing or remotely stopping display update
  • Password protection, configurable for individual keys and calibration
  • 1st / 2nd peak detection
  • Automatic output / data storage / zeroing upon various event completions
  • Sample break detection with auto functions, including stopping movement on the ESM301 test stand
  • Programmable footswitch command string

More details

Series 5I Series 5I Advanced Digital Force/Torque Indicator


  • Interchangeable force and torque sensors through Plug & Test technology
  • Password protection for individual keys and calibration
  • USB, RS-232, Mitutoyo, and analog outputs
  • 1,000-point data memory with statistics (min, max, mean, standard deviation) and outputs
  • Programmable set points, with alarms and outputs
  • Averaging mode - calculates average readings over time
  • Automatic data output via USB/RS-232
  • Sensor password protection, for preventing use of an unauthorized sensor
  • High-speed 7,000 Hz sampling rate
  • Large backlit graphic display
  • Live load bar graph with set point markers
  • Peak readings and set points always displayed
  • External trigger mode - for switch contact testing or remotely stopping display update
  • 5 selectable units of measurement
  • Configurable audio alarms and key tones
  • CE mark

More details

Series 7I Advanced Force/Torque Indicator


  • Interchangeable force and torque sensors through Plug & TestTM technology (sensors are sold separately)
  • Password protection for individual keys and calibration
  • Continous data capture of up to 5,000 data points, at up to 14,000 Hz, downloadable to a PC
  • USB, RS-232, Mitutoyo, and analog outputs
  • Automatic output / data storage / zeroing upon various event completions
  • 5 units of measurement, plus Coefficient of Friction and user-defined unit with configurable name
  • Programmable set points, with indicators and outputs
  • External trigger mode - for switch contact testing or remotely stopping display update
  • Sensor password protection, for preventing use of an unauthorized sensor
  • High-speed 14,000 Hz sampling rate
  • Individual data point memory for up to 5,000 readings
  • Sample break detection with auto functions, including stopping movement of a Mark-10 motorized test stand
  • 1st / 2nd peak detection
  • Programmable footswitch command string
  • Averaging mode - calculates average readings over time
  • CE mark

More details

Category Mark-10 Attachments


More details

MESURgauge Mesurgauge Load & Travel Analysis Software


  • Real time tabular and graphical data displaying load vs. time or load vs. travel
  • Sends data from a force or torque gauge and travel display to a PC for further analysis
  • Configurable start and stop test triggers (time, load, number of samples, or travel)
  • Statistical calculations (minimum, maximum, average, area under curve) for a user-selectable data range
  • Graph manipulation tools, including zooming, rescaling, panning, titles, and more
  • One-button export to Excel
  • Create customizable reports and report templates
  • Compatible with all Mark-10, Imada, Shimpo and all other force and torque measuring instruments
  • Save and recall test setups and test data
  • View real time test data through an enlarged instrument display

More details


Specifications

Load capacity:
6.7 kN < 1,525 mm/min 4.5 kN > 1,525 mm/min
Maximum travel distance:
360 mm
Speed range:
Standard: 10 - 600 mm/min
Optional: 0.02 - 2,300 mm/min
Speed setting accuracy:
±0.2% of setting
Speed variation with load:
±0% [stepper motor driven]
Travel accuracy:
±0,05 mm per 250 mm
Travel resolution:
0,02 mm
Limit switch repeatability:
0,03 mm
Power:
Universal input 80-240 VAC, 50/60 Hz
Weight:
Test stand: 72 kg
Shipping weight: 93 kg
Conformity:
CE
Warranty:
3 years

Buy Now

Products


Product name
Price
Quantity
ESM-1500SFG-E Test stand with force gauge mount, motorized, 6.7 kN
€ 6.230,00

ESM-1500SLC Test stand with load cell mount, motorized, 6.7 kN
€ 6.230,00



Accessories


Product name
Price
Quantity
SF-008 FollowMeTM force-based manual positioning
€ 446,00

SF-009-1 Travel indication with USB output
€ 1.188,00

SF-010 Computer control via USB
€ 941,00

SF-011 Programmable travel set points
€ 743,00

SF-012 Integrated overload protection
€ 644,00

SF-013 Auto return
€ 446,00

SF-014 Cycling / dwell time
€ 644,00

SF-016 Independent up and down speeds
€ 397,00

SF-017 Extended speed range, low
€ 446,00

SF-018 Extended speed range, high
€ 446,00

SF-019 Break detection
€ 446,00

SF-020 Loadholding
€ 644,00

SF-021 Preload / sample touch
€ 545,00

SF-022 Profiles
€ 743,00

SF-COMP-1 Complete options package for ESM1500S / ESM750S
€ 5.093,00

AC1054 Base plate, multiple center hole threads
€ 125,00

AC1055 Base plate, matrix of threaded holes
€ 125,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request
