TSF/TSFH series manual 5000 N force test stand

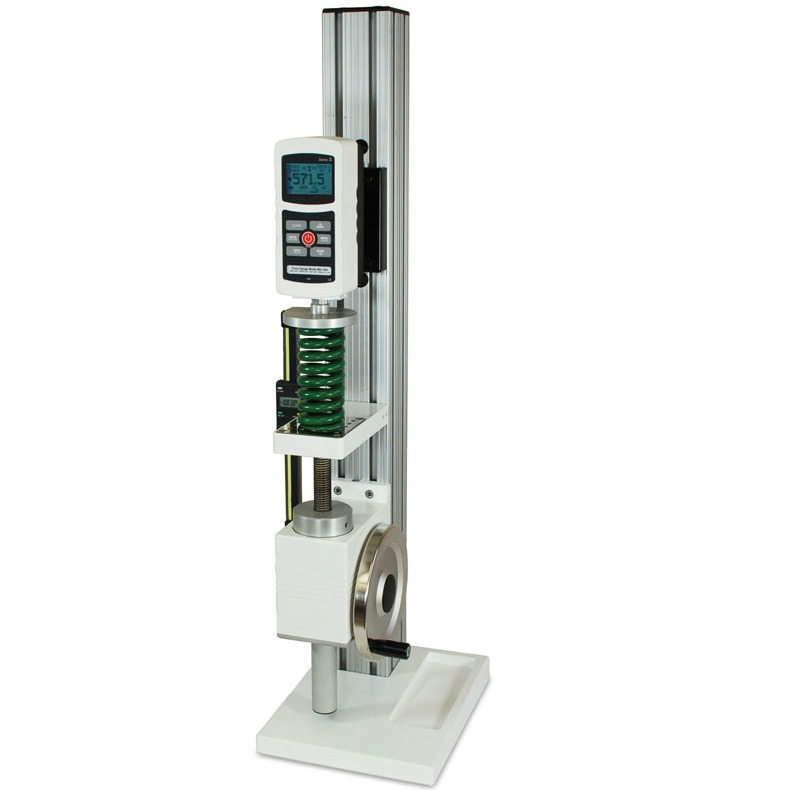

Made in the USAThe TSF  and TSFH test stands are developed for more heavy duty force testing like product integrity testing, destructive testing, spring testing or other types of testing that require up to 5kN tension or compression force.
With its rigid 76 x 76mm extruded aluminum column, large side mounted hand wheel and platform with removable threaded holed surface this test stand is strong and flexible for a wide variety of force test applications.

Available in horizontal and vertical version with provisions to attach the stands to a work surface. The moving part of this stand is mounted to the column below the force gauge bracket, this holds the force gauge in a stationary position moving the base plate up and down. There is a space of 110mm from the column to the center of the measurement position to accommodate wider test samples.

The TSF(H) test stands come in a kit with a number of standard accessories, depending on the version, vertical or horizontal.

The test setup can be made complete using Mark 10 digital force gauges, attachments and gripping fixtures.
In addition a digital travel display, TSF001, with automated data collection SPC output, is available.
For output to a pc a cable, AC1112, and a communication adapter, MU100, are required.
A set of wall mounts, TSF002, accommodate adapting the test stand to a bench or wall instead of the base.
Column extensions of 305, 610 or 1065mm make it possible to test larger samples. Column extensions just increase the sample clearance they do not change the travel distance.

The reversible gauge mounting plate makes this test stand compatible with force gauges of all capacities.




Features
  • Loading table with 25 #10-32 UNF holes for fixture mounting
  • Smooth hand wheel operation
  • Available in vertical and horizontal orientations.
  • Compatible with all Mark-10 force gauges, accessories and grips
  • Optional digital travel display

Manual test stand comparison
ModelForce capacityMaximum test travelLoading methodTravel rateMaximum, sample clearance
ES10500N229mmSpring loaded lever26,7mm / lever rev.229mm
ES10500N229mmSpring loaded lever26,7mm / lever rev.229mm
ES20500N229mmTop mounted hand wheel1,5mm / wheel rev.229mm
ES301000N330mmSide mounted hand wheel1,3mm / wheel rev.356mm
TSA750(H)3750N95mm with travel stops
152 without travel stops
Lever with rack & pinion, lever can be positioned in 30° increments76,2mm / lever rev.Vertical 267mm
Horizontal 368mm
TSB100500N95mm with travel stops
152 without travel stops
Lever with rack & pinion, lever can be positioned in 30° increments76,2mm / lever rev.330mm
TSC1000(H)5000N89mmInline hand wheel2,5mm / wheel rev.Vertical 254mm
Horizontal 330mm
TSF(H)5000N102mmSide mounted hand wheel0,34mm / wheel rev.Vertical 356mm
Horizontal 459mm
- Maximum travel and/or clearence depends on the grips or fixtures used during testing. The dimensions indicate distances without the use of grips or fixtures. - Column extensions are available for all test stands except ES05, ES10 and ES20. - Models with (H) are available in vertical and horizontal versions

Complete Kit

The TSF and/or TSFH test stands come with the following accessories:

  • G1009 compression plate, 2” dia.
  • G1009-1 compression plate, 3” dia.
  • G1028 small hook
  • G1030 thread adapter, 5/16-18M to #10-32F
  • G1035 large hook
  • G1037 coupling, 5/16-18 F/F
  • G1038 medium hook
  • G1039 coupling, #10-32 F/F
  • G1041 thread adapter, 5/16-18M to #1/2-20M
  • G1042 extra large hook
  • G1044 1/2-20F adapter plate with mounting hardware
  • 5/16-18 stud with jam nuts
  • #10-32 stud with jam nuts
  • Base (TSF)
  • 2 Mounting leg with hardware (TSFH)
  • Additional column cap with hardware (TSFH)
  • 4 Thumb screw for force gauges with 0.12 - 500 lbF capacities
  • 4 Thumb screw for force gauges with 1,000 - 2,000 lbF capacities
  • Allen wrench set


Dimensions
Dimensions-TSF


Size measurements for the TSF Manually operated Force Test Stand

All sizes in inch and (mm)

Dimensions-TSF


Size measurements for the TSFH Manually operated Force Test Stand

All sizes in inch and (mm)


Accessories

AC1004 Mounting Kit for 5I, 3I or TT03 to TS-Series Test Stands


  • Mounting Kit for 5I, 3I or TT03 to TS-Series Test Stands

More details

AC1004 Mounting Kit for 5I, 3I or TT03 to TS-Series Test Stands 126115

Category Mark-10 Attachments


More details

Category  Mark-10 Attachments 0

Specifications
Capacity:4.5Kn (1,000lbs)
Maximum Travel:100 mm (13.5")
Dimensions:152mm x 203 mm x 660mm (6"W x 8"D x 26"H)
Travel Rate:0.34 mm (0.013") / wheel revolution
Weight:Approx. 11.4kg (25 lbs)
Warranty:3 years

Related Products

Series-3 Digital Force Gauge


  • High-speed 2.000 Hz sampling rate
  • USB data output of continuous or individual data points

More details

Series-3 Digital Force Gauge

Series-4 Advanced Digital Force Gauges


  • High-speed 3.000 Hz sampling rate
  • USB, RS-232, Mitutoyo, and analog outputs

More details

Series-4 Advanced Digital Force Gauges

Series-5 Advanced Digital Force Gauge


  • ±0,1% accuracy
  • High-speed 7.000 Hz peak sampling rate
  • 1.000-point data memory with statistics and outputs

More details

Series-5 Advanced Digital Force Gauge

Downloads

Buy Now
Products

Product
Price
Quantity
131915
TSF Handwheel-operated Test stand, 1000 lbF/4500 N, vertical
€ 2.452,00
131916
TSFH Handwheel-operated Test stand, 1000 lbF/5000 N, horizontal
€ 2.452,00

Accessories

Product
Price
Quantity
131863
TSF001 Digital travel display for Series TSF stands
€ 873,00
131904
TSF002 Horizontal/wall mounting kit for Series TSF and TST stands
€ 240,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
