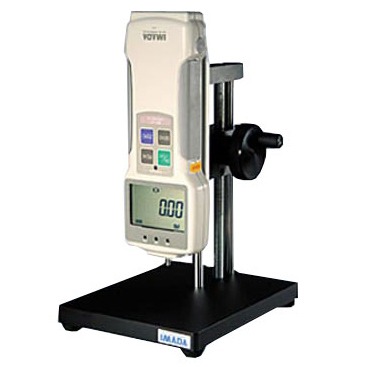

KV-11 Hand Wheel Test Stand


The KV-11 Hand Wheel Test Stand is designed for small deflection measurements such as membrane switches and other small micro switches. The KV-11 comes in two versions: standard model KV-11S includes a highly accurate digital distance meter. Both models accept any force gauge with a maximum capacity of 11 lbf (5 kgf).

Features

  • For compression tests only
  • Reduced backlash and fine movement for highly precise measurements

Dimensions

Dimensions Mechanical Force Test Stands KV-11


Specifications

Capacity
11 lbf (5 kgf)
Stroke
2.75" (69.85 mm)
Travel Rate
0.4" (1 mm) per revolution of hand wheel
Dimensions
Refer to dimensions above
Compatible Gauges
Z2, ZP and DS2
Warranty
2 years

Distance Meter Specifications

Display Push button for inch/mm, zero set and on/off
Resolution 0.0005"/0.01 mm
Accuracy 0.1% of reading or 0.005"/0.1mm, whichever is greater

Buy Now

Products


Product name
Price
Quantity
KV-11 Manual Wheel Test Stand
€ 1.710,00

KV-11S Hand Wheel Test Stand with Digital Distance Meter
€ 1.630,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request
