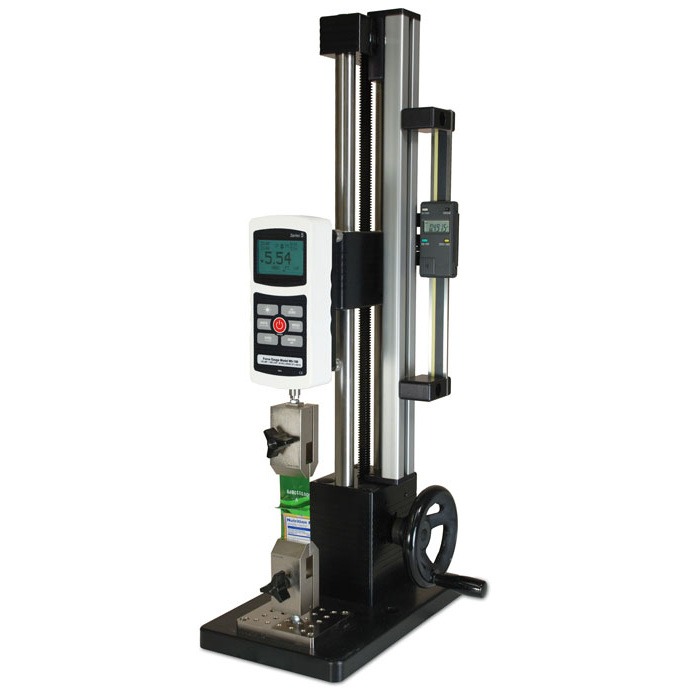

ES30 1000N Precision Hand Wheel Operated Force Test Stand


Made in the USAThe ES30 Force Measurement Test Stand is the top model of the economical, but versatile, ES# test stand range.
With a capacity of up to 1000 N (1kN) and a standard range of 330mm the ES30 is a viable  solution for most compression and tensile testing applications.

With its precision hand wheel operation in combination with a whole range of Mark-10 digital force gauges, attachments and gripping fixtures accurate measurements can be made.

In addition to the standard kit this versatile test stand can be fitted with a number of optional features.
The column can be extended by 150, 300 or 600mm to accommodate larger test samples.
Another option are the 150 or 300mm digital travel displays with a 0,01mm resolution and SPC output for automated data collection.

The AC1060 mounting plate ensures axial alignment between the force gauge loading shaft and the threaded holes in the base.

There is a wide range of adapters available to mount other manufacturers gauges to this test stand.


Features
  • Suitable for tensile and compression testing
  • Mounting holes for bench mounting
  • Modular design: base may be removed and the stand may be used as part of a larger system. It also provides for alternative mounting
  • Maximum force: 1 kN (100 kg / 200 lb)
  • Removable base plate with 25 #10-32 threaded holes for fixture mounting
  • Upgradeable to a motorized test stand by installing a motor drive kit.
  • 3 Year Warranty

Manual test stand comparison
ModelForce capacityMaximum test travelLoading methodTravel rateMaximum, sample clearance
ES10500N229mmSpring loaded lever26,7mm / lever rev.229mm
ES10500N229mmSpring loaded lever26,7mm / lever rev.229mm
ES20500N229mmTop mounted hand wheel1,5mm / wheel rev.229mm
ES301000N330mmSide mounted hand wheel1,3mm / wheel rev.356mm
TSA750(H)3750N95mm with travel stops
152 without travel stops
Lever with rack & pinion, lever can be positioned in 30° increments76,2mm / lever rev.Vertical 267mm
Horizontal 368mm
TSB100500N95mm with travel stops
152 without travel stops
Lever with rack & pinion, lever can be positioned in 30° increments76,2mm / lever rev.330mm
TSC1000(H)5000N89mmInline hand wheel2,5mm / wheel rev.Vertical 254mm
Horizontal 330mm
TSF(H)5000N102mmSide mounted hand wheel0,34mm / wheel rev.Vertical 356mm
Horizontal 459mm
- Maximum travel and/or clearence depends on the grips or fixtures used during testing. The dimensions indicate distances without the use of grips or fixtures. - Column extensions are available for all test stands except ES05, ES10 and ES20. - Models with (H) are available in vertical and horizontal versions

Video


Complete Kit

The ES30 manual test stand comes with the following accessories:

  • G1009 compression plate, 2” dia.
  • G1028 small hook
  • G1030 thread adapter, 5/16-18M to #10-32F
  • G1038 medium hook
  • G1039 coupling, #10-32F/F
  • Hand wheel
  • 4 Thumb screw for force gauge
  • Allen wrench set


Dimensions
Dimensions-ES30


Size measurements for the ES30 Manually operated Force Test Stand

All sizes in inch and (mm)


Accessories

Category Mark-10 Attachments


More details

Category  Mark-10 Attachments 0

Specifications
Load capacity:1000 N (1kN / 100 kg / 200 lb)
Maximum travel:330 mm (13"), 150mm, 300mm, 600mm extensions available
Travel rate:1.27 mm (0.05") / hand wheel revolution
Included accessories:small hook, medium hook, 2" dia. compression plate, and gauge mounting thumbscrews
Dimensions:152 mm x 254 mm x 567 mm
Weight:7.7 kg (17 lbs)
Shipping weight10.4 kg (23 lbs)
Warranty:3 years

Related Products

Series-3 Digital Force Gauge


  • High-speed 2.000 Hz sampling rate
  • USB data output of continuous or individual data points

More details

Series-3 Digital Force Gauge

Series-4 Advanced Digital Force Gauges


  • High-speed 3.000 Hz sampling rate
  • USB, RS-232, Mitutoyo, and analog outputs

More details

Series-4 Advanced Digital Force Gauges

Series-5 Advanced Digital Force Gauge


  • ±0,1% accuracy
  • High-speed 7.000 Hz peak sampling rate
  • 1.000-point data memory with statistics and outputs

More details

Series-5 Advanced Digital Force Gauge

Downloads

Buy Now
Product

Product
Price
Quantity
126413
ES30 - Manual Test Stand - 200 lbF/1 kN
€ 1.204,00

Accessories

Product
Price
Quantity
135876
ESM001 - Digital Travel Display for ES30, 6" / 150 mm
€ 873,00
130489
ESM004 - Digital Travel Display for ES30, 12" / 300 mm
€ 1.692,00
131837
ESM003-1 Column extension for ES30, 6” / 150 mm
€ 177,00
131838
ESM003-2 Column extension for ES30, 12” / 300 mm
€ 206,00
131839
ESM003-3 Column extension for ES30, 24” / 600 mm
€ 235,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
