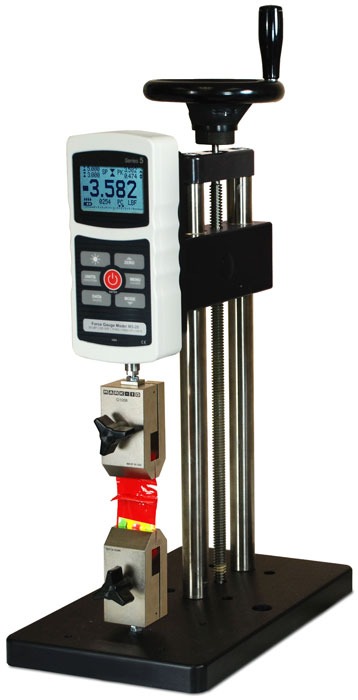

ES20 hand wheel operated manual force test stand


Made in the USAThe hand wheel operated ES20 force test stand is developed for more test that require a better control of motion.
The ES20 is suited for tensile and compression testing, has a maximum capacity of 500 N (50 kg / 100 lb) and a total travel distance of 229mm.

Its weight of just 4,5 kg and compact design with hand wheel from the top this test stand is suitable for small spaces, crowded work benches and mobile test facilities where accuracy, control and precision are needed.
Combine these test stands with Mark-10 digital force gauges and gripping fixtures to create complete testing solutions.

As an option a set of brackets is available to mount a dial indicator to the column.
The brackets are available as dial and digital indicator kit or as brackets only.
The brackets are available in 8 mm and 9.5 mm dia. clearance holes for indicator stem.

Another option is the AC1060 mounting plate which, with its matrix of threaded holes, is efficient for grip and fixture mounting.

We are happy to assist you in finding the most suitable configuration for your needs. Please contact us for more information.


Features
  • Hand wheel operated for precise testing
  • Mounting holes for bench mounting
  • Compact and light weight design
  • Large base plate with 5 #10-32 holes for fixture mounting
  • Optional 25.4 mm dial indicator travel kit
  • Compatible with all Mark-10 force gauges, accessories and grips
  • Competitor force gauge mounting kits available

Manual test stand comparison
ModelForce capacityMaximum test travelLoading methodTravel rateMaximum, sample clearance
ES10500N229mmSpring loaded lever26,7mm / lever rev.229mm
ES10500N229mmSpring loaded lever26,7mm / lever rev.229mm
ES20500N229mmTop mounted hand wheel1,5mm / wheel rev.229mm
ES301000N330mmSide mounted hand wheel1,3mm / wheel rev.356mm
TSA750(H)3750N95mm with travel stops
152 without travel stops
Lever with rack & pinion, lever can be positioned in 30° increments76,2mm / lever rev.Vertical 267mm
Horizontal 368mm
TSB100500N95mm with travel stops
152 without travel stops
Lever with rack & pinion, lever can be positioned in 30° increments76,2mm / lever rev.330mm
TSC1000(H)5000N89mmInline hand wheel2,5mm / wheel rev.Vertical 254mm
Horizontal 330mm
TSF(H)5000N102mmSide mounted hand wheel0,34mm / wheel rev.Vertical 356mm
Horizontal 459mm
- Maximum travel and/or clearence depends on the grips or fixtures used during testing. The dimensions indicate distances without the use of grips or fixtures. - Column extensions are available for all test stands except ES05, ES10 and ES20. - Models with (H) are available in vertical and horizontal versions

Video


Complete Kit

The ES20 Manual Force Test Stand comes with:

  •  Allen wrench set
  •  Hand wheel
  • 4 Thumb screws for force gauge


Dimensions
Dimensions-ES20


Size measurements for the ES20 Manual Force Test Stand

All sizes in inch and (mm)


Accessories

ES001 Dial Indicator / Distance Meter


  • Displays up to 1" of displacement
  • Resolution of 0.001"

More details

ES001 Dial Indicator / Distance Meter 126739

Category Mark-10 Attachments


More details

Category  Mark-10 Attachments 0

ES002 Digital Indictator / Distance Meter


  • Displays up to 1" (25.4mm) of displacement
  • Resolution of 0.0005" (0.01 mm)

More details

ES002 Digital Indictator / Distance Meter 126740

Specifications
Load capacity:500 N (50 kg / 100 lb)
Maximum travel:229 mm (9")
Loading Method:Top-mounted hand wheel
Travel Rate2,1mm (0.083") per revolution
Dimensions:152 mm x 254 mm x 431 mm (6" x 10" x 13.3") - W x D x H
Weight:4.5 kg (10 lb)
Shipping weight5,4 kg (12 lb)
Warranty:3 years

Related Products

Series-3 Digital Force Gauge


  • High-speed 2.000 Hz sampling rate
  • USB data output of continuous or individual data points

More details

Series-3 Digital Force Gauge

Series-4 Advanced Digital Force Gauges


  • High-speed 3.000 Hz sampling rate
  • USB, RS-232, Mitutoyo, and analog outputs

More details

Series-4 Advanced Digital Force Gauges

Series-5 Advanced Digital Force Gauge


  • ±0,1% accuracy
  • High-speed 7.000 Hz peak sampling rate
  • 1.000-point data memory with statistics and outputs

More details

Series-5 Advanced Digital Force Gauge

Downloads

Buy Now
Product

Product
Price
Quantity
126389
ES20 - Manual Test Stand - 100 lbF/500 N
€ 872,00

Accessories

Product
Price
Quantity
131906
ES001 - Dial indicator kit for ES10/ES20
€ 164,00
130406
ES002 - Digital indicator kit for ES10/ES20, 1" / 25 mm
€ 376,00
133347
ES001NI Set of brackets for indicator 9.5 mm dia. stem
€ 135,00
136791
ES001NI-8MM Set of brackets for indicator 8 mm dia. stem
€ 135,00
136882
AC1060 Base plate with matrix of threaded holes
€ 87,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
