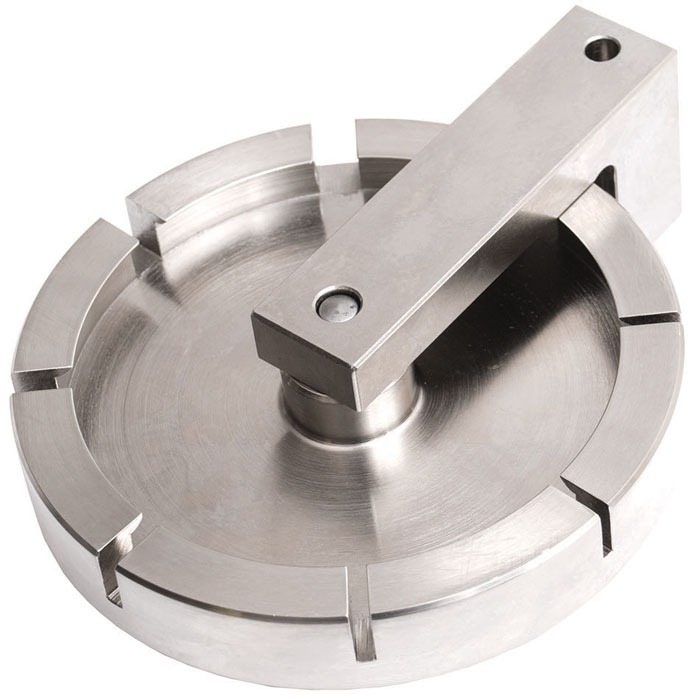

G1093 High Capacity Wire Terminal Grip
The G1093 High-Capacity Wire Terminal grip is the ultimate tool for securing cables, connectors, wire terminals, and various samples during high-capacity wire terminal pull tests.
This fixture is securely mounted to the testing equipment by use of an eye-end-adapter.
The turret wheel can be rotated until the correct size slot is located at the pulling location.
The turret wheel is equipped with 8 slots varying from 2 mm to 11,8 mm.
The wheel can be machined to accommodate different size samples if required.
The G1093 has a capacity of up to 9 kN
Attention: This fixture requires an Eye-End-Adapter to be attached to a test stand
Features
- Rotating turret wheel to the desired slot width
- Rugged design
- Eye end mounting
- Machineable for larger samples if required
Dimensions
G1093 Wire Terminal Grip
Alle sizes are noted in Inches with metric sizes in [MM] behind.
Related Products
G1076 Wire Terminal Grip
- Rotating turret with magnetic detents snaps to the desired slot width
- Equiped with wire slots from 0,7 to 6,3 mm
- Includes a 5/16-18M to #10-32F thread adapter and #10-32 M/M stud with jam nuts.
More details
G1092 High Capacity Wire/Rope Grip
- Fixture designed for pull testing of wire, rope, and yarn
- Bollard / capstan design effectively secures wire, rope, and other samples
- Max sample size: Ø 10 mm
More details
G1002 Dual Roller Cam Grip
- Capacity: 2500 N (500 lb)
- Thread: #10-32 UNF
- Sample size: 0-8.6 mm
More details
G1001 Wire Terminal Grips
- Capacity: 1000 N (200 lb)
- Thread: 5/16-18 UNC (Includes 5/16-18M to #10-32F adapter and #10-32M/M stud with jam nuts)
- Sample size: 0-9.5 mm
More details
Specifications
| Groove sizes: mm (in) | 2.0(0.08"), 3.0(0.12"), 4.0(0.16"), 5.0(0.20"), 6.0(0.24"), 8.0(0.31"), 10.0(0.39"), 11.8(0.46") |
| Capacity: | 9 kN (2000 lbF) |
| Weight: | 2.9 kg (6.4 lb) |
