M5-2-COF Coefficient Of Friction Gauge

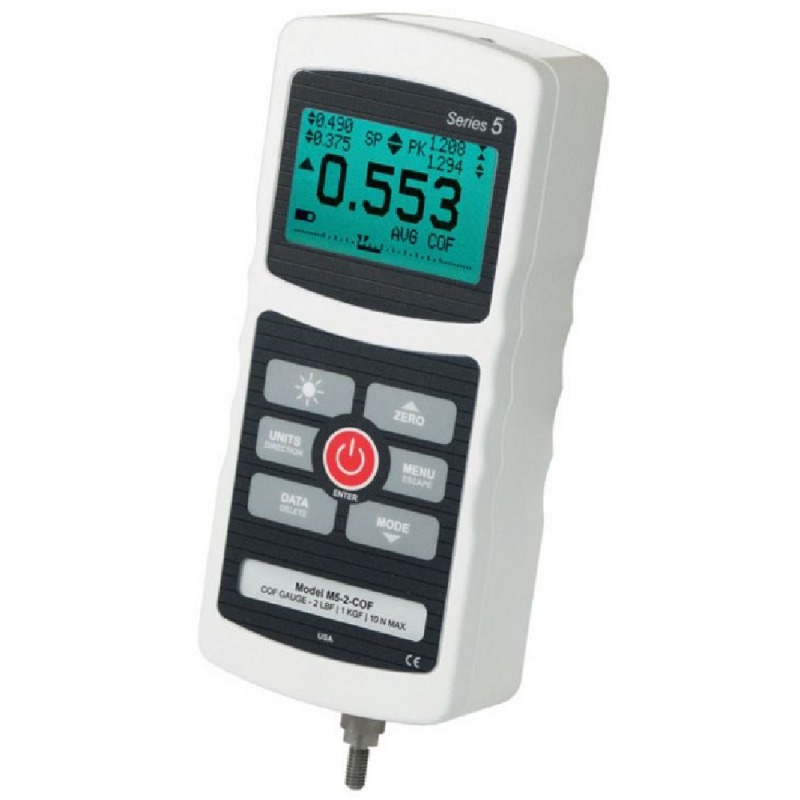

The M5-2-COF coefficient of friction (COF) gauge is an integral part of a COF testing system, typically including a motorized test stand and G1086 COF fixture.

This G1086 COF fixture is an integral part of a COF measurement system, typically including a motorized test stand and COF gauge. The G1086 can be used for a wide range of materials, ideal for conformance to ASTM D1894 and other relevant standards. Static and kinetic coefficients can be measured using the M5-2-COF gauge.

The fixture includes a large work table with sample clamp, level, 200 g sled, cable, and low-friction pulley. The fixture is directly compatible with the M5-2-COF gauge, and the ESM303 motorized test stand.

With a capacity of 10 N, the gauge can be used to measure friction for a wide range of materials, ideal for conformance to ASTM D1894 and other relevant standards. Static and kinetic coefficients are displayed on the backlit LCD, and are calculated from a user-programmable sled weight.

Data can be transferred to a PC or data collectors via USB, RS-232, Mitutoyo (Digimatic), or analog outputs. On-board memory for up to 1,000 readings is included, as are statistical calculations with output to a PC. Integrated set points with indicators and outputs are ideal for pass-fail testing and for triggering external devices such as an alarm, relay, or test stand. Configurable password protects against unauthorized changes to settings.

The M5-2-COF may also be used for a number of common tension and compression testing applications. The gauge is based on Series-5 advanced digital force gauges, and includes the series' full set of functions and settings.

The M5-2-COF includes MESUR™ Lite data acquisition software. MESUR™ Lite tabulates continuous or single point data. Data saved in the gauge's memory can also be downloaded in bulk. One-click export to Excel easily allows for further data manipulation.


Features

  • Calculates static and kinetic coefficients of friction
  • Configurable sled weight (100 - 1000 g)
  • USB, RS-232, Mitutoyo, and analog outputs
  • 1,000-point data memory with statistics and outputs
  • Programmable set points, with indicators and outputs
  • Live load bar graph with set point markers
  • Configurable audio alarms and key tones
  • Password protection, configurable for individual keys and calibration
  • Fixture + Gauge Kit is available

Accessories

G1086


  • Table surface material: 6061 T6 aluminum
  • Sled material: 303 SS
  • Maximum sled travel: 265 mm
  • Mounts directly to the ESM301 and ESM303 motorized test stand
  • Fixture + Gauge Kit is available

More details

ESM303


  • Selectable speed setting
  • Adjustable, removal controller with intuitive menu navigation
  • Stepper motor-driven, producing smooth and quiet operation with no speed variation under load
  • Compact footprint, suitable for crowded workbenches
  • Upper and lower travel limit switches
  • Password protection of test parameters
  • USB output of force vs. time or force vs. travel
  • Ergonomic design, with smart, clean cable management
  • Integrated electronics assembly, easily removed and transported
  • Adjustable mounting plate with T-slot base

More details


Video


Dimensions

Dimensions Digital Force Gauges M5-2-COF


Specifications

Accuracy
±0.1% of full scale
Capacity x Resolution
5 x 0.001 COF*, 2 x 0.0005 lbF, 32 x 0.01 ozF, 1 x 0.0002 kgF, 1000 x 0.2 gF, 10 x 0.002 N
* Depends on the sled weight. For a 200 g weight, the COF capacity is 5. COF resolution is fixed at 0.001.
Sampling rate
7.000 Hz
Power
AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low.
Battery Life
Backlight on: up to 7 hours of continuous use
Backlight off: up to 24 hours of continuous use
Outputs
USB / RS-232: Configurable up to 115,200 baud. Includes Gauge Control Language 2 for full computer control.
Mitutoyo (Digimatic): Serial BCD suitable for all Mitutoyo SPC-compatible devices.
Analog: ±1V DC, ±0.25% of full scale at capacity.
General purpose: Three open drain outputs, one input.
Set points: Three open drain lines.
Configurable Settings
COF sled weight, digital filters, outputs, automatic output (via USB/RS-232), automatic shutoff, default settings, averaging mode, external trigger, passwords, key tones, audio alarms, backlight, calibration
Safe overload
150% of full scale (display shows "OVER" at 110% and above)
Weight
450 gram
Warranty
3 years

Complete Kit

M5-2-COF comes with:

  • a cushioned carrying case with
  • chisel
  • cone
  • V-groove
  • hook
  • flat
  • extension rod
  • universal voltage AC adapter
  • battery
  • quickstart guide
  • USB cable
  • resource CD (USB driver, MESURgauge DEMO software, and quick start guide)
  • and NIST-traceable certificate of calibration with data


Buy Now
