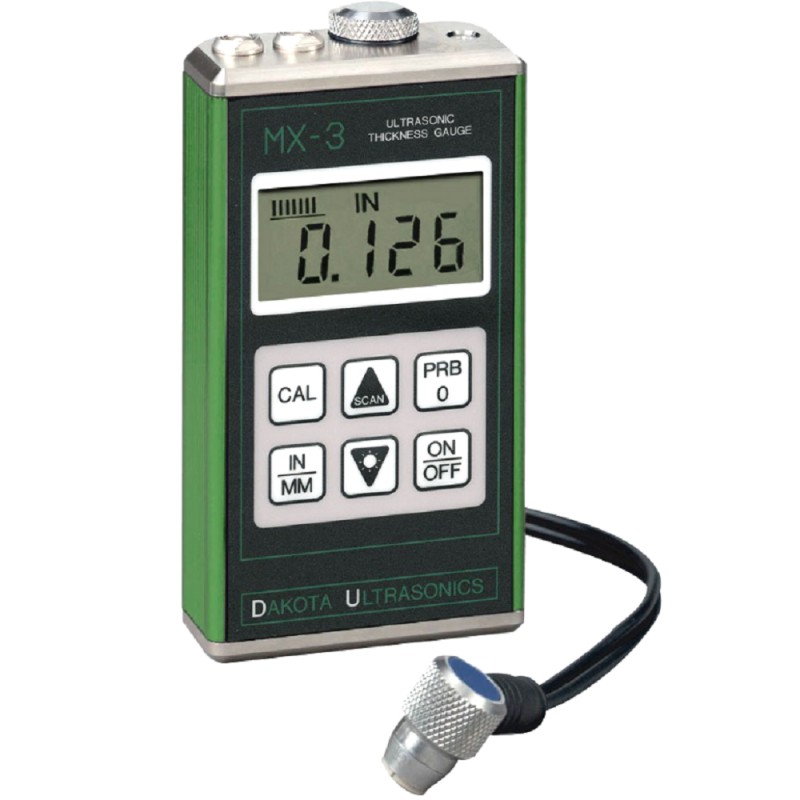

MX-3 Ultrasonic Wall Thickness Gauge
The MX-3 Ultrasonic Wall Thickness Gauge is no longer available and has been replaced by ZX-3.
Click here to see the ZX-3.
Measuring Range in Steel
1.00 - 150.0 mm
0.040 - 6.00 inches

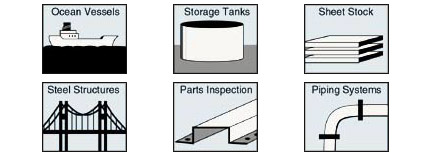

The Dakota Ultrasonics MX-3 Wall Thickness Gauge accurately measures wall thickness and the extent of corrosion of all metals, ceramics, glass and most rigid plastics - from only one side!
The Dakota Ultrasonics MX-3 can be used in a Scan mode or in a Single Thickness Reading mode, where the probe is dragged over a large measuring area. During the "scan" will be displayed the minimum thickness reading recorded .
The Dakota Ultrasonics MX-3 probe can be submerged in water as it is waterproof. The gauge is impact-resistant and environmentally sealed to provide trouble-free operation under the toughest field conditions.
1.00 - 150.0 mm
0.040 - 6.00 inches
The Dakota Ultrasonics MX-3 Wall Thickness Gauge accurately measures wall thickness and the extent of corrosion of all metals, ceramics, glass and most rigid plastics - from only one side!
The Dakota Ultrasonics MX-3 can be used in a Scan mode or in a Single Thickness Reading mode, where the probe is dragged over a large measuring area. During the "scan" will be displayed the minimum thickness reading recorded .
The Dakota Ultrasonics MX-3 probe can be submerged in water as it is waterproof. The gauge is impact-resistant and environmentally sealed to provide trouble-free operation under the toughest field conditions.
Features
- Simple operator controls virtually eliminate training
- Resolution of 0.001 inch (0.01 mm)
- Large, backlit LCD display retains last reading
- Special-purpose probes are offered for a variety of applications
- Switch-selected units for inches or mm
- For underwater surveying, probe cable lengths up to 50 feet are optionally
- Includes NIST Calibration Certificate
- CE Certified
The Dakota Ultrasonics MX-3 is supplied as a complete kit with the gauge, probe, 4 oz. bottle of coupling fluid, 2 AA batteries, NIST Calibration Certificate, and Operating Instruction Manual - all in a foam-fitted carrying case.
 | Minimum Radius for Convex Surfaces | 9 mm (0.350") |
| Minimum Radius for Concave Surfaces | 77 mm (3") | |
 | Minimum Headroom | 26 mm (1") |
 | Minimum Sample Diameter | 4 mm (0.150") |
 | Minimum Substrate Thickness - F | N/A |
| Minimum Substrate Thickness - NFe | N/A |
Related Products
TI-25-UW-50 Underwater Probe / Cable Assembly (15 meter)
- 50 Ft. Length, Waterproof Probe/Cable assembly with non-polarized, Dual-Lemo connectors.
More details
TI-SB Ultrasonic Thickness Gauge Accessories
- Precision Machined and Finished
- Includes NIST Report and Test Data
- Includes Wooden Storage Box
More details
TI-SB4 Steel Test Block
- Uncertified Steel Test Block
- For convenient confirmation of thickness gauge calibration
More details
TI-V-BLOCK Transducer Holder
- The V-Block transducer holder offers the operator greater control and repeatabily when measuring on pipes and other curved areas.
For 3/16" & 1/4" Transducers only.
More details
Specifications
| Range in Steel | 1.00-150.0 mm (0.040-6.00" ) |
| Resolution | 0.01 millimeter 0.001 inch |
| Display | 4½ - Digit, 0.5" Backlit LCD |
| Velocity Range | 2000-10,000 m/sec.(6,500-33,000 ft./sec |
| Probe | 1/4", 5 MHz, actual wearface is 5/8" (17mm) |
| Cable | 1.2 m (4 ft.) waterproof cable with non-polarized, quick-disconnect connectors. Optional lengths up to 15 m (50 ft.). |
| Temp. Limits | Ambient:- 30 to 50° C (-20 to 120° F) Material: -20 to 100° C (-0 to 200° F) Special high temperature probes are optionally available. |
| Battery Type | Two AA batteries |
| Battery Life | 200 hours |
| Weight | 196 g (7 ounces) |
| Size | 64 x 114 x 32 mm (2.5 x 4.5 x 1.25") |
| Accessories Included | Probe/cable assembly. 4 oz. bottle of coupling fluid, NIST Calibration Certificate, 2 AA batteries, operating instructions, hard-plastic carrying case. |
| Warranty | Gauge: 5 Years Probes: 90 Days |
