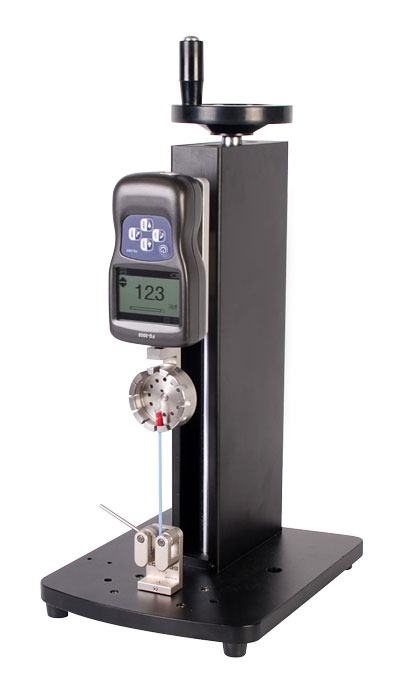

WTT Wire pull tester for cable lugs


The WTT pull-out force gauge accurately measures the force (up to 100kg) needed to loosen lugs. The system consists of a manual dynamometer, a digital force gauge and special cable brackets suitable for cable diameters up to 6 mm (0.24 ").

The wheel is attached to the top of the test bench so that the the test bench can be controlled with the highest level of precision,  thus enabling very exact force measurements of up to 100 kg or 1000 N.

The digital force measuring device used in this system collects the measured data and displays it clearly on an LCD display. In addition, it has the option of setting maximum and minimum values ​​for a series of measurements in "Preset mode" and of being alerted by audible and visual signals if these values ​​are exceeded. Data output ports USB and RS-232 enable together with the included data software that the data can be directly transferred to a computer.


Features
  • Measurement of the pull-out force optionally up to 50 kg or 100 kg
  • Programmable highs and lows allow visual and audible alarms when limits are exceeded
  • Up to 500 measurements can be measured in the data memory
  • RS-232 and USB interface
  • Including data processing software
  • Selectable units (Kg / N / lbs)
  • Supplied with a factory certificate, NIST traceable calibration certificate is available as an option

Complete Kit

The WTT pull-out force gauge is delivered in a kit consisting of:

  •      FG-3000 digital force gauge
  •      FGS-250W manual test bench
  •      G1002 two-roller handle
  •      G1076 Pull-out handle adapter
  •      USB data cable
  •      Factory certificate


Video


Related Products

G Series Thread Adapters & Couplings



More details

G Series Thread Adapters & Couplings

G1076 Wire Terminal Grip


  • Rotating turret with magnetic detents snaps to the desired slot width
  • Equiped with wire slots from 0,7 to 6,3 mm
  • Includes a 5/16-18M to #10-32F thread adapter and #10-32 M/M stud with jam nuts.

More details

G1076 Wire Terminal Grip

G1002 Dual Roller Cam Grip


  • Capacity: 2500 N (500 lb)
  • Thread: #10-32 UNF
  • Sample size: 0-8.6 mm

More details

G1002 Dual Roller Cam Grip

Specifications
Capacity:WTT-100: 50 kg / 500 N / 110 Lb
WTT-200: 100 kg / 1000 N / 220 Lb
Resolution:WTT-100: 0.01 kg / 0.01 N / 0.1 Lb
WTT-200: 0.1 kg / 0.1 N / 0.1 Lb
Precision:± 0.3% of the full scale
Hub:230mm without attachments
Overload capacity:150% of the final scale value (LCD display flashes from a load of 110% of the maximum value)
Refresh rate display:10 times/second
Data memory:500 measurement values
Power supply:Rechargeable Ni-MH battery, universal charger optional
Battery life:Approximately 16 hours continuous use at full charge
Data output:USB, RS-232
Operating temperature:-10° - 40°C
Dimensions:250 x 196 x 445 mm
Weight:8,6 kg
Warranty:1 year

Buy Now
Products

Product
Price
Quantity
136102
WTT-100 Manual Wire Terminal Pull Tester, 50 Kg / 500 N Capacity
€ 1.639,00
136032
WTT-200 Manual Wire Terminal Pull Tester, 100 Kg / 1000 N Capacity
€ 1.639,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
