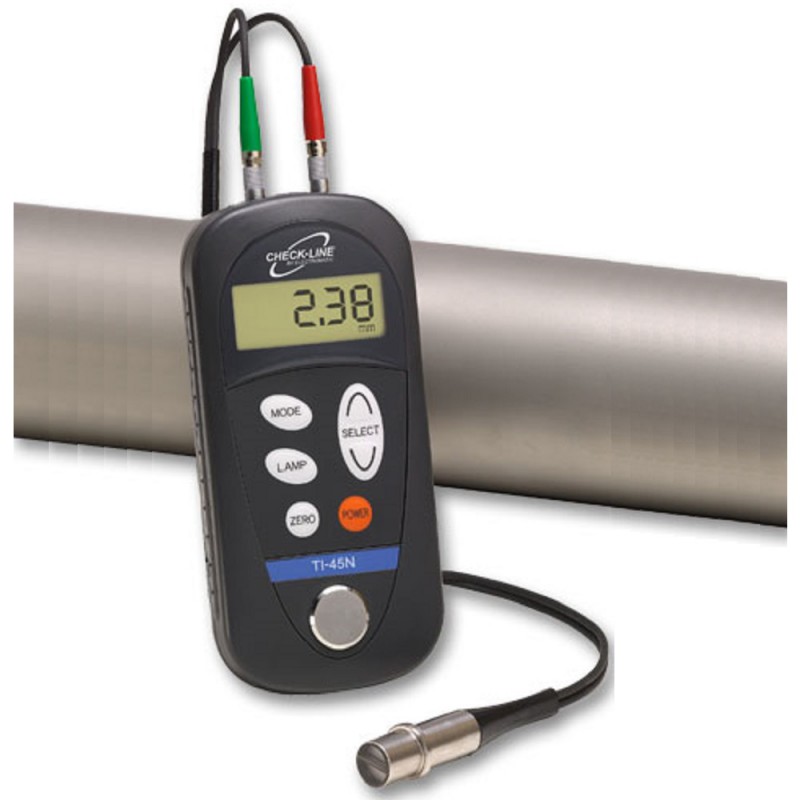

TI-45N Ultrasonic Wall Thickness Gauge


Made in the USAThe CHECKLINE TI-45N is an innovative gauge designed to measure the accurate wall thickness and the extent of corrosion of a wide variety of materials such as Iron, stainless steel, ceramics, glass and the most rigid plastics.

It is easy to measure the wall thicknes by just positioning the probe on the desired location.

The housing is extremely compact, lightweight and rugged. It has a back light that illuminates the LCD in poorly lit areas and it fits comfortably in the palm of our hand.

The CHECKLINE TI-45N can instantly measure the wall thicknes from one side of the material.

Measuring Range:
1.00 - 200.0 mm
0.040 - 8.00 inches




Features
  • Extremely compact & lightweight
  • Resolution of 0.01mm (0.001")
  • Switch-selectable units - inches or mm
  • Quick display update with last reading retained on the display
  • Built-in calibration test plate
  • Display symbols alert user to poor coupling and low battery conditions
  • TI-45N-HD includes slip-on, ergonomic rubber sleeve for improved grip and additional physical protection
  • TI-45NA includes new Pipe Mode for stable measurement on small diameter pipe (1" and larger)

Accessories

TI-SB Steel Test Block with NIST-Traceable Certificate


  • Precision Machined and Finished
  • Includes NIST Report and Test Data

More details

TI-SB Steel Test Block with NIST-Traceable Certificate 125793

TI-SB4 Uncertified Steel Test Block


  • Uncertified Steel Test Block
  • For convenient confirmation of thickness gauge calibration

More details

TI-SB4 Uncertified Steel Test Block 126277

Spare / Replacement Probe for TI-45N Wall Thickness Gauge


  • 5 MHz, 10mm Probe
  • 1 Meter Cable with 2 LEMO Connectors

More details

 Spare / Replacement Probe for TI-45N Wall Thickness Gauge 126328

Centering Shell for CS-5Z10NDT Probe (TI-45N)


  • Centering Shell for TI-45N

More details

 Centering Shell for CS-5Z10NDT Probe (TI-45N) 126327

CF-AN Coupling Fluid - CF-AN


  • Used to create an ultrasonic coupling between the probe and material to be measured
  • Available in different volumes - 125ml / 250ml / 500ml / 1ltr / 5ltr / 25ltr

More details

CF-AN Coupling Fluid - CF-AN 126455

CF-4H High Temperature Coupling Fluid


  • Temperature Range:
    0° to 600° F
    -18° to 315° C

More details

CF-4H High Temperature Coupling Fluid 126919

CF-4H-950F High Temperature Coupling Fluid


  • Temperature range from 316ºC to 404 ºC

More details

CF-4H-950F High Temperature Coupling Fluid 127149

Cic-Wall | Wall Thickness Gauge Calibration


  • Easy planning of calibration
  • Short turnaround
  • Exclusively in accordance with DIN 55 350 Part 18, § 4.2.2, DIN ISO 8402 Part 1
  • Possibility to adjust and repair

More details

Cic-Wall | Wall Thickness Gauge Calibration 127035

Complete Kit

The TI-45NA is supplied as a complete kit with the gauge and wrist strap, probe and cable assembly, 2 oz. bottle of coupling fluid, batteries and instruction manual -- all supplied in a fitted, hard plastic carrying.



Measuring Limits
Minimum Radius for Convex Surfaces Minimum Radius for Convex Surfaces25.4 mm (1")
Minimum Radius for Concave Surfaces76.2 mm (3")
Minimum Radius for Concave SurfacesMinimum Headroom76.2 mm (3")
Minimum Sample DiameterMinimum Sample Diameter12.7 mm (0.5")
Minimum Substrate Thickness - FMinimum Substrate Thickness - FNA
Minimum Substrate Thickness - NFeNA

Specifications
Range:
1.0 - 200.0 mm (0.040 - 8.000")
Resolution:
0.01 mm (.001")
Display:
4½ - digit LCD display, 10mm high with push button illumination
Velocity Range:
1.000 – 12.000 m/sec
(3.250 – 39.000 ft/sec)
continuously adjustable
Probe:
5 MHz, 10 mm (.39") diameter without Centering Shell
Cable:
1m (39") 2-wire, long cable with quick-disconnect connectors
Minimum Pipe Size:
30mm nominal (1") steel pipe
Temp. Limits:
Ambient: -5 to 50° C (25 to 125° F)
Material: -10 to 60° C (-15 to 140° F)
Calibration Plate:
6.35mm (0.250") steel plate, built into the front of the housing
Battery Type:
Two AA batteries
Battery Life:
200 hours
Weight:
Gauge: 200 g (7 ounces)
Size:
131 x 68 x 29 mm
(5.2" x 2.7" x 1.1")
Warranty:
Gauge: 1 year
Probe: 90 days
Accessories Included:
Fitted, hard-plastic carrying case, probe shell attachment, 2 oz. bottle of coupling fluid, 1 spare battery and operating instruction guide

Buy Now
Product

Product name
Price
Quantity
TI-45NA Complete kit
€ 1.388,00

Accessories

Product name
Price
Quantity
CF-AN - Coupling Fluid - 200ml
€ 15,00
Calibration Certificate - Calibration Inspection Certificate
€ 99,00
5Z10NDT-M - Spare / Replacement Probe for TI-45N
€ 576,00
CS-5Z10NDT - Centering Shell for CS-5Z10NDT Probe
€ 182,00
TI-SB4 - Uncertified Steel Testblock
€ 135,00
TI-SB-4H - Steel Test Block
€ 371,00
TI-SB-4L - Steel Test Block
€ 371,00
TI-SB-5L - Certified Steel Test Step Block
€ 371,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request
