DTW Electronic Torque Wrench

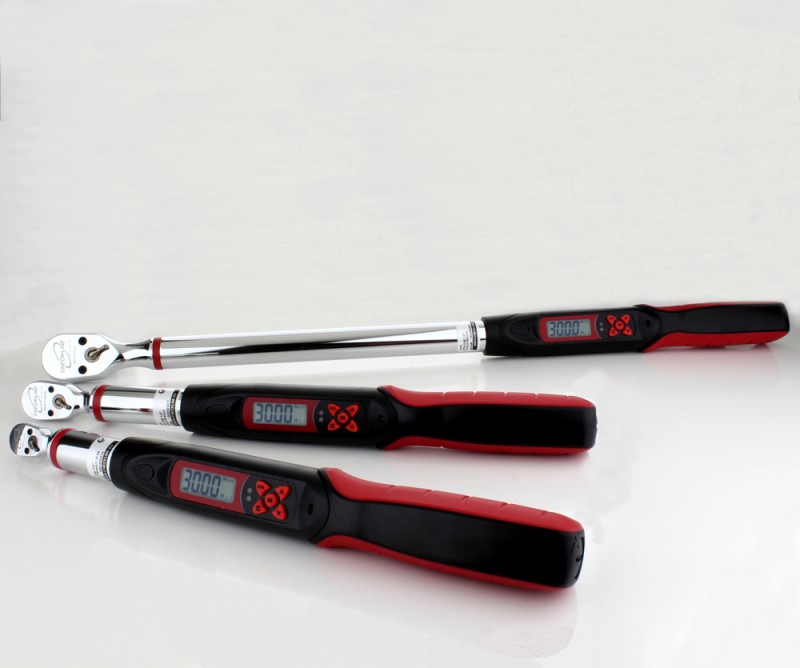

The Check-Line DTW Electronic Torque Wrenches are designed for simple and precise measurement of industrial, automotive, aerospace and many other applications. The DTW displays Real-Time and Peak torque on a large LCD display in ft-lb, in-lb or N-m, user selectable.

The DTW features High-Lo set points that indicate a desired torque value with a bright LED and audible beep.

Torque Wrench


Features

  • Displays in-lbs, ft-lbs & N-m (User selectable)
  • CW and CCW operation
  • Peak or Real-Time (track) mode (User Selectable)
  • Buzzer and LED indicator for the pre-settable target torque
  • 50 data point memory
  • Auto shutdown after 5 minutes of non use
  • Includes Calibration Certificate
  • CE Certified

Torque ranges

Lb-in Lb-ft N-m

Model Range Drive Size
DTW-265i 26.5 - 265 Lb-in 1/4"
DTW-1200i 120 - 1200 Lb-in 3/8"
DTW-100f 120 - 1200 Lb-in 1/2"
DTW-250f 300 - 3000 Lb-in 1/2"
DTW-625f 750 - 7520 Lb-in 3/4"

Related Products

ADS Mechanical Dial Torque Wrench ADS


  • Torque ranges reach from 0.8 to 40 N.m (7 lbf.in to 30 lbf.ft).
  • Recessed dial minimizes dial breakage.
  • Mechanical stop provides overload protection to 125% of full scale.
  • Lightweight aluminum handle with non-slip grip for improved balance. Scuff-resistant non-slip finish.
  • Single-end spindles available upon request.
  • Standard double-ended spindle ratchet mechanism allows for left handed torque applications.
  • Quality constructed for accuracy and reliability with an attractive abrasive resistant finish for longer life and ease in identification.
  • Fine main and memory pointers provide accurate readings.
  • Exclusive built-in ratchet mechanism.
  • Dual scale in American and S.I. units. Single scale models are available upon request.

More details

BDS BDS Mechanical Dial Torque Wrench


  • Torque ranges reach from 1.3 – 216 N.m (12 lbf.in to 160 lfb.ft).
  • Recessed dial minimizes dial breakage.
  • Mechanical stop provides overload protection to 125% of full scale.
  • Lightweight aluminum handle with non-slip grip for improved balance. Scuff-resistant non-slip finish.
  • Single-end spindles available upon request.
  • Standard double-ended spindle ratchet mechanism allows for left handed torque applications.
  • Quality constructed for accuracy and reliability with an attractive abrasive resistant finish for longer life and ease in identification.
  • Fine main and memory pointers provide accurate readings.
  • Exclusive built-in ratchet mechanism.
  • Dual scale in American and S.I. units. Single scale models are available upon request.

More details

CDS-DDS-EDS Mechanical Dial Torque Wrench


  • Torque ranges reach from 80 to 2033 N.m (7 lbf.in to 30 lbf.ft).
  • Recessed dial minimizes dial breakage.
  • Mechanical stop provides overload protection to 125% of full scale.
  • Lightweight aluminum handle with non-slip grip for improved balance. Scuff-resistant non-slip finish.
  • Single-end spindles available upon request.
  • Standard double-ended spindle ratchet mechanism allows for left handed torque applications.
  • Quality constructed for accuracy and reliability with an attractive abrasive resistant finish for longer life and ease in identification.
  • Fine main and memory pointers provide accurate readings.
  • Exclusive built-in ratchet mechanism.

More details

Cic-Torque Torque Instrument Calibration


  • Short turnaround
  • Easy planning of calibration

More details

TWT-400 Torque Wrench Test Stand


  • The flexible design of the TWT-400 is easy to use and is suitable for various torque wrench lengths and brands
  • 3 modes of operation: Track, Peak and 1st Peak
  • Eight (8) selectable engineering units: Oz.in., Lb.in., Lb.ft., Nm, cNm, KgfCm, gfCm, Kgfm
  • Bidirectional accuracy of ±0,25% of indicated reading
  • NiMH rechargeable batteries provide 8-10 hours continuous use
  • CE Certified and NIST Calibration Certificate

More details


Downloads


Specifications

Accuracy
CW - ±2.5%
CCW - ±3.5%
Resolution
0.01 N-m / 0.1 in-lb / 0.01 ft-lb
Sampling Frequency
500 Hz (500 samples/sec)
Display Update Rate
4 Hz (4 times/sec)
Memory
50 Readings
Operation Mode
Peak hold/ Track
Unit Selection
ft-lb, in-lb, N-m
Length
DTW-265i - 390 mm
DTW-1200i - 415 mm
DTW-100f - 445 mm
DTW-250f - 650 mm
DTW-625f - 1200 mm
Head Type
Lever type Ratchet
Gear Teeth
36
Battery
2x AA
Battery Life
110 Continuous Hours
1 Year Standby
Operating Temperature
-10°C ~ 60°C
Storage Temperature
-20°C ~ 70°C
Humidity
Up to 90% non-condensing
Warranty
1 year
