G1109 90° Peel Test Fixture

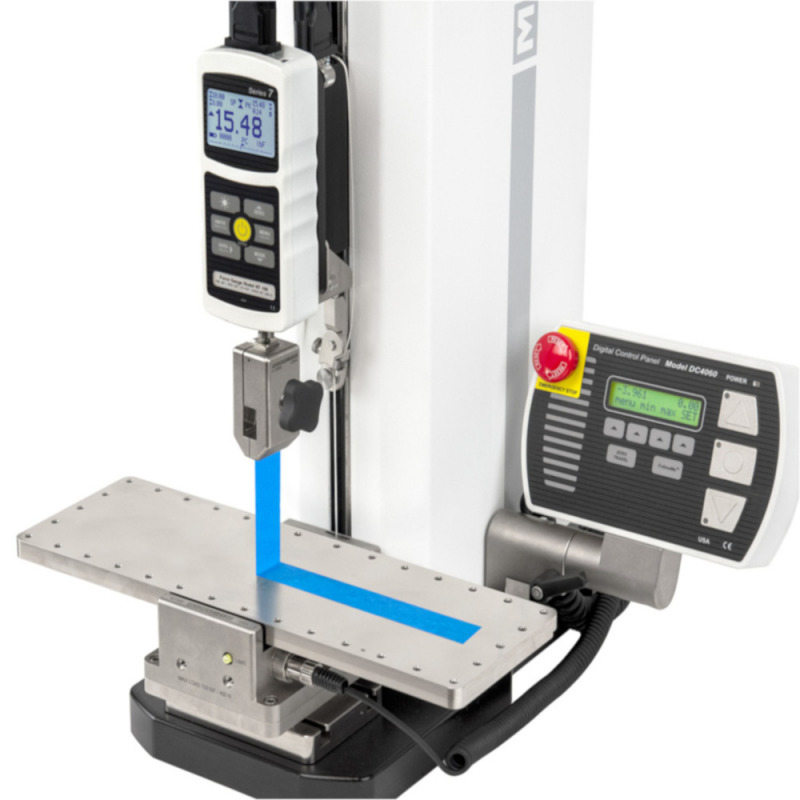

This fixture is designed for peel testing of tapes, films, foil seals, and other materials, per ASTM D6862 / D3330 / D903. A large, flat working table moves horizontally as the test stand’s crosshead moves up via direct cable linkage.

The 90° Peel Test Fixture maintains a 90° angle between the table and direction of pull. When the working table reaches its end of travel, an integrated limit switch automatically stops the ESM303 motorized test stand from moving.

An optional adjustable-angle mount tilts the fixture up to ±30°. Another optional adapter uses an adjustable pulley to set the angle of pull, from 0° to 90°, while the working table remains horizontal.

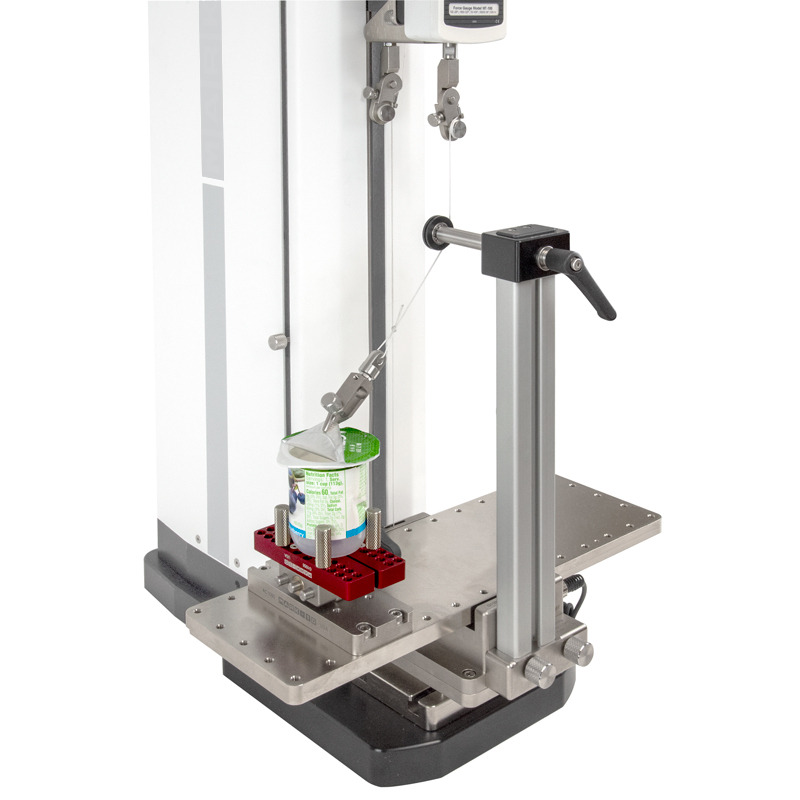

The horizontal orientation is suited for seal testing of filled containers, and can also be used for tapes and other materials.

*Please note that the Test Stand and the Force Gauge is sold separately and optional adjustable angle accessories are available upon request.




Features
  • Maintains 90° angle between the table and the direction of pull.
  • Optional adjustable angle mount tilts the fixture up to ±30°.
  • 0° to 90° optional adjustable angle adapter with pulley, while preserving horizontal table orientation. (max. force: 150N).
  • Conforms to ASTM D6862, D3330, D903.
  • Large working area with threaded mounting holes.
  • Capacity: 500 N
  • Weight (G1109 only): 2.7 kg.
  • Maximum table travel: 210 mm.



Compatible with:

  • Models F105, F305, F505 test frames.
  • Model ESM303 motorized test stand, when using a force gauge.
  • Models F755,  F1505 test frames, and ESM1500LC, ESM1500SLC, ESM750LC, ESM750SLC motorized test frames, when using AC1087 adapter.



Not Compatible with:

  • Model ESM303 motorized test stand, when using the AC1062 load cell / indicator mounting kit.
  • Model ESM1500FG, ESM1500SFG, ESM750FG, ESM750SFG motorized test stands.

Dimensions
Dimension G1109 - IN [MM]
Dimensions-Dimension G1109 - IN [MM]

Dimension AC1078 - IN [MM]
Dimensions-Dimension AC1078 - IN [MM]

Dimension AC1079 - IN [MM]
Dimensions-Dimension AC1079 - IN [MM]


Complete Kit

The G1109 peel test fixture is delivered with the following items included:

  • G1109 fixture
  • Limit switch cable
  • Crosshead bracket
  • G1078 miniature bollard grip
  • Test stand mounting adapter
  • Mounting hardware


Downloads

Related Products

ESM303 Motorized Teststand with PC Control


  • Selectable speed setting
  • Stepper motor-driven, producing smooth and quiet operation with no speed variation under load

More details

ESM303 Motorized Teststand with PC Control

Series-5 Advanced Digital Force Gauge


  • ±0,1% accuracy
  • High-speed 7.000 Hz peak sampling rate
  • 1.000-point data memory with statistics and outputs

More details

Series-5 Advanced Digital Force Gauge

G1015 -G1008 ASTM F88 / D1876 Film and Paper Grips



More details

G1015 -G1008 ASTM F88 / D1876 Film and Paper Grips

Eye End Adapter For Mounting of Grips to Force Gauges / Sensors and Test Stands



More details

Eye End Adapter For Mounting of Grips to Force Gauges / Sensors and Test Stands

Buy Now
Product

Product
Price
Quantity
G1109 90° Peel Test Fixture
€ 2.280,00

Accessories

Product
Price
Quantity
AC1078 - Adjustable Angle Pulley Adapter for G1109
€ 478,00
AC1079 - Adjustable Angle Fixture for G1109
€ 560,00
AC1080 - Adapter G1023 / G1058 Grip to G1109
€ 160,00
AC1087 - Adapter G1109 to ESM750 / 1500 / F755 / F1505 Test Stand
€ 188,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1-3 days , Delivery time: 1-3 weeks , special order, request
