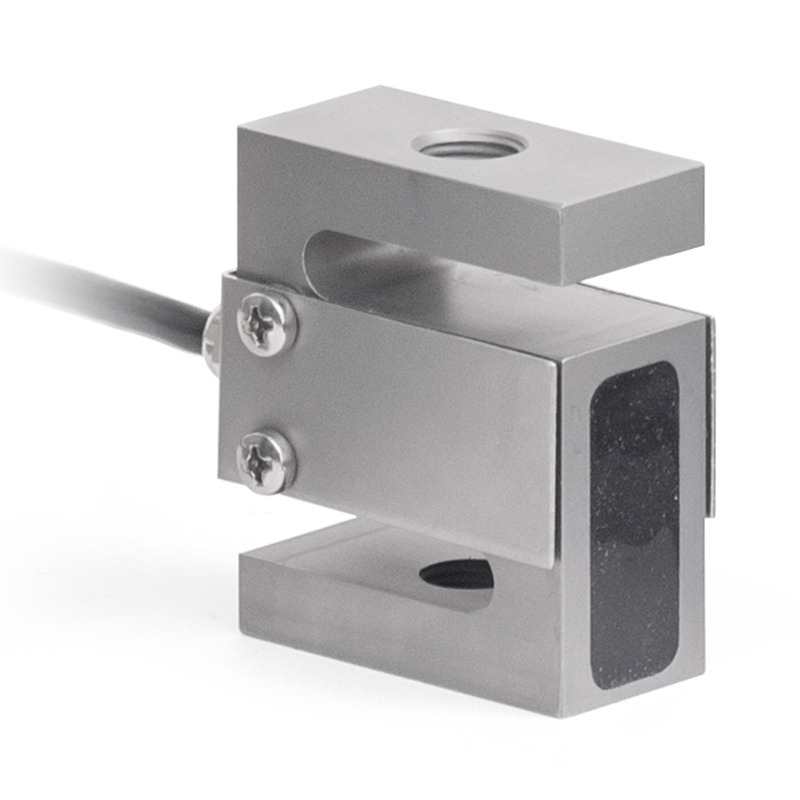

Series R07 Force Sensors for Series F Test Stands


Made in the USAThe Series R07 Force Sensors are designed to work with the high range of the Series F Force Test Stands, models F755, F755S, F1505, and F1505S. They are equipped to measure tension and compression forces and come in a load range from 250 N to 7,5 kN.

The R07 Series use the unique Plug & Test® technology and are therefore also compatible with the 3I, 5I and 7I digital indicators by using an optional adapter AC1084. These sensors are not compatible with the low range, models F105, F305, F505, and F505H, test stands.

The R07 Force sensors come complete with a certificate of calibration with data.


Features
  • Compatible with Models F755, F1505, and F1505S test stands
  • Measure tension and compression force
  • Member of the Plug & Test® family of interchangeable sensors and indicators (adapter required)
  • NIST-traceable certificate of calibration with data is included
  • Warranty: 3 years

Capacity x Resolution
ModellbFozFgFkgFNkN
MR07-5050 x 0,02800 x 0,0525000 x 1025 x 0,01250 x 0,1-
MR07-100100 x 0,051600 x 150000 x 2050 x 0,02500 x 0,2-
MR07-200200 x 0,13200 x 2-100 x 0,051000 x 0,51 x 0,0005
MR07-300300 x 0,24800 x 5-150 x 0,11500 x 11,5 x 0,001
MR07-500500 x 0,28000 x 5-250 x 0,12500 x 12,5 x 0,001
MR07-750750 x 0,512000 x 10-375 x 0,23750 x 23,75 x 0,002
MR07-10001000 x 0,516000 x 10-500 x 0,25000 x 25 x 0,002
MR07-15001500 x 124000 x 20-750 x 0,57500 x 57,5 x 0,005

Dimensions
Dimensions-Series R07


ModelABCDEF
MR07-502,40 [61,0]2,00 [50,8]0,46 [11,7]0,90 [22,9]1/4-28 UNF10,00 [254,0]
MR07-1002,40 [61,0]2,00 [50,8]0,46 [11,7]0,90 [22,9]1/4-28 UNF10,00 [254,0]
MR07-2002,40 [61,0]2,00 [50,8]0,46 [11,7]0,90 [22,9]1/4-28 UNF10,00 [254,0]
MR07-3002,40 [61,0]2,00 [50,8]0,71 [18,0]1,10 [27,9]1/2-20 UNF10,00 [254,0]
MR07-5002,40 [61,0]2,00 [50,8]0,71 [18,0]1,10 [27,9]1/2-20 UNF10,00 [254,0]
MR07-7502,40 [61,0]2,00 [50,8]0,71 [18,0]1,10 [27,9]1/2-20 UNF10,00 [254,0]
MR07-10002,40 [61,0]2,00 [50,8]0,71 [18,0]1,10 [27,9]1/2-20 UNF10,00 [254,0]
MR07-15002,40 [61,0]2,00 [50,8]0,96 [24,4]1,40 [35,6]1/2-20 UNF10,00 [254,0]
Dimensions for the Series R07 force sensors, all dimensions are in Inch with [mm] behind

Specifications
Accuracy± 0.15% of full scale + indicator or test stand
Safe Overload150% of full scale
Weight
MR07-50 – MR07-200: 0.5 kg

MR07-300 – MR07-1000: 0.9 kg

MR07-1500: 1.4 kg
Shipping weight
MR07-50 – MR07-300: 0.9 kg

MR07-500 – MR07-1000: 1.4 kg

MR07-1500: 1.8 kg

Related Products

F755 / F1505 F755 / F1505 Force Test Frame


  • Set up, run, and analyze data via the integrated IntelliMESUR® control panel
  • Build in test creation wizards
  • Integrated motion control and data collection solution.

More details

F755 / F1505 F755 / F1505 Force Test Frame

Series-F + EasyMESUR F755 / F755S / F1505 / F1505S Series F test frames with EasyMESUR® F755 / F755S / F1505 / F1505S


  • Integrated Force sensor and seamless interface for FS05 force sensor without cables
  • Separate USB C connections for PC and external storage
  • Integrated touch screen control panel

More details

Series-F + EasyMESUR F755 / F755S / F1505 / F1505S Series F test frames with EasyMESUR® F755 / F755S / F1505 / F1505S

Series-5I Advanced Digital Force/Torque Indicator


  • Interchangeable force and torque sensors through, separately sold, Plug & Test® technology
  • High-speed 7.000 Hz sampling rate
  • USB, RS-232, Mitutoyo, and analog outputs

More details

Series-5I Advanced Digital Force/Torque Indicator

Downloads

Buy Now
Products

Product
Price
Quantity
MR07-50 Force Sensor - 25 kgF / 25000 gF / 250 N
€ 726,00
MR07-100 Force Sensor - 50 kgF / 50000 gF / 500 N
€ 726,00
MR07-200 Force Sensor - 100 kgF / 1000 N / 1 kN
€ 7.259,00
MR07-300 Force Sensor - 150 kgF / 1500 N / 1.5 kN
€ 726,00
MR07-500 Force Sensor - 250 kgF / 2500 N / 2.5 kN
€ 726,00
MR07-750 Force Sensor - 375 kgF / 3750 N / 3.75 kN
€ 726,00
MR07-1000 Force Sensor - 500 kgF / 5000 N / 5 kN
€ 726,00
MR07-1500 Force Sensor - 750 kgF / 7500 N / 7.5 kN
€ 726,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1-3 days , Delivery time: 1-3 weeks , special order, request
