Series E - Ergonomics Force Gauge for Compression and Traction

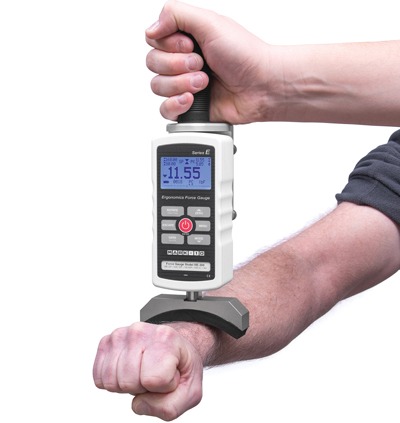

Made in the USAThe Series-E ergonomic gauge is developed with tasks like ergonomic analysis, strength assessment and work place design in mind.

This device is wel suited to test applications like the force required to open a (fire)door, lift an item or device or open a drawer.
The different attachments can be used to simulate the actual task and measure the force needed to perform it.

Another application is to measure (muscle)strength, especially when people physically challenged it is possible to measure their strength to adapt the circumstances to their abilities.

It features the innovative Click-Lock® technology system which makes it easy to change attachments, as no fastening is required, this reduces the risk of damaging the instrument.
Accessories can be attached and removed, adjusted and locked in 90 ° or 180 ° orientation. An adapter is available to use conventional threaded attachments.

With an accuracy of 0,2% and a sampling rate of 7000Hz and a wide range of attachments the Series-E is up to any task required.
There are three different capacity force gauges (500, 1000 and 2500N) available.

The Series-E is available as a gauge only with the option to acquire individual attachments or as pre-configured, advanced or a professional, kit.
The kits come standard in a rugged carrying case with gauge and all attachments.

An additional myometer conversion kit is offered to extend the versatility of this device.

We are happy to assist you in finding the most suitable configuration for your needs. Please contact us for more information.


Features
  • Data memory for 5000 measured values - measured values can be stored manually or continuously with up to 7000 Hz
  • Measures compressive and tensile force peak values
  • Statistical functions for stored measured values
  • Versatile and configurable ergonomic force gauge
  • MESUR ™ Lite data processing software
  • Three available measuring ranges: 500, 100 and 2500 Newton
  • Click-Lock ™ attachment technology for accessories
  • USB data output
  • Programmable highs and lows for pass / fail tests
  • Mode for averaging the forces over a given time

Capacity x Resolution
ModelNkNlbFkgFgFozF
ME-100500 x 0,2-100 x 0.0550 x 0,025000 x 201600 x 1
ME-2001000 x 0,21 x 0,0002200 x 0.05100 x 0,02-3200 x 1
ME-5002500 x 0,52,5 x 0.0005500 x 0.1250 x 0,2-8000 x 2

Complete Kit
Model No.DescriptionEM-#00E Gauge onlyEKE-#00-1E Advanced kitEKE-#00-2E Professional kit
ME-#00 (100/200/500)Force gaugeSSS
08-1022AC adapter with EU prongSSS
AC1118Battery (rechargeable)SSS
AC1111USB cableSSS
E1002Padded attachment, squareOOS
E1003Padded attachment, rectangularOSS
E1004Padded attachment, curvedOSS
E1005Padded attachment, circularOOs
E1006HookOSS
E1007Chain / hook assemblyOOS
E1008Single handle gripOOS
E1009Double handle gripOSS
E1010Pistol gripOOS
E1011Grip adapter, 5/16-18FOOO
E1012Looped cableOOO
E1013Myometer kitOOO
12-1049Carrying caseS--
E1000Carrying case, smallOS-
E1001Carrying case, largeOOS
Mesur lite SSS
Mesur gauge OOO
S = standard
O = option
Other power connectors on request.

Dimensions
Dimensions-SERIES E


Series-E ergonomic Force Gauge models 100, 200 and 500 all have the same dimensions

All dimensions are noted in Inches with metric sizes in (mm) behind.


Video


Accessories

Mesurgauge / Mesurgauge plus Load & Travel Analysis Software


  • Sends data from a force or torque gauge and travel display to a PC for further analysis

More details

Mesurgauge / Mesurgauge plus Load & Travel Analysis Software 126514

Padded Attachments for Ergometer E1002/E1003/E1004/E1005


  • Click-Lock® accessory mounting technology
  • Quick attachment at 90 or 180 degree position
  • Used for push applications

More details

Padded Attachments for Ergometer E1002/E1003/E1004/E1005 127500

Category Series E Accessories


More details

Category  Series E Accessories 0

Specifications
Precision:± 0.2% of full scale
Sampling rate:7000 Hz
Power supply:AC power adapter or battery-powered.
Multi-level battery indicator always informs about the current state of charge.
Automatic shut-off when the power is to low
Battery life:Backlight on: up to 7 hours of continuous use
Backlight off up to 24 hours of continuous use
Measuring units:lbF, ozF, gF, kgF, N, kN (depending on the model)
USB data output:Configurable up to 115,200 baud
Secure overload:200% of full scale (display shows “OVER” at 110% and above)
Calibration:NIST traceable calibration certificate with test data
Weight:0,8 kg
Delivery includes:Carrying Case, Universal AC Adapter, Batteries, USB Cable, Resource CD (USB Driver, MESUR ™ Lite Software, MESUR ™ gauge MESUR ™ gauge Plus 90-Day Trial and Instruction Manual), NIST traceable calibration certificate
Warranty:3 years
