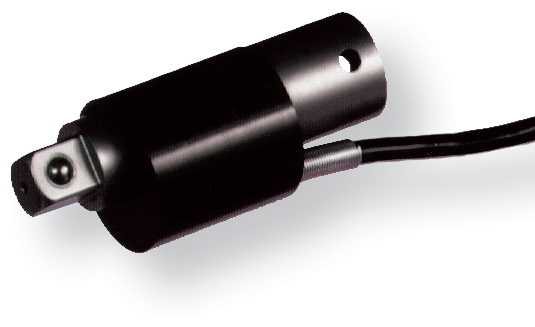

STE Wrench Extension Torque Sensor
The STE Wrench Extension Torque Sensor is no longer available and has been replaced by R55 series.
Click here to see the R55 series.
Convert any wrench to a torque tool with this sensor, or use it as a component of a torque testing system.
Capacities available from 20 to 5,000 lbin.
Designed to work with BGI Remote Sensor Force Gauge.
Features
- Member of the BGI family of interchangeable sensors
- Stainless steel and aluminum construction
- "Personality module" holds all calibration and configuration data
- NIST - traceable calibration certificate included
The STE Torque Transducer is used in conjunction with our BGI Torque / Force Indicator to form a complete measuring system.
| Model | Ranges | Resolution | ØB (inch[mm]) | ØC (inch[mm]) | Drive size |
| STE-20 | 20 lbin 230 kgFmm 220 Ncm | 0.02 lbin 0.2 kgFmm 0.2 Ncm | 0.56 [14.2] | 1.00 [25.4] | 1/4" |
| STE-50 | 50 lbin 580 kgFmm 570 Ncm | 0.05 lbin 0.5 kgFmm 0.5 Ncm | 0.56 [14.2] | 1.00 [25.4] | 1/4" |
| STE-100 | 100 lbin 1150 kgFmm 1150 Ncm | 0.1 lbin 1 kgFmm 1 Ncm | 0.56 [14.2] | 1.00 [25.4] | 1/4" |
| STE-200 | 200 lbin 2300 kgFmm 2200 Ncm | 0.2 lbin 2 kgFmm 2 Ncm | 0.73 [18.5] | 1.12 [28.6] | 3/8" |
| STE-400 | 400 lbin 4600 kgFmm 4500 Ncm | 0.5 lbin 5 kgFmm 5 Ncm | 0.73 [18.5] | 1.12 [28.6] | 3/8" |
| STE-1000 | 1000 lbin 11500 kgFmm 11000 Ncm | 1 lbin 10 kgFmm 10 Ncm | 0.98 [24.9] | 1.25 [31.8] | 1/2" |
| STE-5000 | 5000 lbin 55 kgFm 550 Nm | 5 lbin 0.05 kgFm 0.5 Nm | 1.48 [37.6] | 2.0 [50.8] | 3/4" |
Dimensions
STE-20 - STE-100:
A (inch[mm]): 1.88 [47.8]
ØB (inch[mm]): 0.56 [14.2]
ØC (inch[mm]): 1.00 [25.4]
Drive size: 1/4"
STE-200 - STE-400:
A (inch[mm]): 3.00 [76.2]
ØB (inch[mm]): 0.73 [18.5]
ØC (inch[mm]): 1.12 [28.6]
Drive size: 3/8"
STE-1000:
A (inch[mm]): 3.50 [88.9]
ØB (inch[mm]): 0.98 [24.9]
ØC (inch[mm]): 1.25 [31.8]
Drive size: 1/2"
STE-5000:
A (inch[mm]): 5.00 [127.0]
ØB (inch[mm]): 1.48 [37.6]
ØC (inch[mm]): 2.0 [50.8]
Drive size: 3/4"
A (inch[mm]): 1.88 [47.8]
ØB (inch[mm]): 0.56 [14.2]
ØC (inch[mm]): 1.00 [25.4]
Drive size: 1/4"
STE-200 - STE-400:
A (inch[mm]): 3.00 [76.2]
ØB (inch[mm]): 0.73 [18.5]
ØC (inch[mm]): 1.12 [28.6]
Drive size: 3/8"
STE-1000:
A (inch[mm]): 3.50 [88.9]
ØB (inch[mm]): 0.98 [24.9]
ØC (inch[mm]): 1.25 [31.8]
Drive size: 1/2"
STE-5000:
A (inch[mm]): 5.00 [127.0]
ØB (inch[mm]): 1.48 [37.6]
ØC (inch[mm]): 2.0 [50.8]
Drive size: 3/4"
Related Products
BGI Remote Sensor Force / Torque Gauge
- Fully interchangeable force and torque BGI Force/Torque Sensors
- Unlimited number of sensors possible due to unique design
- RS-232, Mitutoyo and analog outputs
More details
Specifications
| Accuracy: | ± 0.6% of full scale ±1 digit + accuracy of BGI |
| Weight: | From 0.27 kg (0.6 lbs) to 0.9 kg (2 lbs) |
| Warranty: | 3 year |
