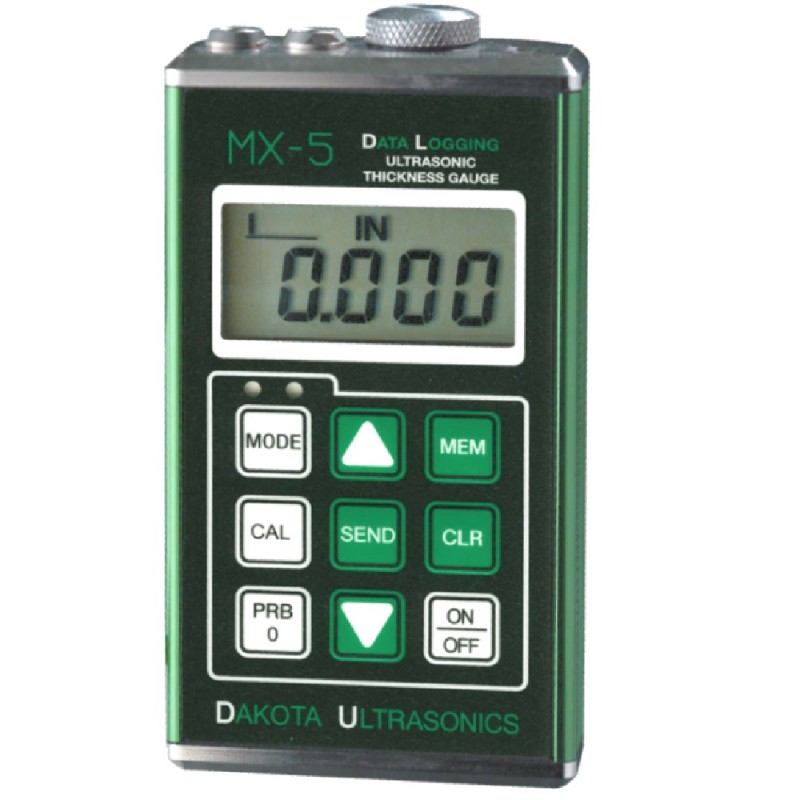

MX-5DL Data-Logging Ultrasonic Coating & Wall Thickness Gauge

The MX-5DL Data-Logging Ultrasonic Coating & Wall Thickness Gauge is no longer available and has been replaced by ZX-5DL.
Click here to see the ZX-5DL.

Measuring Range in Steel
1.00 - 199.0 mm
0.040 - 8.00 inches

The MX-5 DL is a simple to operate Ultrasonic Thickness Gauge with an internal data logger. It offers useful features such as an Alarm mode, Differential mode, high speed scanning, and data send.

The MX-5 DL will automatically log your readings in numeric order (1 to 1000 readings). The gauge comes as a complete kit, ready to use, and is backed by our 5 year warranty.

Features

Large, backlit LCD display retains last reading
Resolution of 0.01 mm (0.001 inch)
Simple operator controls virtually eliminate training
Switch-selected units for inches or mm
Special-purpose probes are offered for a variety of applications
For underwater surveying, probe cable lengths up to 50 feet are optionally
Automatic numeric Data Logging system 1 to 1000 readings.
Alarm Mode
Differential Mode
RS232 output sends thickness readings to a printer, computer or other external storage device.
Includes NIST Calibration Certificate
CE Certified

Typical Applications

Complete Kit

The MX-5DL is supplied as a complete kit with:

Gauge
Probe
4 oz. bottle of coupling fluid
2 AA batteries
NIST Calibration Certificate
Operating Instruction Manual
Foam-fitted carrying case.

Measuring Limits

	Minimum Radius for Convex Surfaces	9 mm (0.350")
	Minimum Radius for Concave Surfaces	77 mm (3")
	Minimum Headroom	26 mm (1")
	Minimum Sample Diameter	4 mm (0.150")
	Minimum Substrate Thickness - F	N/A
	Minimum Substrate Thickness - NFe	N/A

TI-SB Steel Test Blocks

Precision Machined and Finished: Each test block is precision-machined and surface-finished to tight tolerances, ensuring excellent acoustic coupling and long-term dimensional stability.
Includes NIST Certificate and Test Data: Supplied with a full calibration certificate traceable to NIST standards, including measured values and test data for complete verification accuracy.
Includes Wooden Storage Box: Delivered in a durable hardwood storage case that protects the block from environmental effects and mechanical damage during storage or transport.

More details

TI-SB4 Steel Test Block

Type: Uncertified steel test block for routine verification
Design: Includes 4 and 6 precision-machined steps for quick accuracy checks
Purpose: Designed for convenient confirmation of ultrasonic thickness gauge calibration without requiring NIST certification

More details

TI-V-BLOCK Transducer Holder

Purpose: Provides improved control and repeatability when measuring on curved or cylindrical surfaces
Compatibility: For use with 3/16" and 1/4" transducers

More details

Specifications

Range in Steel	1.00-199.9 mm (0.040-8.00" )
Resolution	0.01 millimeter 0.001 inch
Display	4½ - Digit, 0.5" Backlit LCD
Velocity Range	2000-10,000 m/sec.(6,500-33,000 ft./sec
Probe	1/4", 5 MHz, actual wearface is 5/8" (17mm)
Cable	1.2 m (4 ft.) waterproof cable with non-polarized, quick-disconnect connectors. Optional lengths up to 15 m (50 ft.).
Temp. Limits	Ambient:- 30 to 50° C (-20 to 120° F) Material: -20 to 100° C (0 to 200° F) Special high temperature probes are optionally available.
Battery Type	Two AA batteries
Battery Life	200 hours
Weight	196 g (7 ounces)
Size	64 x 114 x 32 mm (2.5 x 4.5 x 1.25")
Accessories Included	Probe/cable assembly. 4 oz. bottle of coupling fluid, NIST Calibration Certificate, 2 AA batteries, operating instructions, hard-plastic carrying case.
Warranty	Gauge: 5 Years Probes: 90 Days
