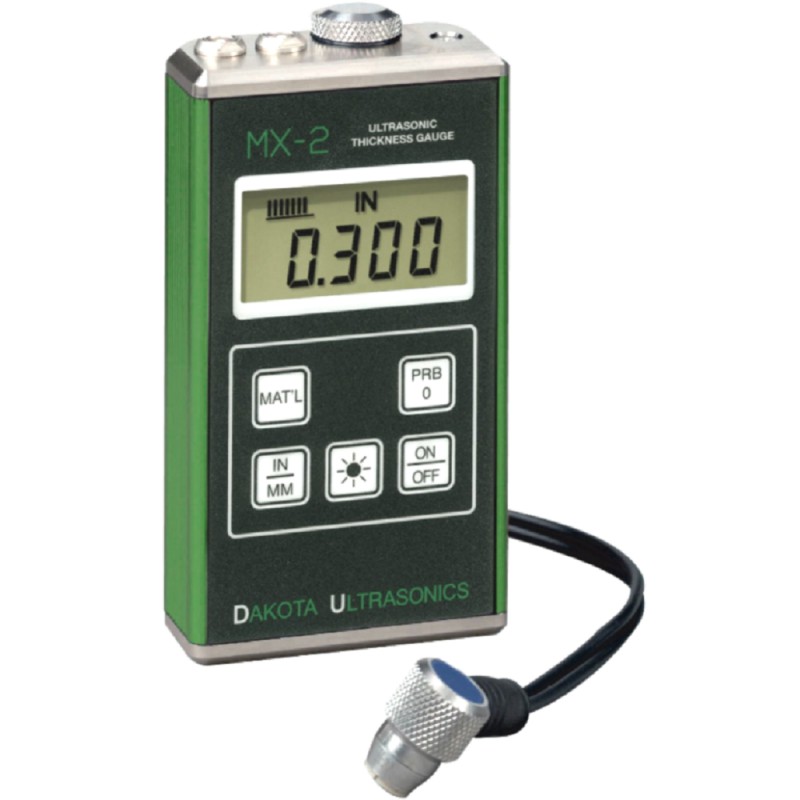

MX-2 Ultrasonic Wall Thickness Gauge
The MX-2 Ultrasonic Wall Thickness Gauge is no longer available and has been replaced by ZX-2.
Click here to see the ZX-2.
The MX-2 is ideal for the person that tests a few different materials regularly. The MX-2 contains 8 velocities of common materials and two velocities that can be set using a simple software program.
Even in dim light conditions, the tool's backlit display is easy to read. The unit operates for up to 200 hours on a single set of batteries.
The MX-2 comes complete, ready to use, and is protected by Dakota Ultrasonics 5 year limited warranty.
Velocity Settings
The MX-2 has 8 set velocities and 2 that are custom to the user's applications. The set velocities are as follows:
1. Steel 4340-(.233)
2. Stainless Steel 303-( .223 )
3. Aluminum 2024 - ( .251 )
4. Cast Iron -(.179 )
5. Plexiglass -(.106 )
6. PVC - (.094)
7. Polystyrene (.092)
8. Polyurethane -(.070 )
9. Custom
10. Custom
Even in dim light conditions, the tool's backlit display is easy to read. The unit operates for up to 200 hours on a single set of batteries.
The MX-2 comes complete, ready to use, and is protected by Dakota Ultrasonics 5 year limited warranty.
Velocity Settings
The MX-2 has 8 set velocities and 2 that are custom to the user's applications. The set velocities are as follows:
1. Steel 4340-(.233)
2. Stainless Steel 303-( .223 )
3. Aluminum 2024 - ( .251 )
4. Cast Iron -(.179 )
5. Plexiglass -(.106 )
6. PVC - (.094)
7. Polystyrene (.092)
8. Polyurethane -(.070 )
9. Custom
10. Custom
Features
- Measurements displayed in inches, inches/microsecond, millimeters, and meters/second.
- Measures from 0.025 to 19.999 inches (0.63 to 199.99 millimeters) switch to select English or metric units.
- Multi-function 4.5 digit liquid crystal display with 0.500 inch numerals, backlit for use in poor light conditions.
- Four readings per second for single point measurements.
- 8 pre-set velocities and 2 custom velocities
- Ability to change between velocities without the use of computer software
The MX-2 is supplied as a complete kit with the gauge, probe, 4 oz. bottle of coupling fluid, 2 AA batteries, NIST Calibration Certificate, and Operating Instruction Manual - all in a foam-fitted carrying case.
 | Minimum Radius for Convex Surfaces | 9 mm (0.350") |
| Minimum Radius for Concave Surfaces | 77 mm (3") | |
 | Minimum Headroom | 26 mm (1") |
 | Minimum Sample Diameter | 4 mm (0.150") |
 | Minimum Substrate Thickness - F | N/A |
| Minimum Substrate Thickness - NFe | N/A |
TI-SB Steel Test Blocks
- Precision Machined and Finished: Each test block is precision-machined and surface-finished to tight tolerances, ensuring excellent acoustic coupling and long-term dimensional stability.
- Includes NIST Certificate and Test Data: Supplied with a full calibration certificate traceable to NIST standards, including measured values and test data for complete verification accuracy.
- Includes Wooden Storage Box: Delivered in a durable hardwood storage case that protects the block from environmental effects and mechanical damage during storage or transport.
More details
TI-SB4 Steel Test Block
- Type: Uncertified steel test block for routine verification
- Design: Includes 4 and 6 precision-machined steps for quick accuracy checks
- Purpose: Designed for convenient confirmation of ultrasonic thickness gauge calibration without requiring NIST certification
More details
TI-V-BLOCK Transducer Holder
- Purpose: Provides improved control and repeatability when measuring on curved or cylindrical surfaces
- Compatibility: For use with 3/16" and 1/4" transducers
More details
Specifications
| Measuring Range | 0.63 to 199.99 millimeters 0.025 to 19.999 inches |
| Resolution | 0.01 millimeter 0.001 inch |
| Velocity Range | 1250 to 10,000 meters/sec .0492 to .3937 in/µs |
| Dimensions | 2.5 W x 4.75 H x 1.25 D inches |
| Range in Steel | 0.60-150.0 mm (0.025-6.00" ) |
| Display | 4½ - Digit, 0.5" Backlit LCD |
| Probe | 1/4", 5 MHz, actual wearface is 5/8" (17mm) |
| Cable | 4 ft. (1.2 m) waterproof cable with non-polarized, quick-disconnect connectors. Optional lengths up to 50 ft. (15 m). |
| Temp. Limits | Ambient:- 30 to 50° C (-20 to 120° F) Material: -20 to 100° C (-0 to 200° F) Special high temperature probes are optionally available. |
| Battery Type | Two 1.5V alkaline or 1.2V NiCad AA cells. |
| Battery Life | Typically operates for 200 hours on alkaline and 130 hours on NiCad. |
| Weight | 283 g (10 ounces) |
| Accessories Included | Probe/cable assembly. 4 oz. bottle of coupling fluid, NIST Calibration Certificate, 2 AA batteries, operating instructions, hard-plastic carrying case. |
| Warranty | Gauge: 5 Years Probes: 90 Days |
