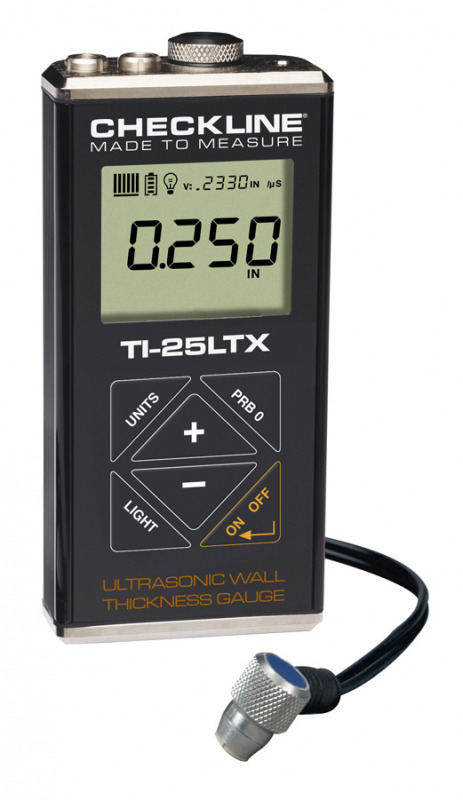

TI-25LTX Steel Only Ultrasonic Wall Thickness Gauge


Made in the USAMeasuring range: 1 - 150 mm

Resolution: 0.05 mm

The Checkline TI-25LTX is a simple wall thickness gauge especially designed for pure steel measurements. It is usually used for ultrasonic wall thickness measurements of pipes, containers, sheets and other objects. With its IP65 protection rating and robust aluminum housing, it is also suitable for applications in harsh industrial and production environments.

The TI-25LTX has a fixed sound velocity of 5920 meters/second, which is the standard speed of sound for common steel. The speed of sound can not be adjusted for other materials with this unit.


Features
  • Including NIST traceable calibration certificate
  • Inexpensive wall thickness gauge for steel only
  • 5 years warranty
  • Resolution 0.05 mm
  • The probe is waterproof and can be submerged under water
  • Selectable measuring unit mm or inch
  • Extruded aluminum housing, sealed and classified IP65
  • Large LCD display with turn-off backlight
  • Powered by 2 AA batteries - 45 hours continuous use possible

Typical Applications
Typical Applications

Measuring Limits
Minimum Radius for Convex SurfacesMinimum Radius for Convex Surfaces8.89 mm
Minimum Radius for Concave Surfaces76.2 mm
Minimum HeadroomMinimum Headroom25.0 mm
Minimum Sample DiameterMinimum Sample Diameter3.8 mm
Minimum Substrate Thickness - FMinimum Substrate Thickness - F-
Minimum Substrate Thickness - NFe-

Complete Kit

The TI-25LTX Ultrasonic Thickness Gauge is supplied in a complete set consisting of:

  •      TI-25PX wall thickness gauge
  •      Ultrasonic Probe T-102-2000 1/4 ", 5 MHz Dual Element
  •      120ml coupling fluid
  •      NIST traceable calibration certificate
  •      2 AA batteries
  •      operation manual


Supplied in a foam-lined carrying case.



Accessories

A-302-6002 Protection for TI series gauges



    More details

    A-302-6002 Protection for TI series gauges 127313

    Category Wall Thickness Probes


    More details

    Category  Wall Thickness Probes 0

    CF-AN Coupling Fluid


    • Used to create an ultrasonic coupling between the probe and material to be measured
    • Available in different volumes - 125ml / 250ml / 500ml / 1ltr / 5ltr / 25ltr

    More details

    CF-AN Coupling Fluid 126455

    Li-Ion Rechargeable AA Batteries via the USB to USB-C


    • Li-Ion rechargeable battery
    • Stable voltage of 1,5 V over 95% of the runtime
    • Charged via the USB to USB-C cable

    More details

    Li-Ion Rechargeable AA Batteries via the USB to USB-C 127554

    Specifications
    Measurement range:1 - 150 mm with standard-probe
    Resolution:0.05 mm
    Sound velocity:5920 meters / second not adjustable
    Standard probe:T-102-2000 1/4 ", 5 MHz Dual-Element Probe
    Contact Surface 5/8" (17mm) Made of PEEK (Polyethylethylcytone)
    Probe cable:1.2m long waterproof cable with unpolarized connections
    Display:-Large LCD display with 4.5 digits per 1.3 cm high
    -lightable backlight
    -Delivered into individual segments clear reproduction of advanced information
    Measurement units:5920 meters/second not adjustable
    Power supply:2x AA batteries (rechargeable batteries can be used)
    Battery life:45 hours of continuous use
    Temperature limits:Environment: -30 - 75 °C
    Material: -20 - 100 ° C
    Probes for higher temperatures available
    IP-protection classification:IP65
    Housing:Extruded aluminum body with nickel coated end caps (seal sealed)
    Dimensions:63,5 x 31,5 x 131,3mm (LxWxH)
    Weight:308 gramms
    Certification:NIST traceable and MIL-STD-45662A
    CE Certified
    Warranty:Device: 5 years
    Test head: 90 days

    Buy Now
    Product

    Product
    Price
    Quantity
    136974
    TI-25LTX Steel Only Wall Thickness Gauge
    € 981,00

    Accessories

    Product
    Price
    Quantity
    136674
    A-302-6002 - Protective Rubber Boot For TI-Series Small
    € 110,00
    139547
    Li-Ion Rechargeable AA Batteries - 4 pcs (with USB to USB-C cable)
    € 25,00
    All mentioned prices are excluding VAT & excluding shipment costs.
    Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
