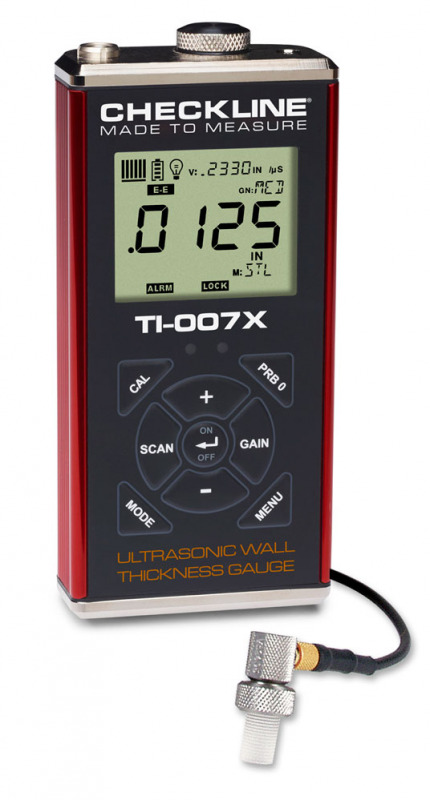

TI-007X Precision ultrasonic wall thickness gauge


Made in the USAMeasuring range with standard probe with delay tip:

0.150 - 25.40mm

Total measuring range with contact probe:

up to 915.0 mm (depending on material and probe)

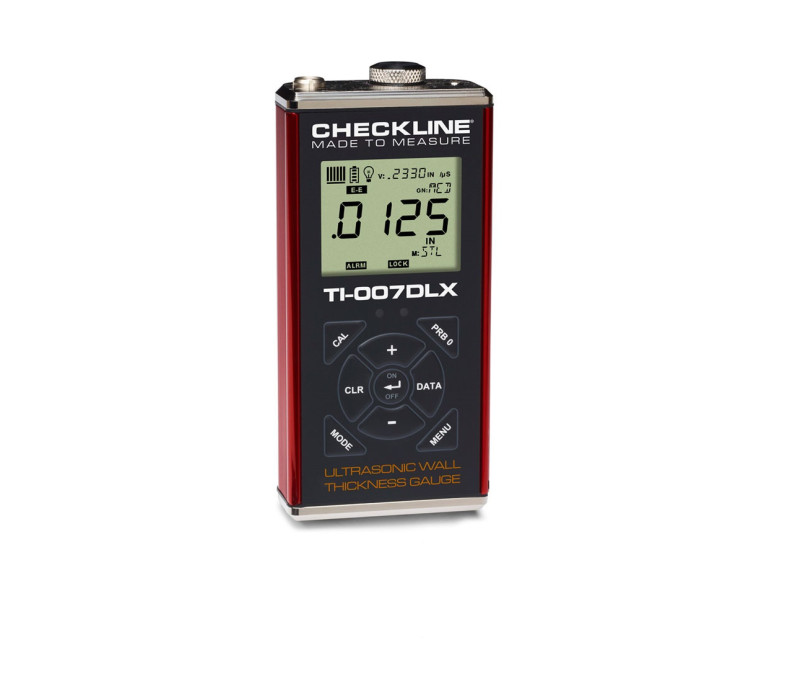

The TI-007X is a precision ultrasonic wall thickness gauge has been developped for high-resolution measurements on thin metals and plastics. The technology comes in an extruded aluminum housing, which has been sealed to resist even difficult environmental and production conditions.

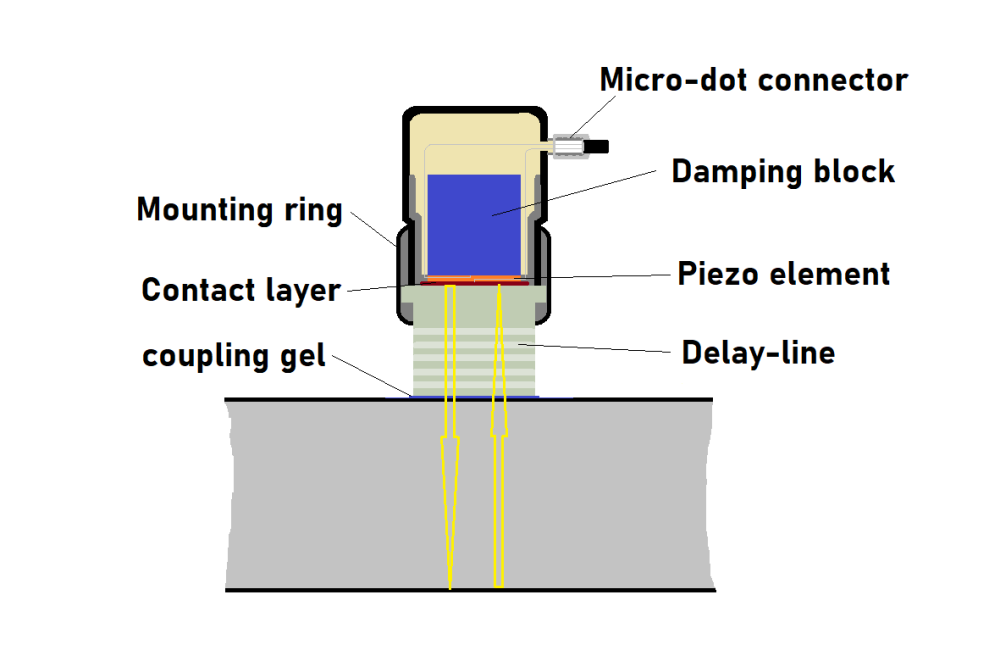

The measuring range of the TI-007X wall thickness gauge is 0.15 - 25.4mm on steel. Using a single-element probe with delay tip, thin materials can be measured. The device then automatically removes any echo-echo (E-E) coatings and automatically switches to interface-echo mode (I-E) when measuring thicker materials. For the measurements of plastics, the user selects the plastic mode (PLAS) again with a graphite delay-tip (Art. X-633-0000).

In addition,the TI-007X offers the difference mode (DIFF) where the user sets a nominal value and the instrument calculates the ± difference between the nominal value and the measured wall thickness. In alarm mode, the user sets maximum and minimum values, and the LEDs on the front panel are triggered when the readings are outside the tolerance range.

The TI-007 can also be used with single element contact probes, extending the measurement range up to 923mm (depending on material and probe). Although the TI-007X does not have an internal memory, individual readings can be sent to a PC or other suitable data collector via the USB port. If a data store is needed, the TI-007DLX is the right alternative device choice.


Features
  • Scan mode, 100 measurements / second. Drag the probe over a large surface, the smallest measured value during the scan will be displayed.
  • Delivery including NIST traceable calibration certificate
  • 5 year warranty on the gauge
  • Selectable measurement modes: Pulse Echo (P-E), Interface Echo (I-E) and Plastics (PLAS)
  • Adjustable sound speed, 8 presets & 2 memory slots for user sound speeds

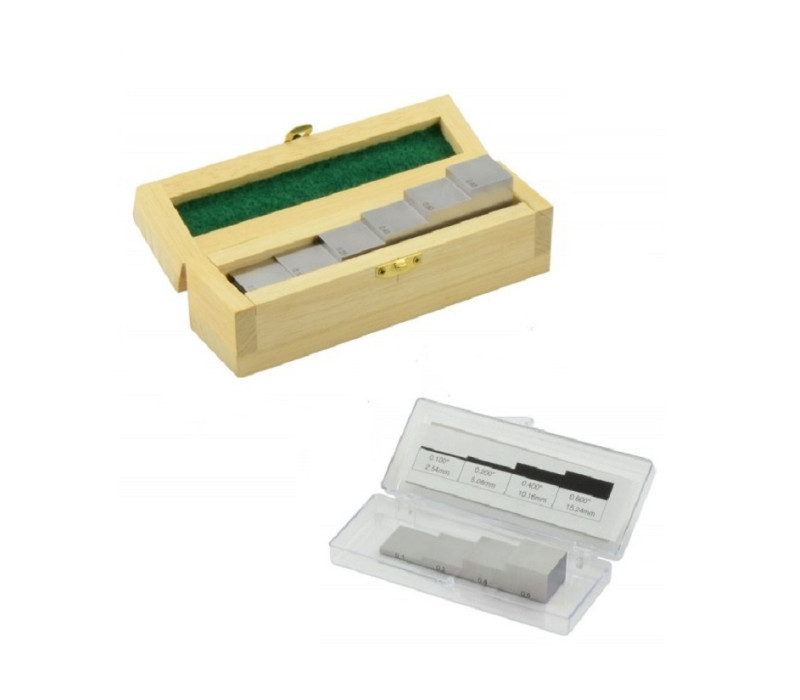

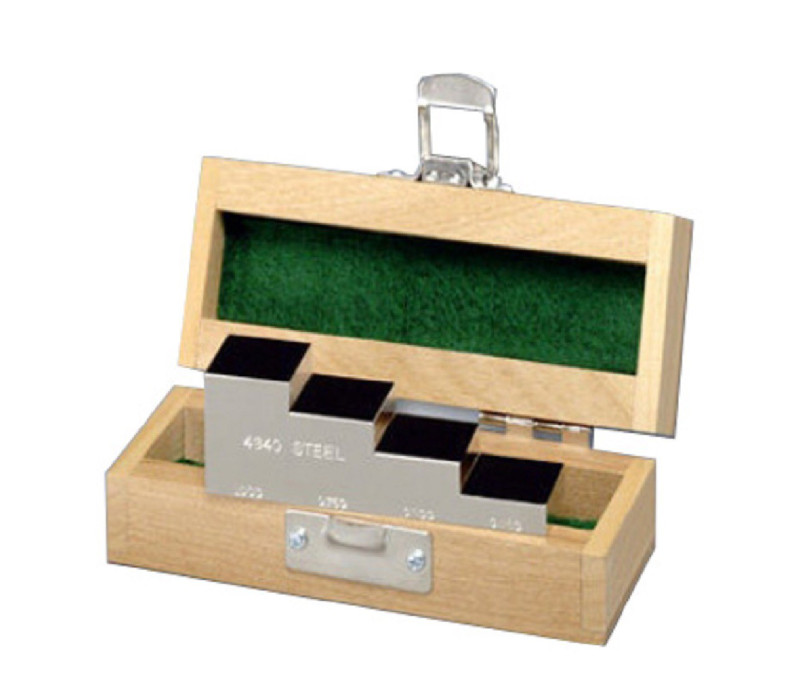

  • Calibration to sample with known material thickness possible, the device automatically calculates the correct speed of sound.
  • Adjustable GAIN in 5 levels, for fine adjustment of difficult materials or applications

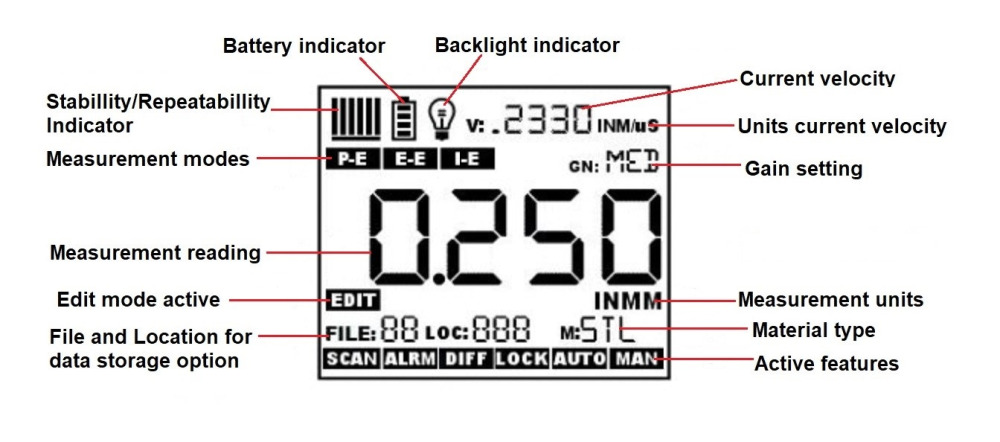

  • Large, backlit LCD display that stores the last reading
  • Resolution 0.001mm
  • Adjustable measuring units inch or mm
  • IP65 protection classification for protection even in harsh environments
  • Adjustable backlight ON / OFF / AUTO
  • Transfer of individual measured values to a computer / data collector without software
  • Powered by: 120MHz FPGA Timing & 100 Volt Spike Pulser

Complete Kit

The TI-007X wall thickness gauge comes in a complete set consisting of:



  •      TI-007X wall thickness gauge
  •      T-402-5507 1/4 "15 MHz probe incl. Deceleration tip
  •      120ml coupling gel
  •      NIST traceable calibration certificate
  •      USB-C data transfer cable
  •      2 AA batteries
  •      Operation manual



Everything delivered in a foam-lined plastic carrying case.

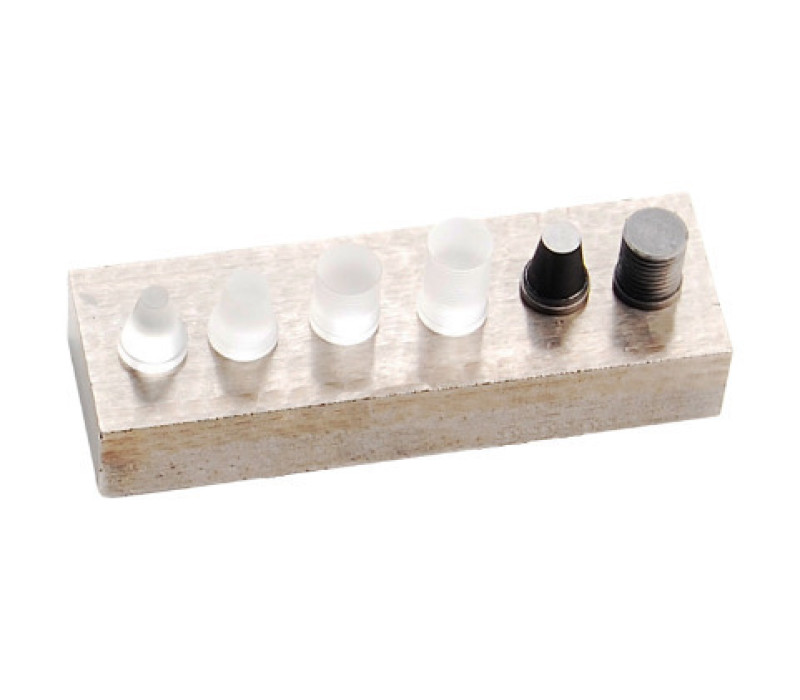

Probe tips for the TI-007X
P/N Description Standard / Optional Image
X-231-0000 1/4" x 3/8"
for all metalls
(short)
standard
X-241-0000 1/4" x 1/2"
for all metalls
(long)
standard
X-633-0000 1/4" x 3/8"
Graphite-tip
for thin plastics
(short)
optional

The graphite tip is used in special plastic mode to measure plastics.


Measuring Limits
Minimum Radius for Convex Surfaces Minimum Radius for Convex Surfaces 12.7 mm
Minimum Radius for Concave Surfaces 63.5 mm
Minimum Radius for Concave Surfaces Minimum Headroom 33.0 mm
Minimum Sample Diameter Minimum Sample Diameter 12.7 mm

Accessories

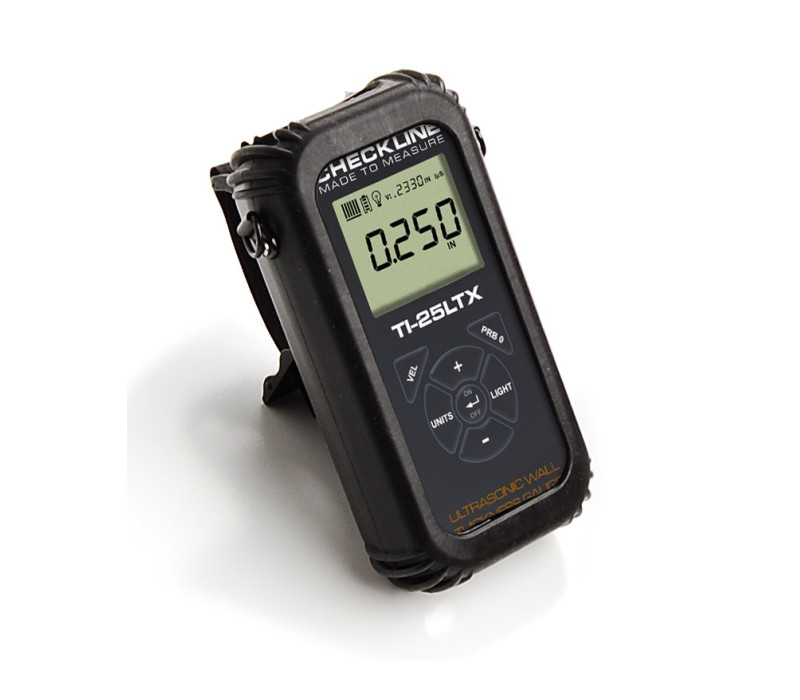

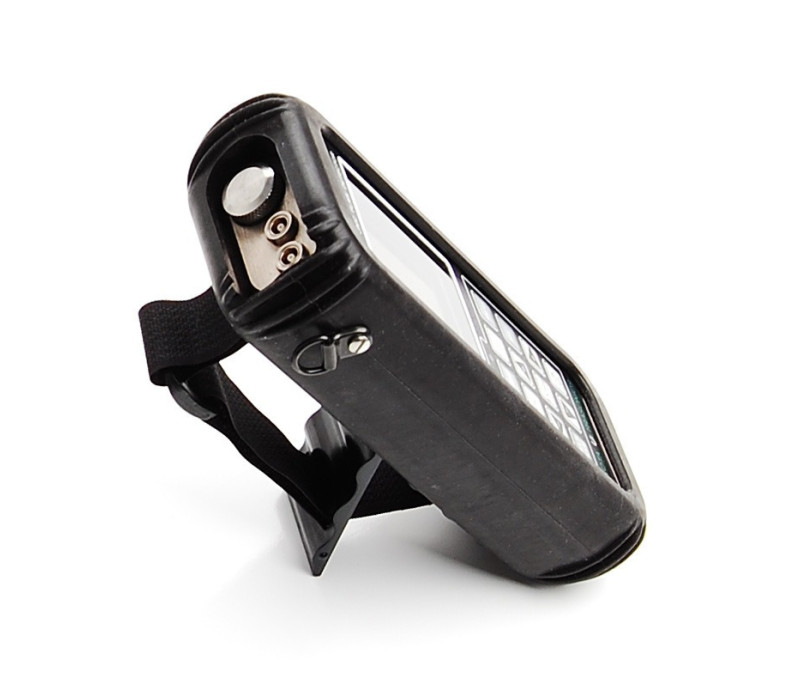

A-302-6002 Protection for TI series gauges



More details

A-302-6002 Protection for TI series gauges 127313

Category Wall Thickness Probes


More details

Category  Wall Thickness Probes 376

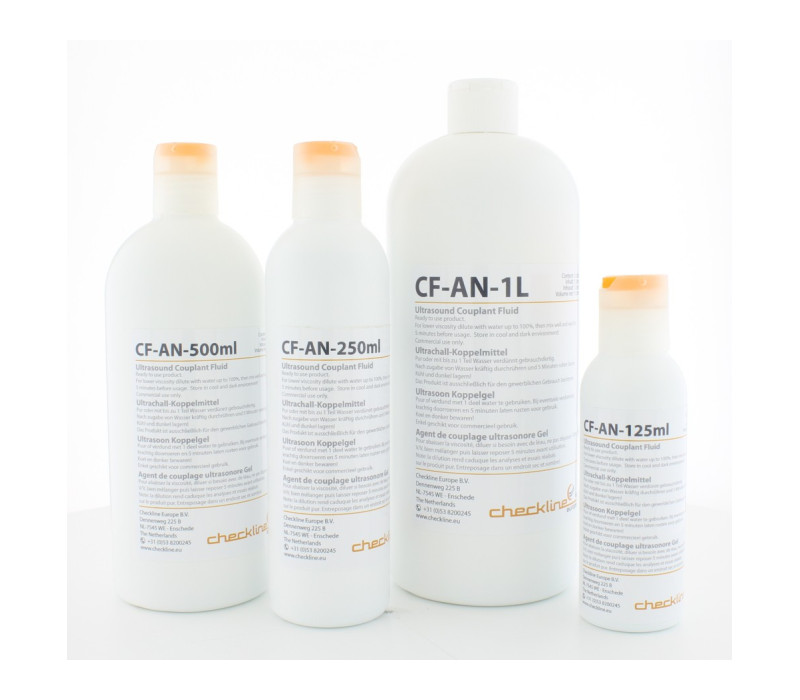

CF-AN Coupling Fluid


  • Used to create an ultrasonic coupling between the probe and material to be measured
  • Available in different volumes - 125ml / 250ml / 500ml / 1ltr / 5ltr / 25ltr

More details

CF-AN Coupling Fluid 126455

Specifications
Maximum measuring range:
(on steel):
0.15 - 924 mm
(depending on material type and typeof probe)
Measuring range with standard probe: 0.15 - 25.4 mm with standard probe and delay-tip on steel
Resolution: Switchable 0.001 mm or 0.01 mm
Gain: Automatic time-dependent amplification (TDG) with manual override
Sound Velocity Range: 305 - 18542 m/sec
Probe (standard): 1/4 "diameter, 15 MHz probe with delay-tip and cable (item T402-5507)
Probe (optional): Diverse single element probes with delay tip or contact probes (5 - 20 MHz)
Cable: 1.2m with Microdot / Lemo 00 connector
Display: Multifunction LCD display with 7 segments and backlight
Backlight display: Illumination selectable ON / OFF / AUTO and adjustable illumination intensity (Lo, Med, Hi)
Display update rate: 10 Hz (10 updates / second)
Data output: Output of individual measured values via USB (no internal memory). Corresponding model with data memory is the TI-007DLX.
Operating temperature: -30 - 75°C
Battery typ: 2x AA 1.5V alkaline, 1.2V NiCad or 1.5 lithium AA cells (rechargeable batteries can be used)
Battery duration: Typically 35 hours with alkaline batteries and 18 hours with NiCad.
Weight: 308 gramms
Dimensions: 64 x 131 x 32 mm
Housing: Extruded aluminum body with nickel-plated aluminum end caps (sealed with gasket)
Class protection housing: IP65
Certification: NIST traceable and MIL-STD-45662A
Key board: Sealed membrane keypad
Pulse Holwierde frequency: 200 Hz (200 pulses / second)
Warranty: Measuring device: 5 years
Test head: 90 days
