DIW Digital Torque Wrench

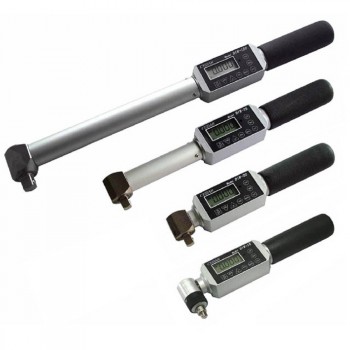

4 Ranges Available
DIW-15 Capacity: 15 N-m (130 lb-in), 1/4" dr
DIW-20 Capacity: 20 N-m (180 lb-in), 3/8" dr
DIW-75 Capacity: 75 N-m (55 lb-ft), 3/8" dr
DIW-120 Capacity: 120 N-m (87 lb-ft), 1/2" dr

The DIW is a torque measuring manual wrench designed for verifying application or removal torque of bolts. The wrench head swivels 300° and can be used in tight places. You'll get consistent readings no matter where or how the wrench is gripped because the torque sensor is centered on the drive and not up in the handle. Torque controlled wrenches can also be evaluated by comparative tests on a given fastener. Both breakaway and loosen tests can be performed. Rugged enough to be used in production. Wrench head swivels 300°

This tester has an accuracy of ±0.5%, ±1 LSD. It offers a programmable setpoint for uniform tightening or Go/No Go testing and also provides peak data for SPC (statistical process control) via the USB port.

Consistent readings no matter where the wrench is gripped because the torque sensor is centered on the drive.





Features
  • Includes NIST calibration Certificate
  • Wrench head swivels 300°
  • Available in lbf-in, lbf-ft, Kgf-cm and N-m (selectable)
  • Peak, Real Time and Peak Down measuring mode (selectable)
  • 800 data memory for recall or for SPC download
  • Programmable High and Low setpoints with both audible beep and Green/ Red LED indicator for uniform torque tightening or GO/NO GO testing
  • Both CW and CCW operation
  • USB output for SPC capability
  • CW stepless one-way clutch adapter, AC charger and carrying case included.
  • Runs on internal NiCad batteries (8 hour use)
  • Ergonomic, light weight, rugged metal construction
  • ISO/IEC 17025 Long-form Certificate & Test Data is optionally available
  • 2 Year Warranty

Related Products

SW-1 Data Acquisition Software for Force Gauges & Torque Gauges


  • Full SPC and graphing capabilities
  • Automates your data collection
  • Provides a running log of all measurements along with a chart of the data as well as statistical information

More details

SW-1 Data Acquisition Software for Force Gauges & Torque Gauges

Cic-Torque Torque Instrument Calibration


  • Short turnaround
  • Easy planning of calibration

More details

Cic-Torque Torque Instrument Calibration

TWT-400 Torque Wrench Test Stand


  • The flexible design of the TWT-400 is easy to use and is suitable for various torque wrench lengths and brands
  • 3 modes of operation: Track, Peak and 1st Peak
  • Eight (8) selectable engineering units: Oz.in., Lb.in., Lb.ft., Nm, cNm, KgfCm, gfCm, Kgfm
  • Bidirectional accuracy of ±0,25% of indicated reading

More details

TWT-400 Torque Wrench Test Stand

Tension Ranges
ModelRanges Drive Size
DIW-15 3.0 – 150.0 kgf-cm
0.30 – 15.00 N-m
1/4"
DIW-20 3.0 – 200.0 kgf-cm
0.30 – 20.00 N-m
3/8"
DIW-75 3.0 - 750.0 kgf-cm
0.30 - 75.00 N-m
3/8"
DIW-120 30 - 1200 kgf-cm
3.0 - 120.0 N-m
1/2"
Accuracy ± 0.5% F.S., ±1 LSD

Specifications
Accuracy
±0.5%,Full Scale ±1 LSD
Sampling Frequency
100 Hz (100 samples/sec)
Display Update Rate
5 Hz (5 times/sec)
USB Output
180 data/sec
Memory
400 data memory for recall or for SPC download
Warranty
2 years

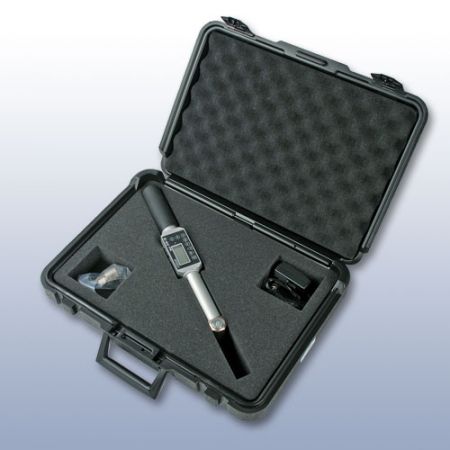

Complete Kit

The DIW-wrench comes with:

  • DIW-wrench
  • AC adapter/charger
  • 3-Point Certificate traceable to NIST
  • Hard plastic carrying case
  • Manual

(ISO-17025 - ISO/IEC 17025 Certificate is available at an additional charge)

For data export the optional SW-1SV-USB Data Acquisition Software & CB-209 USB Data Output Cable is avaialble.



Buy Now
Products

Product name
Price
Quantity
DIW-15E - DIW-15 Digital Torque Wrench - 15 Nm
€ 1.310,00
DIW-20E - DIW-20 Digital Torque Wrench - 20 Nm
€ 1.310,00
DIW-75E - DIW-75 Digital Torque Wrench - 75 Nm
€ 1.643,00
DIW-120E - DIW-120 Digital Torque Wrench - 120 Nm
€ 1.666,00

Accessories

Product name
Price
Quantity
SW-1SV-USB - Data Acquisition Software
€ 247,00
CB-209 USB Data Output Cable (for DID, DIW)
€ 25,00
ISO-17025 - ISO/IEC 17025 Certificate & Test Data
€ 217,00
DID/DIW-AC/DC - Spare / Replacement AC/DC Adapter for DID/DIW
€ 57,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request
