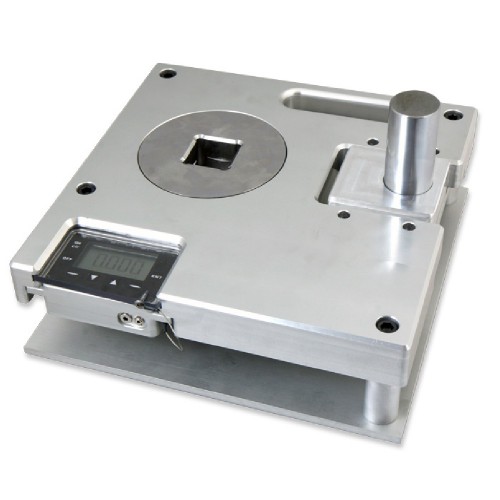

HYDP Hydraulic Torque Wrench Tester System


Made in the USAThe HYDP Torque Wrench system is designed for precision testing of high range hydraulic, pneumatic and electric torque drivers up to 25,000 Lb-ft/ 33.895 N-m.

Commonly used for testing Rad, Hytorc, Cleco, TorcUP and many other torque tool brands.

HY - series are without display
HYDP- series are with display


Features

  • Heavy Duty Construction
  • Integrated reaction arm posts or slot as required
  • 4 Digital LCD Display
  • RS-232 Data Output

Torque Ranges

Model Measuring Range Dimensions Weight
41011-HY 67.5 - 1355 Nm 20 x 20 x 35 cm6,8 kg
41012-HY 170 - 3400 Nm 30 x 30 x 35 cm9 kg
41013-HY 340 - 6800 Nm 30 x 30 x 35 cm9 kg
41014-HY 505 - 10100 Nm 30 x 30 x 35 cm11 kg
41011 67.5 - 1355 Nm 35 x 48 x 35 cm22,7 kg
41012 170 - 3400 Nm 35 x 48 x 35 cm22,7 kg
41013 340 - 6800 Nm 35 x 48 x 35 cm22,7 kg
41014 505 - 10100 Nm 35 x 48 x 35 cm22,7 kg
41015 675 - 13550 Nm 45 x 60 x 35 cm29,5 kg
41025 1700 - 34000 Nm 45 x 60 x 35 cm29,5 kg
41016 3400 - 68000 Nm 45 x 60 x 35 cm34 kg
-HY models are table stand models, all other models come on a heavy-duty rolling cart.

Related Products

AWS-4050 Digital Torque Display


  • Eight (8) available engineering units: Oz.in., Lb.in., Lb.ft., Nm, cNm, KgfCm, gfCm, Kgfm.
  • Can be calibrated to virtually any manufacturer’s strain gauge transducers.
  • Bidirectional accuracy of ±0.5% of indicated reading with AWS transducers, ±1% of indicated reading with rotary transducers.
  • 3 modes of operation: Track, Peak and 1st Peak.
  • Selectable power tool filtering speeds: 125Hz, 250Hz, 500Hz, 1000Hz, 1500Hz and 2000Hz.

More details

Series IT Bench Mounted Torque Sensor



More details


Specifications

Calibrated Range
10-100% Full Scale, bi-directional
Accuracy
±0.5% of indicated (within calibrated range)
Resolution
4 Active Digits
Overload Protection
200% Full Scale bi-directional
Operating Modes
Track, Peak, 1st Peak
Filtering
Selectable; 125Hz, 250Hz, 500Hz, 1000Hz, 1500Hz and 2000Hz
Memory
data storage of up to 999 readings
Data Output
RS-232
Display
62 x 62 mm backlit LCD
Alarm Limits
Panel Mounted LED for Visual Alarm Limits
Operating Temp
0-50 °C (32 - 120 °F)
Calibration Certificate
Includes NIST Traceable calibration certificate with data
Warranty
1 Year

Buy Now

Products


Product name
Price
Quantity
HY-41011 ,1000 Lb-Ft Test Stand, 1" F Dr, WITHOUT Display
€ 2.968,00

HY-41012 ,2500 Lb-Ft Test Stand, 1.5" F Dr, WITHOUT Display
€ 3.181,00

HY-41013 ,5000 Lb-Ft Test Stand, 1.5" F Dr, WITHOUT Display
€ 3.181,00

HY-41014 ,7500 Lb-Ft Test Stand, 1.5" F Dr, WITHOUT Display
€ 3.499,00

HYDP-41011 ,1000 Lb-Ft Test Stand, 1" F Dr, WITH Display
€ 4.560,00

HYDP-41012 ,2500 Lb-Ft Test Stand, 1.5" F Dr, WITH Display
€ 4.773,00

HYDP-41013 ,5000 Lb-Ft Test Stand, 1.5" F Dr, WITH Display
€ 4.773,00

HYDP-41014 ,7500 Lb-Ft Test Stand, 1.5" F Dr, WITH Display
€ 5.303,00

41013 - Test stand 6800 N-m with AWS-4050 Display and casters
€ 5.622,00

41014 - Test stand 10000 N-m with AWS-4050 Display and casters
€ 5.834,00

41015 - Test stand 13500 N-m with AWS-4050 Display and casters
€ 6.153,00

41025 - Test stand 34000 N-m with AWS-4050 Display and casters
€ 8.488,00

41016 - Test stand 68000 N-m with AWS-4050 Display and casters
€ 9.549,00



Accessories


Product name
Price
Quantity
AWS-4050 - Portable Torque Display with Memory
€ 1.884,00

ICBL-5000-L - Mil Spec Lemo to Lemo Connecting Cable, Torque Display to Torque T
€ 251,00

AWS-4050-ARM - Portable Torque Display with Memory and articulating arm
€ 2.221,00

41000-RD-2.5-xx Run Down Kit for 41013, 41014, 41015 Series
€ 2.487,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request
