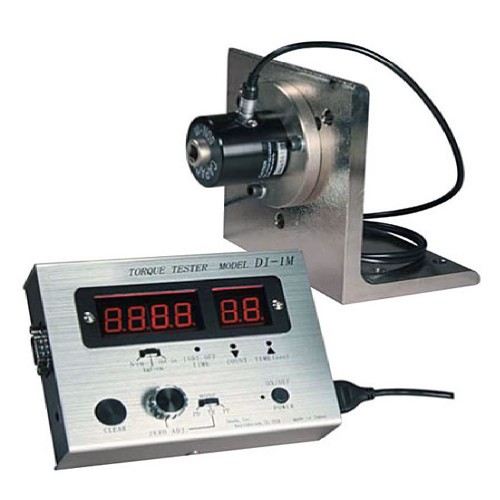

DI-1M Digital Torque Tester for Air Tools & Impact Wrenches


DI-1M torque testers are a perfect tool for on-the-spot calibration of impact drivers and air tools. It will calibrate any type of power driver. The fast response units give a digital readout of peak value in either clockwise or counterclockwise direction and also indicate the number of blows for a selected time period from 0.1 to 9.9 seconds. These instruments have an accuracy of ±0.5%, ±1 LSD and lbf-in/lbf-ft, kgf-cm/kgf-m, or N-cm/N-m units are selectable. USB output, auto zero reset, auto shutoff and low battery indicator complete the set of features. It runs on an internal NiCad battery or the included AC adapter.

Selectable modes: Peak, Real Time and Peak Down.
Peak mode captures the peak torque achieved during a test. PEAK reading will not change until a higher value is measured.
Real Time mode displays the real time transient torque value.
Peak down captures the critical first peak value and will not change even if a higher value is subsequently measured.

The DI-1M also provides peak data for SPC (statistical process control) via the USB port. Click on the link below for torque tester data acquisition software.

The DI-1M is supplied with the remote sensor, display unit, cable and AC adapter/charger.

Calibrate your own air tools and impact wrenches and save down time.

L-bracket sold separately.

NOTE: The DI-1M Torque Tester is not CE certified



Features

  • Ergonomic light weight, torque tester with heavy duty metal construction
  • Peak, Real Time and Peak Down measuring modes (selectable)
  • Easy to read LED panel displays reference torque value in lbf-ft, kgf-m and N-m (selectable); and number of blows for selected period (0.1 - 9.9 sec)
  • Accuracy: ±0.5% F.S. ±1 LSD (0-38°C or 32-100°F)
  • USB output for SPC capability (peak data only)
  • Runs on internal NiCad batteries (8 hour use)
  • 2 Year Warranty
  • Includes NIST Calibration Certificate
  • ISO/IEC 17025 Long-form Certificate & Test Data is optionally available

Tension Ranges

Model Ranges Drive Size
DI-1M-50 3.0 - 440.0 lb-in
3.0 - 500.0 kg-cm
30 - 500
3/8" Sq. Dr.
DI-1M-200A 30 - 1800 lb-in
30 - 2000 kg-cm
3.0 - 200.0
1/2" Sq. Dr.
DI-1M-200 3.0 - 145.0 lb-ft
0.30 - 20.00 kg-m
3.0 - 20
1/2" Sq. Dr.
DI-1M-500 3.0 - 362.0 lb-ft
0.30 - 50.00 kg-m
3.0 - 50
3/4" Sq. Dr.
The readings displayed may vary from the actual torque that a tool applies to a thread joint, because testers cannot always duplicate actual joint characteristics. Verify the torque output of the tool being used on the actual assembly, when critical assemblies are involved.

Dimensions

Dimensions Torque Calibration Tools DI-1M


Downloads


Complete Kit

Comes with:

  • Torque Tester Display Unit
  • Torque Sensor
  • Cable
  • AC adapter/charger
  • Units designator


Related Products

HYDP Hydraulic Torque Wrench Tester System


  • Heavy Duty Construction
  • Integrated reaction arm posts or slot as required
  • 4 Digital LCD Display
  • RS-232 Data Output

More details

TT-IMP Impact Wrench Torque Tester


  • Heavy Duty Construction
  • Solid machined aluminium plate for weight reduction and long term durability
  • Spline engagement of run-down into torque transducers improves durability of transducer
  • Test stand is designed with feet to accomodate bolting test stand to bench
  • Capacity of up to 3400 Nm
  • Complete test system ready for use

More details


Buy Now

Products


Product name
Price
Quantity
DI-1M-50 Digital Torque Tester - Requires Spring Adapter (sold separately)
€ 2.586,00

DI-1M-200A Digital Torque Tester - Requires Spring Adapter (sold separately)
€ 2.586,00

DI-1M-200 Digital Torque Tester - Requires Spring Adapter (sold separately)
€ 2.586,00

DI-1M-500 Digital Torque Tester - Requires Spring Adapter (sold separately)
€ 2.586,00



Accessories


Product name
Price
Quantity
AP-100L - L-Plate Mounting Bracket
€ 211,00

SW-1SV-USB - Data Acquiring Software for Torque Tester
€ 242,00

SS-208 USB output cable (formerly CB-208)
€ 29,00

SJ-200 - 200 in-lb Spring Adapter for DI-1M-50
€ 199,00

SJ-300 - 300 in-lb Spring Adapter for DI-1M-50
€ 199,00

SJ-500 - 500 in-lb Spring Adapter for DI-1M-200
€ 335,00

SJ-1000 - 145 ft-lb Spring Adapter for DI-1M-200
€ 335,00

SJ-2000 - 2000 in-lb / 226 N-m Spring Adapter for DI-1M-500
€ 335,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request
