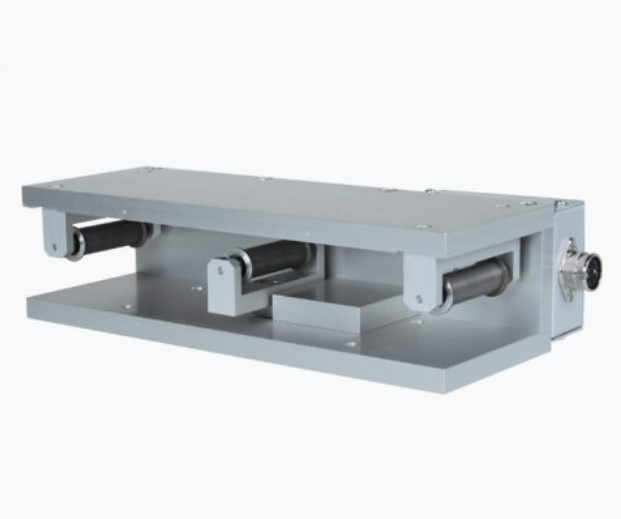

TSB2 Tension Sensor


Made in GermanyTension meter for continuous measuring low and high tensions of textile ribbons, films, foils, fibre bunches etc.

Tape rollers mounted on both sides, max. width 100 mm with several tension ranges up to 100Kg.

Tension meter is available with digital output for data processing with PC

Features
  • Dual-flanged outer guide rollers with various widths from 10 mm up to 100 mm
  • Various output signals:
    - analog (0-1V DC)
    - RS232 (optional)
    - 0-10V DC (optional)
  • Cylindrical tape roller, ball-bearing mounted
  • Integrated measuring amplifier
  • Easy calibration to customized material by operator
  • Rugged aluminum housing
  • Optionally available: Inspection Certificate 3.1 according EN 10204 with calibration report
  • Optional hand-wheel feature to open/close roller system for easy threading of material

Dimensions
Dimensions TSB2

Dimensions-2Tension Sensors TSB2

Related Products

SCD-1 Display Unit


  • Connecting sensors of series TS and FS with output signal 0 - 1 V

More details

SCD-1 Display Unit

Available Models
Model Tension Range* Roller Width (mm)
TSB2-500 0 – 500 cN 20, 30, 36, 41, 50, 100
TSB2-1000 0 – 1000 cN 20, 30, 36, 41, 50, 100
TSB2-2000 0 – 2000 cN 20, 30, 36, 41, 50, 100
TSB2-5000 0 – 5000 cN 20, 30, 36, 41, 50, 100
TSB2-10K 0 – 10 daN 15, 20, 30, 36, 41, 50, 100
TSB2-20K 0 – 20 daN 15, 20, 30, 36, 41, 50, 100
TSB2-50K 0 – 50 daN 15, 20, 30, 36, 41, 50, 100
TSB2-100K 0 – 100 daN 15, 20, 30, 36, 41, 50, 100
Other tension ranges and measuring head widths available on request.
Other measuring units available, such as g.
* Outer dimensions of front plate




Important for your order: Please specify model and roller width! Small dual-flanged outer guide rollers are standard. All 3 rollers can be equipped with one flange, if the material to be measured is wider than the rollers. Please request when you order.

Calibration to customized material:If process material differs significantly from the manufacturers calibration material in diameter, rigidity or shape, special calibration using customer supplied samples is recommended. For this purpose a material sample of about 5 m should be supplied.


Output Signal

Standard

Output signal: 0 – 1 V DC


Code A2

Output signal: 0 – 10 V DC


Code A3

Output signal: 4 – 20 mA


Code A10

Output signal: mV/V
For sensors without amplifier
incl. firmly connected cable with open ends, 2 m long


How to order

To order tension sensor TSB2:
Please indicate the complete item number:

Model with tension range Roller width in mm Code output signal (if not standard) Complete item No.
TSB2-10K + 20 + A2 = TSB2-10K-20-A2

Accessories (optional)
E10061 - Diode Plug with Bayonet Cap Diode Plug
Diode Plug suitable for sensors of TS series,
cable outlet 3.5 – 6 mm
Order number: E10061

EK0603, EK0605 and EK0610 - Connecting Cable with 2 diode plugs
Connecting cable with 2 diode plugs, for analog output and voltage signal.
For connecting the TS sensor to the display unit SCD-1.
Order number: EK0603, Length 3 m
Order number: EK0605, Length 5 m
Order number: EK0610, Length 10 m


EK0612, EK0614 and EK0615 - Connecting Cable with 1 diode plug and open ends

Connecting cable with 1 diode plug and open ends, for analog output and current signal.
For connecting sensors of TS series to the display unit SC-PM.
Order number: EK0612, Length 3 m
Order number: EK0614, Length 5 m
Order number: EK0615, Length 10 m

Other cable length available on request!



Tape Rollers
Order-code Line Speed vmax. … m/min Roller Material
15 1000 Aluminium hardcoated
20 1000 Aluminium hardcoated
30 1000 Aluminium hardcoated
36 1000 Aluminium hardcoated
41 1000 Aluminium hardcoated
50 1000 Aluminium hardcoated
100 1000 Aluminium hardcoated

Downloads

Specifications
Accuracy ±1 % full scale ±1 digit other calibration material: ±3 % full scale or better
Overload protection 100% of tension range
Measuring roller deflection Max. 0.5 mm
Measuring principle Strain gauge bridge
Natural frequency Approx. 500 Hz, depending on tension range
Temperature drift less than ±0.05 % fullscale/ºC
Output signal Standard: 0 - 1 V DC (analog) impedance: ≥ 5 kΩ
Option: 0 - 10 V DC (analog), or 4-20 mA (current) digital RS 232
Signal processing: Analog (option: digital)
Damping (fg) Standard: 30 Hz (other values on request)
Temperature range 10 - 45 ºC
Air humidity 85 % RH, max.
Power supply +12 - 24 V DC, max. 50 mA regulated
Housing material Aluminium
Weight, net (gross) E. g. model TSB2-2000-50 approx. 1000g (1400 g)

Complete Kit

If sensor is ordered only: 1 diode male plug without connecting cable

If sensor and display unit is ordered: 1 connecting cable, tension sensor with packaging, operating instructions, and Certificate of Compliance with the order 2.1 according EN 10204 free of charge
