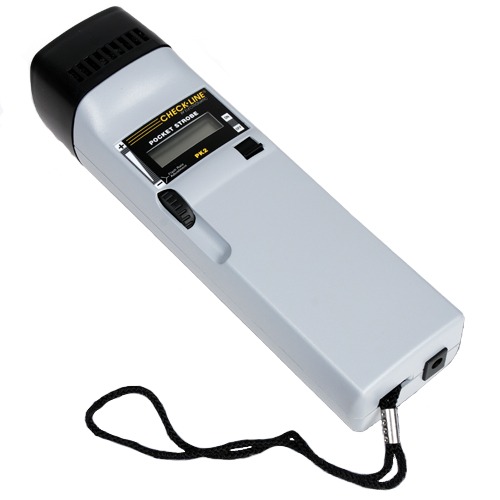

PK2X Stroboscope - Portable Pocket-Size Xenon Strobe


Made in Germanystroboscope

The PK2X hand-held Pocket Strobe®, a non contact RPM measuring device for rotating and moving parts.

Convenient and accuratly designed to perform non-contact RPM measurements on rotating or reciprocating parts or components.
This stroboscopic effect is accomplished by matching the flash rate of the stroboscope with the repetitive rate (RPM) of motion of the target.

The PK2X is also a proven means for inspection of moving parts/machinery by "freezing"or "slowing down" the movement. Measuring a slow motion effect is accomplished with a slight mismatch of the relative speeds.?

The PK2X stroboscope is powered by a rechargeable internal battery or an external AC power source allowing for continuous use if necessary, or continued use when the battery power level is low. The lightweight handheld design makes this stroboscope perfect for use by field (service) technicians or maintenance personnel.

The PK2X offers significant improvements from the previous generation model PK2 including the following:
  • 50% improvement in flash brightness
  • 100% improvement in battery run-time
  • Doubles the choice of power by permitting operation during re-charge or continuous operation when connected to an AC-power source

The PK2X continues to offer the highest reliability, refined by over 10-years of continuous design & manufacturing improvements since the introduction of the original Pocket Strobe Model PK1 was introduced in 1996.

The PK2X stroboscope can be operated with only one hand, yet delivers performance comparable to much larger and heavier “pistol-grip” type models. It is ideal for laboratory, industrial, R&D and academic environments. Its small size and excellent performance provide superior convenience and value.

The kit includes aUniversal AC-Adapter/Charger and External Trigger Jack in Carrying Case with Traceable Calibration Certificate.
Features Internal rechargeable Lithium Ion battery uses latest "smart-charge" technology for longest possible life and 2-Hour run-time on a single charge.
The PK2X can be mounted on a tripod.

PK2X
Flash range 30 - 12.500 RPM/FPM
and higher using harmonics


Features
  • Battery run time of 2 hours on full charge
  • Operates when being recharged or run continuously via AC-power
  • Internal rechargeable Lithium Ion battery uses latest “smart-charge” technology for longest possible life and 2-Hour run-time on a single charge
  • Includes Int'l Traceable Calibration Certificate
  • Portable, lightweight and rugged construction
  • Accepts input from sensor for external flash triggering
  • Resolution of ±1 RPM over the entire range with highly accurate speed control and drift-free operation
  • Bright XENON flash intensity (over 1200 Lux) with life of 200 million flashes
  • Provided with a threaded insert on underside of strobe for mounting to articulating arm or other fixture
  • AC-Adapter/Charger can be used anywhere worldwide
    (100 – 240V AC) with plug adapters provided for N. America, Europe, UK & Australia AC outlets
  • CE Certified

Complete Kit
Includes Stroboscope, Universal AC-Adapter/Charger (with plug adapters provided for North America, Europe, UK & AU), external input/output jack, Traceable Calibration Certificate and instruction manual, all supplied in a hard shell carrying case.

Accessories
PK2X-TBE Spare Xenon Flash Tube
PK2-HLT Padded-vinyl & leather belt-clip holster
PK2-PHONO Connection jack for external
trigger input signal
PK2-TRI Telescoping tripod
PK2-BNC External triggering cable; 6 ft. long;
1/8" male to BNC male connections
PK2-8M External triggering cable; 6 ft. long;
1/8" male to 1/8" male connections
PK2X-BAT Replacement Li-Ion Battery Pack
PK2X-AC-BC Replacement Universal Battery
Charger (100-240 VAC)

Downloads

Dimensions
Dimensions Stroboscopes PK2X


Specifications
Flash Range
30 - 12,500 FPM
Flash Brightness
1200 Lux (8"/20cm distance @ 4500 fpm)
Accuracy
± 0.01% over entire range + 1 LSD
± 0.04 Hz
Resolution
± 1 FPM over entire range
Display
5-digit LCD
Display Update
0.5 seconds
Flash Energy
170 mJ
Flash Duration
< 9 µs
Flash Tube Longevity
200 million flashes (at 6,000 fpm)
Flash Color Temp
6000K - 6500K
External Trigger
0-5 volt, DTL/TTL compatible 1/8" jack
Operating Time
Battery, 2 hours
AC-Power, continuous
Battery Type
Lithium Ion (Li-Ion)
Battery Charger
AC Power Required - 100-240 VAC, 50/60 Hz
DC-Output, 9 VDC @ 2000 mA max
Charging Time, 4-5 hours
Overcharge Protection
Yes
CE Certification
Yes
Weight
0.9 lbs (415 grams) including battery
Housing Material
High Impact ABS Plastic
Reflector Material
Aluminum
Tripod Mount
1/4-20, female insert
Operating Temp.
32 to 104° F (0 to 40° C)
Dimensions:
240 x 65 x 40mm (LxWxH)
Warranty
1 year

Related Products

PK2X-OT Pocket Stroboscope With Output Signal


  • Internal rechargeable Lithium Ion battery uses latest “smart-charge” technology for longest possible life and 2-Hour run-time on a single charge
  • Operates when being recharged or run continuously via AC-power
  • Accepts input from sensor for external flash triggering

More details

PK2X-OT Pocket Stroboscope With Output Signal

PK2X-TBE Xenon Flash Tube


  • Xenon Flash Tube

More details

PK2X-TBE Xenon Flash Tube

PK2-HLT Padded-vinyl & leather belt-clip holster


  • Belt-clip holster

More details

PK2-HLT Padded-vinyl & leather belt-clip holster

PK2-TRI Telescoping tripod


  • Telescoping tripod

More details

PK2-TRI Telescoping tripod

PK2X-BAT Lithium Ion Battery Pack


  • Lithium Ion Battery Pack

More details

PK2X-BAT Lithium Ion Battery Pack

PK2X-AC-BC Universal AC-Adapter/Charger


  • Universal AC-Adapter/Charger

More details

PK2X-AC-BC Universal AC-Adapter/Charger

PK2-BNC External triggering cable for strobscopes


  • External triggering cable for strobscopes

More details

PK2-BNC External triggering cable for strobscopes

PK2-8M External triggering cable


  • External triggering cable

More details

PK2-8M External triggering cable

Buy Now
Product

Product name
Price
Quantity
PK2X Complete kit
€ 599,00

Accessories

Product name
Price
Quantity
PK2X-TBE - Spare Flash tube
€ 60,00
PK2-HLT - Holster for PK2X
€ 25,00
PK2-PHONO - Connection jack for external trigger input signal
€ 2,50
PK2-TRI - Tripod for PK2 strobe
€ 60,00
PK2X-BAT - Replacement Battery Pack
€ 90,00
PK2X-AC-BC - Replacement Universal Battery Charger (100-240 VAC)
€ 87,00
PK2-BNC - External triggering cable; 1.8m; 1/8" male to BNC male connections
€ 45,00
PK2-8M - External triggering cable; 6 ft. long; 1/8" male to 1/8" male connections
€ 45,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request
