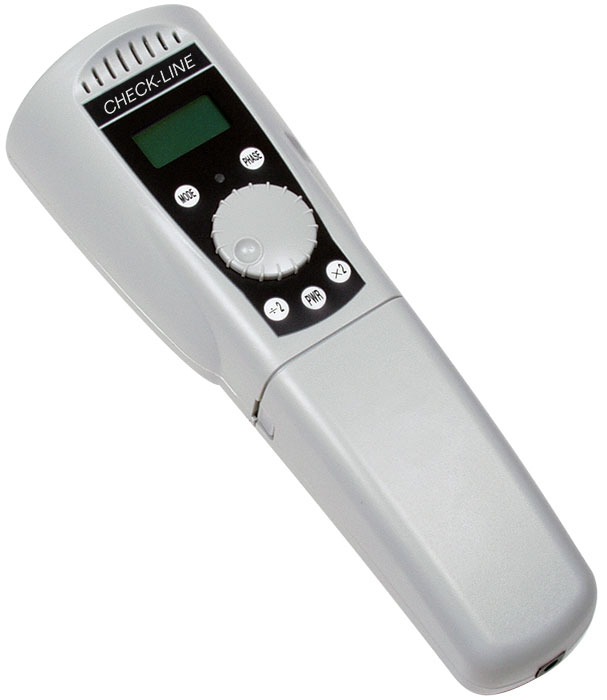

DT-900 Digital Pocket Stroboscope


Flash Rate: 30 - 12.500 RPM/FPM
and higher using harmonics

The DT-900 pocket stroboscope is a highly stable instrument for taking non-contact RPM measurements and inspecting moving parts by “freezing” or “slowing down” the action.

The gauge requires only one hand to operate, yet delivers performance comparable to much larger and heavier “pistol-grip” type models.

The DT-900 is ideal for industrial, laboratory, R&D and academic environments. Its small size and excellent performance provide superior convenience and value — at a reasonable price.


Features

  • Easy to use with just one hand.
  • "LOW BAT"appears in the display if the energy becomes less.
  • Resolution of 0,1 Flashes per minute.
  • The changeable NiMH battery powers the stroboscope 2-2,5 hours.
  • NIST-Traceable calibration certificate & test report optionally available
  • "Universal" Battery Charger is supplied on "-UT" and "-UP" versions for use anywhere Worldwide on 100-265 VAC

Complete Kit

The DT-900 can be ordered as 2 different kits including the following:

DT-900-UT Stoboscope Kit:
- DT-900 stroboscope
- Battery Pack
- Spare Flash Tube
- Universal Charger
- User Manual
- Foam Fitted Carrying Case

DT-900-UP Stroboscope Kit:
- DT-900 stroboscope
- Battery Pack
- Holster
- Spare Battery Pack
- Spare Flash Tube
- Universal Charger
- User Manual
- Foam Fitted Carrying Case


Accessories

DT-900-BAT


  • Additional rechargeable NiMH battery for the DT-900
  • Especially for those who constantly use the stroboscope, because the battery pack may be charged, only after is has been removed from the main instrument.

More details

DT-900-TBE


  • Flash Tube for SMS-400B and DT-900 Stroboscopes

More details

DT-900-BCU


  • Charger for SMS-400B and DT-900 Stroboscopes

More details

PK2-HLT


  • Belt-clip holster

More details



Holster

Holster

An optional holster is available for carrying the stroboscope on your belt.


Specifications

Flash Range:
30 - 12.500 fpm
Accuracy:
± 0.01%
Resolution:
0.1 fpm
Operation modes:
Flashes with internal trigger
FLashes with external trigger
Tachometer
Display:
8 digits, 15 mm high
Flashtube:
Xenon 10 W / white 6500 K
Flashlength:
10 - 15 µs / approx. 400 lux (at 50cm, 6.000 fpm, D=10cm)
Flash durability:
100 mill. flashes
Phase Shift:
5° per increment (360°)
Input signal:
0.25 - 983.3 Hz
Output signal:
0.667 - 108.333 Hz
Extern trigger:
5 V TTL Signal
Power:
100- 240 V DC changeable battery
Housing:
Polycarbonate
Tripod mounting:
1/4 - 20unc, length 8 mm
Weight:
620 gr (1.4 lbs)
Temperature range:
50 - 95° F (10 - 35° C)
Dimensions:
24,5 cm x 6,5 cm x 8 cm (9,6" x 2,6" x 3,1")
Warranty:
1 year

Buy Now

Products


Product name
Price
Quantity
DT-900-UT - Includes Strobe, battery, spare flash tube, holster & battery ch
€ 702,00

DT-900-UP - Includes Strobe, battery, spare battery, flash tube, holster, case
€ 877,00



Accessories


Product name
Price
Quantity
DT-900-TBE - Spare Flash Tube for DT-900
€ 52,00

DT-900-BAT - Spare battery for DT-900
€ 244,00

DT-900-CC - Spare Carrying Case for DT-900
€ 83,00

PK2-PHONO - Connection jack plug for DT-900
€ 2,50

DT-900-BCU Universal Charger for DT-900 Strobe
€ 60,00

DT-900-PBH - Padded Belt Holster for DT-900
€ 42,00

DT-900-CAL - NIST-Traceable Calibration Certificate/Report
€ 99,00

All mentioned prices are excluding VAT & excluding shipment costs.
