TTS Torque software for data collection & analysis


Made in the USAThe TTS software has been designed to be used with out TT-Series torque calibration tools. It quickly connects to TT-QC, TT-QCM, TT-IMP, TT-3000, TT-HY, MTM and AWS-4050 torque testers through a serial or USB Cable. This software facilitates the display, collection, archiving and processing of torque readings.

Two versions available:

TTS-SOFT

TTS-SOFT is the basic software version, with basic features and easy to use. It can display live readings and readings can be transferred to an Excel spread sheet or Word document in real time.

TTS-SC

TTS-SC is the advanced software version, it includes all features of the TTS-Soft software  but additionally can automatically launch Excel for further data analysis, reporting and archiving.

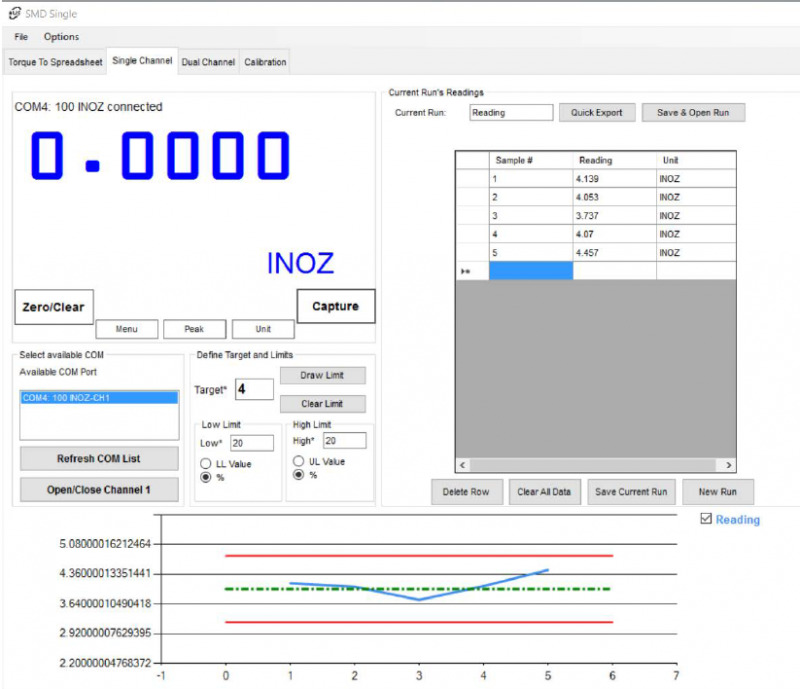

The TTS-SC allows the user to define Target, Low Limit, and High Limit. This option populates captured Readings into the graph using the defined Target and Limits.
Exporting to Excel will also automatically place the graph into the spreadsheet.

Platform Requirements:

  • Windows 7/8/10.
  • Microsoft Excel is required for Exporting Readings and Graphing Function.
  • Requires at least 1080p Resolution (1920 x 1080)

Features
  • Shows Live Reading and Measurement Units of the Tester Connected.
  • Direct Export to Microsoft Excel
  • For use with TT-Series Torque Tool Testers
  • Includes Mini Plug to USB Cable
  • Compatible with Windows 7, 8 and 10
  • Allows the user to define Target, Low Limit, and High Limit (TTS-SC)
  • Overlay Mulitple Test Results on a Graph (TTS-SC)

Related Products

TTS-SC Software for data collection & analysis


  • Shows Live Reading and Measurement Units of the Tester Connected.
  • Direct Export to Microsoft Excel
  • For use with TT-Series Torque Tool Testers

More details

TTS-SC Software for data collection & analysis

TT-QCM Torque Tool Tester


  • Bidirectional accuracy of ± 0.5% of indicated reading (± 0.25% is optional)
  • 3 modes of operation: Track, Peak and 1st Peak
  • Eight (8) selectable engineering units: Oz.in., Lb.in., Lb.ft., Nm, cNm, KgfCm, gfCm, Kgfm

More details

TT-QCM Torque Tool Tester

TT-QC Torque Tool Tester


  • Bidirectional accuracy of ±1% of indicated reading
  • 3 modes of operation: Track, Peak and 1st Peak
  • Eight (8) selectable engineering units: Oz.in., Lb.in., Lb.ft., Nm, cNm, KgfCm, gfCm, Kgfm

More details

TT-QC Torque Tool Tester

TT-IMP Impact Wrench Torque Tester


  • Heavy Duty Construction
  • Solid machined aluminium plate for weight reduction and long term durability
  • Spline engagement of run-down into torque transducers improves durability of transducer

More details

TT-IMP Impact Wrench Torque Tester

TWT-400 Torque Wrench Test Stand


  • The flexible design of the TWT-400 is easy to use and is suitable for various torque wrench lengths and brands
  • 3 modes of operation: Track, Peak and 1st Peak
  • Eight (8) selectable engineering units: Oz.in., Lb.in., Lb.ft., Nm, cNm, KgfCm, gfCm, Kgfm
  • Bidirectional accuracy of ±0,25% of indicated reading

More details

TWT-400 Torque Wrench Test Stand

Datasheet

Buy Now
Products

Product
Price
Quantity
TTS-SOFT Software for TT-Series with cable
€ 199,00
TTS-SC Advanced Software for TT-Series with cable
€ 330,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request
