CDT-1000-HD Non-Contact Tachometer

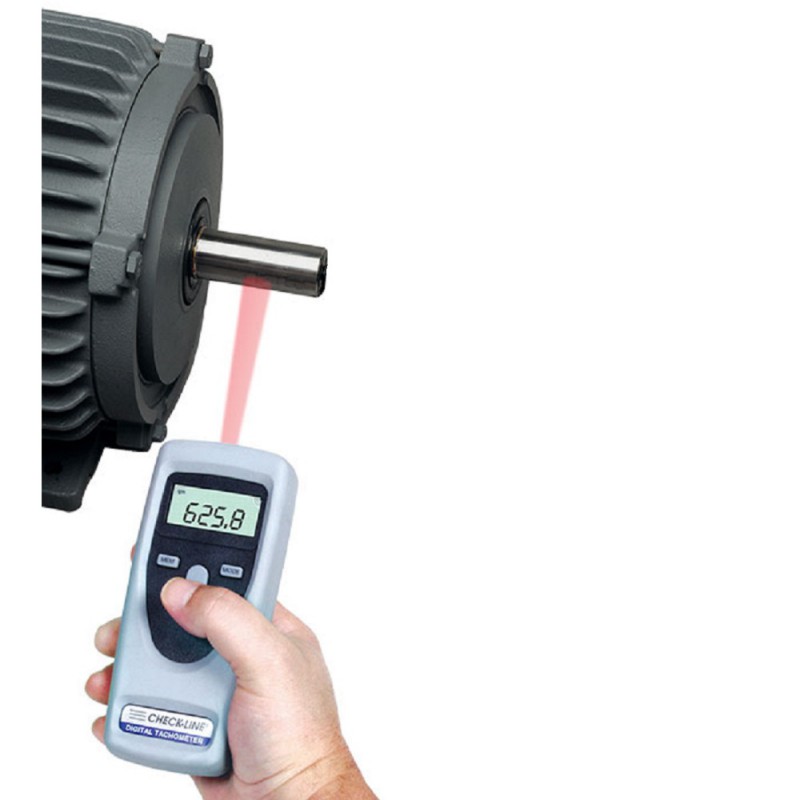

Made in GermanyThe CDT-1000 Hand-Held Digital Tachometer accurately measures rotational speed (RPM) using a visible beam of light. The CDT-1000 can be up to 14 inches away from the small piece of reflective tape that is affixed to the rotating element.

The CDT-1000's rugged construction, portability and outstanding features make It an ideal choice for maintenance personnel, machine operators or others in a wide variety of machinery and material handling applications.

A combination Contact & Non-Contact model, the CDT-2000HD, is also available.



Features
  • Accuracy of 0.02% with a resolution of 0.01 RPM
  • Non-contact sensing from up to 24" with visible red light source
  • Measures speeds from as low as 1.00 rpm up to 99,999 rpm
  • NIST Certification included at no additional cost
  • Five (5) year warranty!!
  • Built-in memory stores maximum, minimum and last reading for recall to the the display
  • Uses only two (2) AA batteries (included)
  • Rugged lightweight design for trouble-free operation
  • New - Molded Rubber Shell Provides Additional Physical & Environmental Protection

LCD Display

Units of Measure Indicators show the user-selected units of measure.

Low Battery Indicator alerts the operator if the batteries are low.

On-Target Indicator confirms that the measurements are reliable.

Memory Indicators are illuminated when the maximum, minimum and last readings are recalled to the display for viewing.
LCD Display CDT-1000-HD


Complete Kit
The CDT-1000HD complete kit includes:
  • the Tachometer
  • Reflective Tape
  • Two (2) AA Batteries (1.5 V)
  • Operating Instruction Manual and Traceable certificate -- all supplied in a foam-fitted
  • hard-plastic Carrying Case.


Related Products

CDT-2000HD Contact and Non-Contact Digital Tachometer


  • Built-in memory stores maximum, minimum, average and last reading for recall to the display
  • Measures speeds from as low as 1.00 rpm up to 99,999 rpm
  • NEW - Molded Rubber Shell Provides Additional Physical & Environmental Protection

More details

CDT-2000HD Contact and Non-Contact Digital Tachometer

Dimensions
Dimensions-CDT-1000-HD


Specifications
Measuring Range:1.00 - 99,999 rpm
Resolution:.01 from 0 - 100
.1 from 100 - 1,000
1 from 1000 - 99,999
Accuracy:± 0.02% of reading or 0.01 digit (under 50)
Display:5 - Digit LCD, 10mm high
Decimal Point:Automatic
Memory sistemMaximum, minimum, and last reading (retained in memory for the life of the batteries)
Measurement System:Visible LED light beam
Sensing Distance:Up to 24 inches (60 cm)
Display Update Time:0.5 seconds or one measuring
Auto Power Off:After 30 seconds of non-use (minimum, maximum and last reading retained in memory)
Battery Life:40 hours continuous use
Battery:2 AA (1.5 V) or rechargeable
Weight:6 ounces (170 grams)
Housing Material:ABS Plastic housing with removable protective rubber shell
Operating Temperature:32 to 122º F (0 to 50º C)
Storage Temperature:-4 to 150º F (-20 to 70º C)
Accessories included:10 Strips of 1/2 x 4 inch reflective tape
Warranty:5 years
Calibration Certificate:Included
